STONEX R2 User Manual

STONEX R2
89

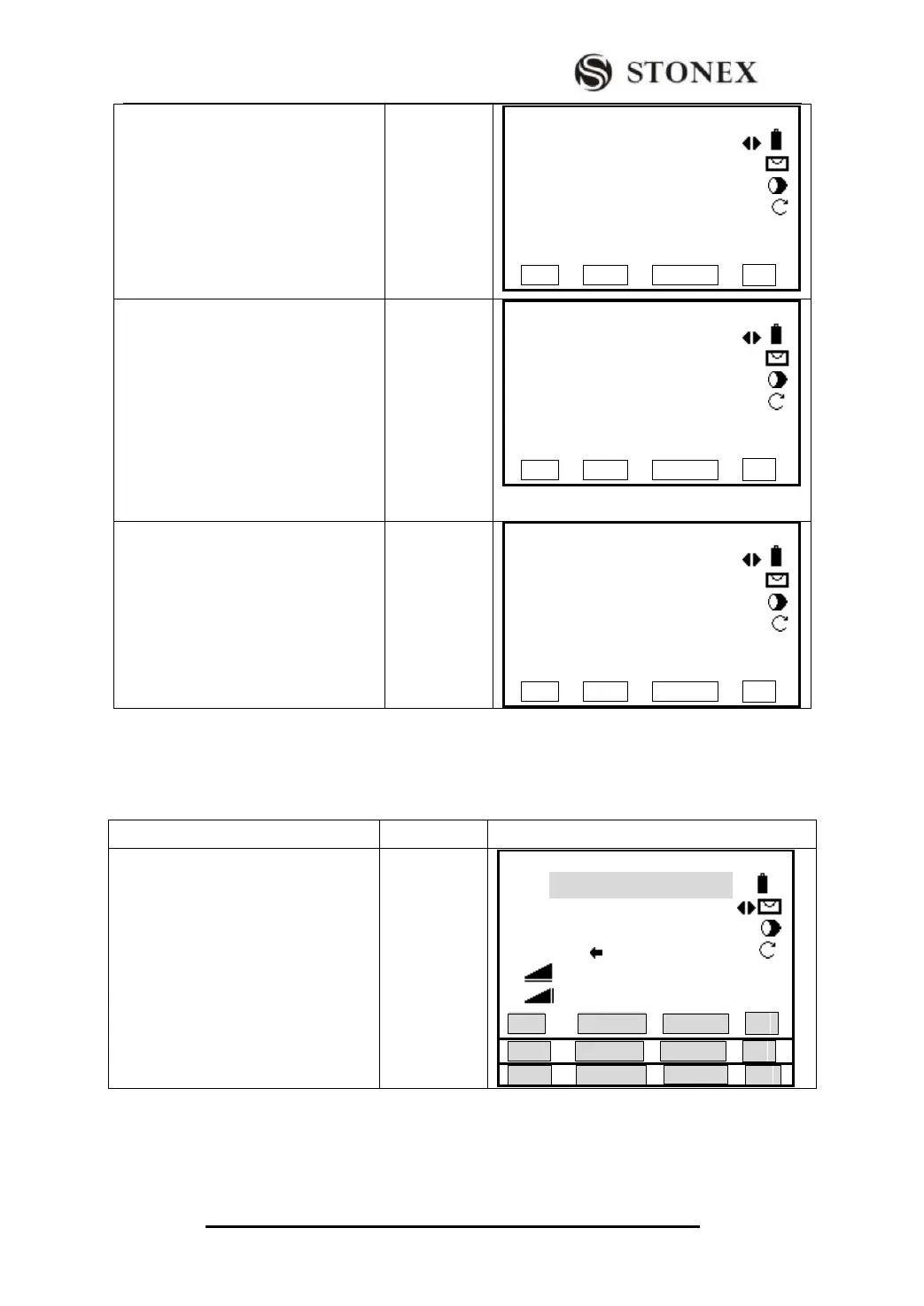

⑤ Northing the prism on N direction
until △X/N displays 0 m.
When △X/N is positive, it means the
stake-out point is further. Move the
prism further from the station.
When △X/N is negative, move the
prism closer to station.
【Stake Out 】 3/3 ▼
PtID ： 6
Type： Meas.
R.HT ： 2.000 m
△X/N： 0.000 m
△Y/E: 0.000 m Ⅰ
△H ： 0.396 m
All DIST RECORD ↓
⑥ When both △ Y/E and △ X/N
display 0 m, it implies that the current
prism point is the stake-out point.
△ H means the fill/dig data.
△H is positive: To fill. The value is
the height to fill.
△H is negative: To dig. The value is
the depth to dig.
【Stake Out 】 3/3 ▼
PtID ： 6
Type： Meas.
R.HT ： 2.000 m
△X/N： 0.000 m
△Y/E: 0.000 m Ⅰ
△H ： 0.396 m
All DIST RECORD ↓
⑦ Stake-out of point is finished.
Continue to select the next point to be
staked out. (Or call up the existed PtID
in the job via Pt Search function.)
【Stake Out 】 3/3 ▼
PtID ： 7
Type： Meas.
R.HT ： 2.000 m
△X/N： ---.--- m
△Y/E: ---.--- m Ⅰ
△H ： ---.--- m
All DIST RECORD ↓
5.6.5 B & D
Press [B&D]; input the elements of polar stake-out: azimuth and horizontal distance.
After inputting, you can start to stake out the azimuth and horizontal distance you input.
OPERATIONAL STEPS
OPERATION
DISPLAY
①Press [F4] (↓) twice to turn to Page
3 of keys.
[F4]
【Stake Out 】 1/3 ▼
Find: *
PtID： 5
Type： Known
△Hz ： -85°51′31″
△ ： 2.055 m Ⅰ
△ ： ---.--- m
All DIST RECORD ↓
VIEW EDM ENH ↓
B&D MANUAL |←
