5-2 BRAKES
General Description
When the foot brake pedal is depressed, hydraulic pressure is developed in the master cylinder to actuate pis-
tons (two in front and four in rear).
The master cylinder is a tandem master cylinder. Brake pipes are connected to the master cylinder and they
make two independent circuits. One connects front right & rear left brakes and the other connects front left &
rear right brakes.
The load sensing proportioning valve (LSPV) is included in these circuits between the master cylinder and the
rear brake for the vehicle without ABS.
In this brake system, the disc brake type is used for the front wheel brake and a drum brake type (leading / trail-
ing shoes) for the rear brake.
The parking brake system is mechanical. It applies brake force to only rear wheels by means of the cable and
mechanical linkage system. The same brake shoes are used for both parking and foot brakes.

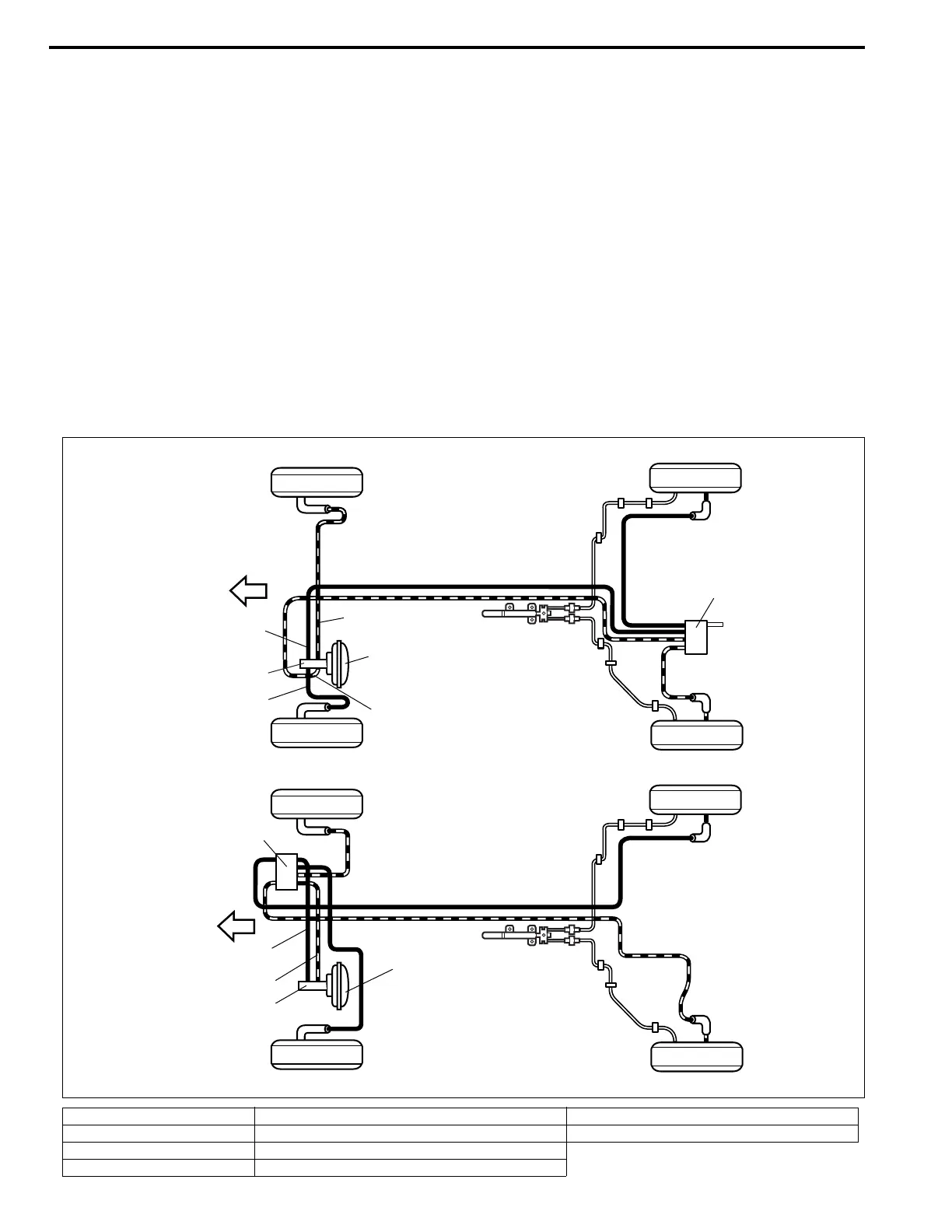

NOTE:
The figures shows left-hand steering vehicle.
The figure for right-hand steering vehicle should be symmetrical.
[A]: For vehicle without ABS 3. Secondary side 7. LSPV (Load Sensing Proportioning Valve)
[B]: For vehicle with ABS 4. Primary side 8. Forward
1. Brake booster 5. Blank
2. Master cylinder 6. ABS hydraulic unit / control module assembly
[A]
[B]
6
8
3
3
3
4
4
4
2
1
8
1
7
2
