Suzuki Wagon R Plus RB310 - Timing Chain Cover Removal and Installation

ENGINE MECHANICAL (M13 ENGINE) 6A2-35
Timing Chain Cover Removal and Installation
Removal
1) Remove engine assembly from vehicle referring to “Engine
Assembly Removal and Installation” in this section.

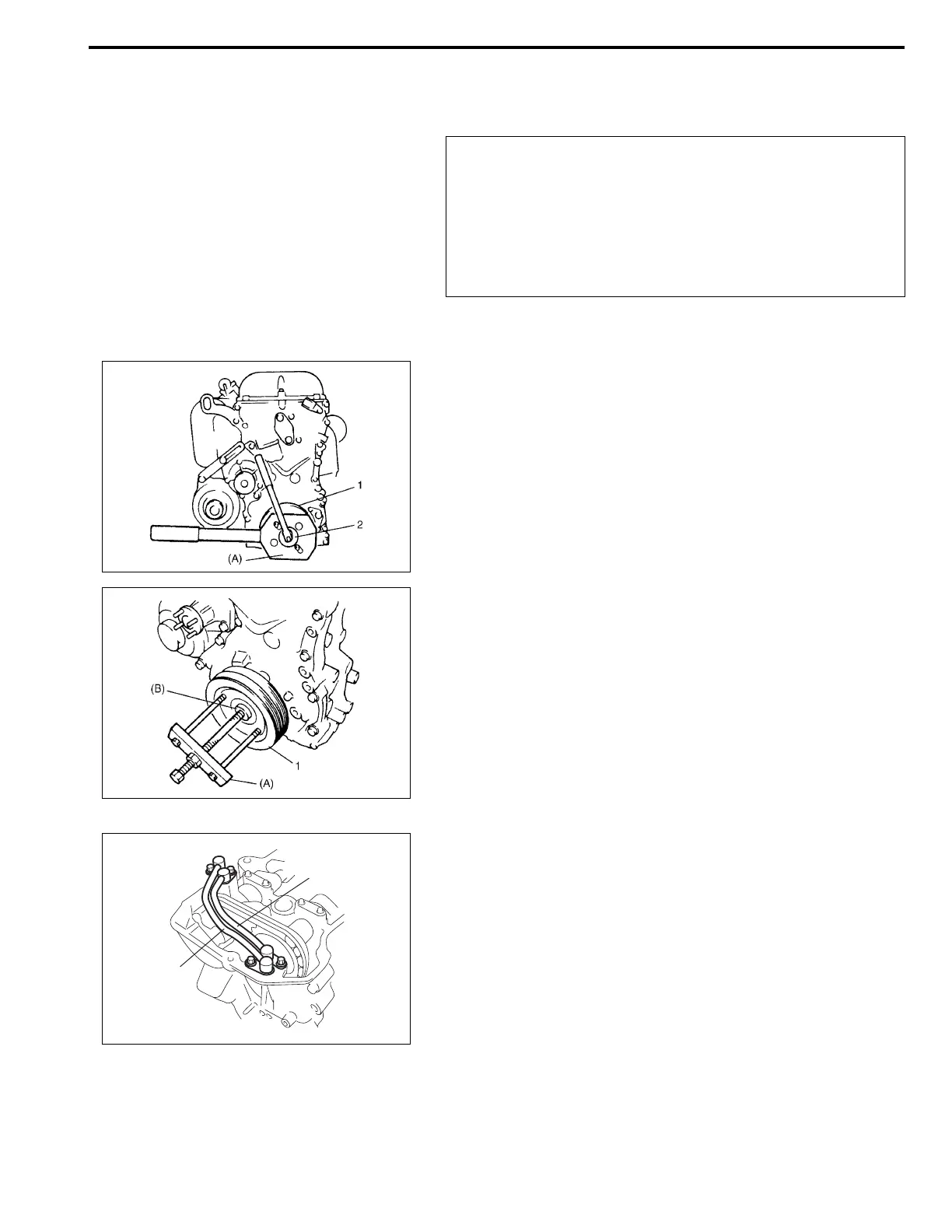

2) Remove crankshaft pulley bolt (2).
To lock crankshaft pulley (1), use special tool with it as
shown in figure.
Special tool
(A): 09917-68221
3) Remove crankshaft pulley (1).
If it is hard to remove, use special tools as shown in figure.
Special tool
(A): 09944-36011
(B): 09926-58010
4) Remove cylinder head cover referring to “Cylinder Head
Cover Removal and Installation” in this section.
5) Remove oil pan referring to “Oil Pan and Oil Pump Strainer
Removal and Installation” in this section.
6) Remove water pump pulley.
7) Remove oil gallery pipes No.2 (1) and No.3 (2).
CAUTION:
• Keep working table, tools and hands clean while over-
hauling.
• Use special care to handle aluminum parts so as not to
damage them.
• Do not expose removed parts to dust. Keep them
always clean.
1
2
