7A2-14 MANUAL TRANSAXLE (M13 ENGINE)
Transaxle Unit Dismounting and Remounting
Dismounting
Under hood
1) Disconnect negative cable at battery.
2) Undo wiring harness clamps, disconnect backup lamp switch
coupler, VSS coupler and ground cable.
3) Disconnect clutch cable from clutch release lever and
bracket.
4) Disconnect gear shift and select control cables.
5) Remove transaxle control cable bracket.
6) Remove water pipe bracket bolts from transaxle.

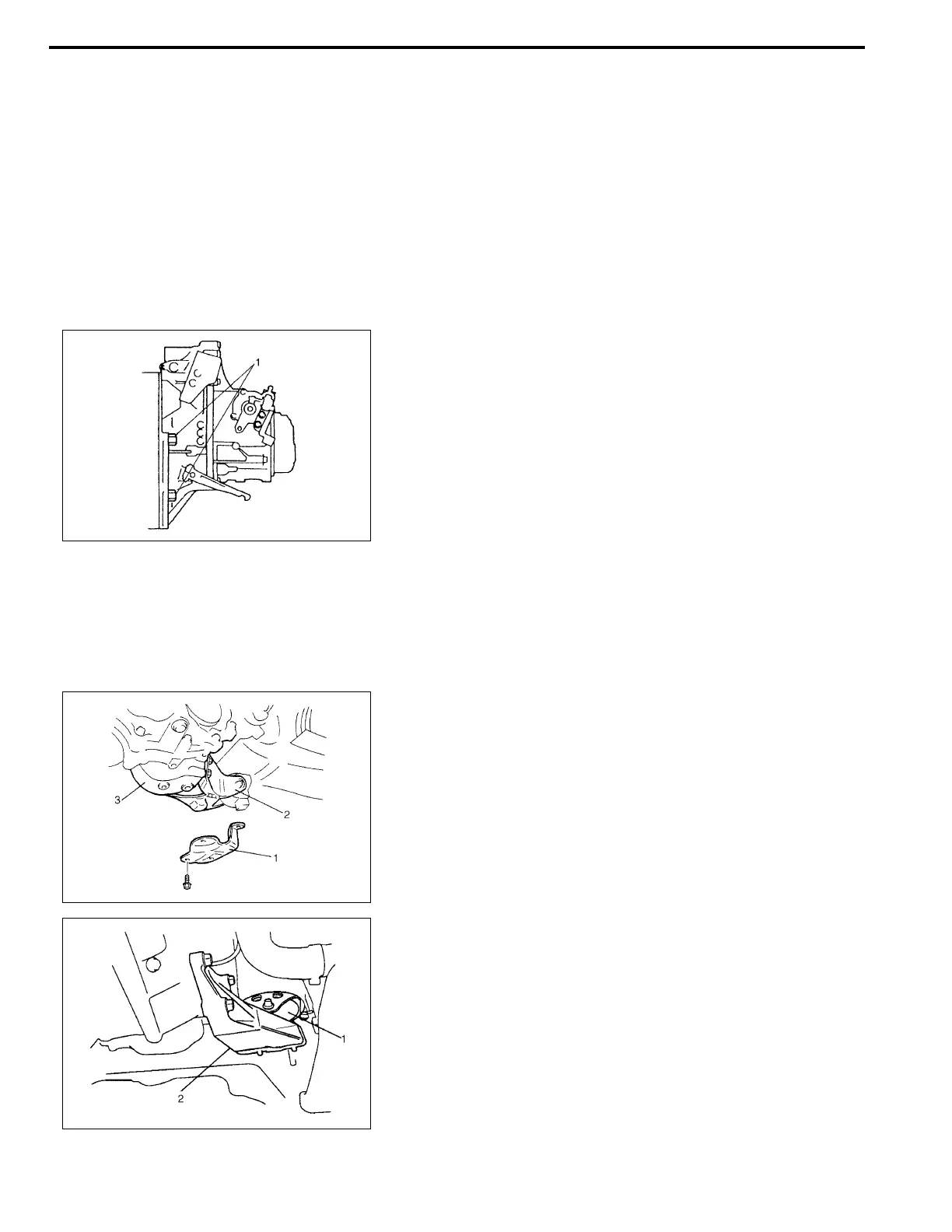

7) Remove transaxle to engine bolts (1).
8) Remove starting motor referring to “Starting Motor Dis-
mounting and Remounting” in Section 6G.
9) Support engine by using lifting device.
On lift
10) Drain transaxle oil referring to “Manual Transaxle Oil
Change” in this section.
11) Remove front drive shafts referring to “Front Drive Shaft
Assembly Removal and Installation” in Section 4A.
12) Remove left side of engine under cover.
13) Remove engine rear mounting bracket stiffener (1).
14) Remove clutch housing lower plate.
15) Remove engine rear mounting No.1 bracket (2) with No.2
bracket (3).
16) Remove transfer referring to “Transfer Dismounting and
Remounting” in Section 7D, if equipped.
17) Remove transaxle to engine bolts and nut.
18) Lower vehicle and support transaxle with transaxle jack.
19) Remove engine left mounting (1) with bracket (2).
20) Remove other attached parts from transaxle, if any.
21) Pull transaxle out so as to disconnect input shaft from clutch
disc and then lower it.
