6F2-10 IGNITION SYSTEM (M13 ENGINE)
Ignition Coil Assembly (Including Ignitor)
Removal and Installation
Removal
1) Disconnect negative cable at battery.
2) Remove air cleaner assembly with air intake pipe and cylin-
der head upper cover.
3) Disconnect ignition coil coupler.

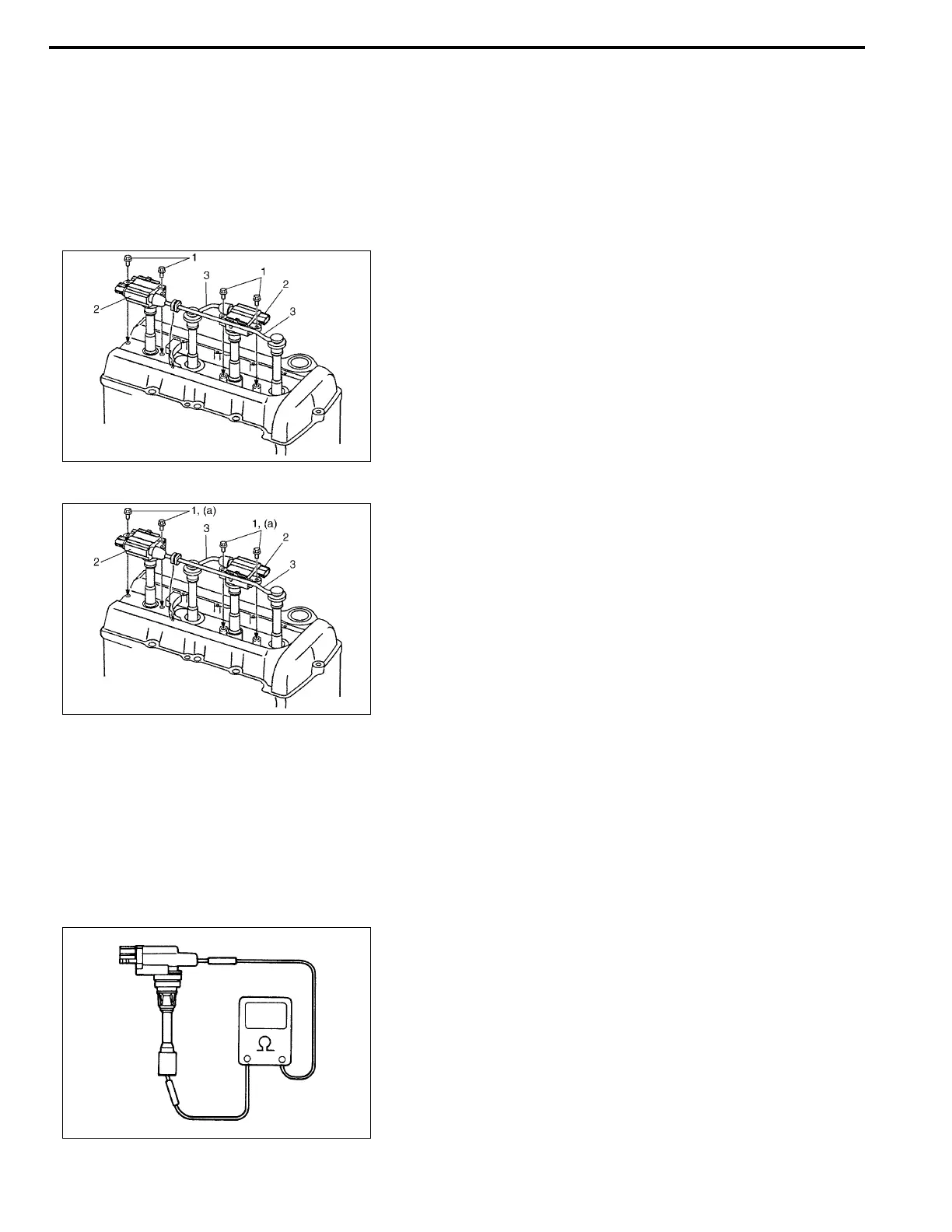

4) Disconnect high-tension cord (3) from ignition coil assembly
(2).
5) Remove ignition coil bolts (1) and then pull out ignition coil
assembly.
Installation
1) Install ignition coil assembly (2).
2) Tighten ignition coil bolts (1) to specified torque, and then
connect ignition coil coupler.
Tightening torque
Ignition coil bolt (a): 10 N·m (1.0 kg-m, 7.5 lb-ft)
3) Install high-tension cord (3) to ignition coil assembly while
gripping its cap.
4) Install cylinder head upper cover and air cleaner assembly
with air intake pipe.
5) Connect negative cable to battery.
Ignition Coil Assembly (Including Ignitor)
Inspection
Measure secondary coil for resistance.
If resistance is out of specification, replace ignition coil assembly.
Secondary coil resistance
7.1 – 9.5 k
Ω
at 20°C, 68°F
