ENGINE AND EMISSION CONTROL SYSTEM (M13 ENGINE) 6E2-9

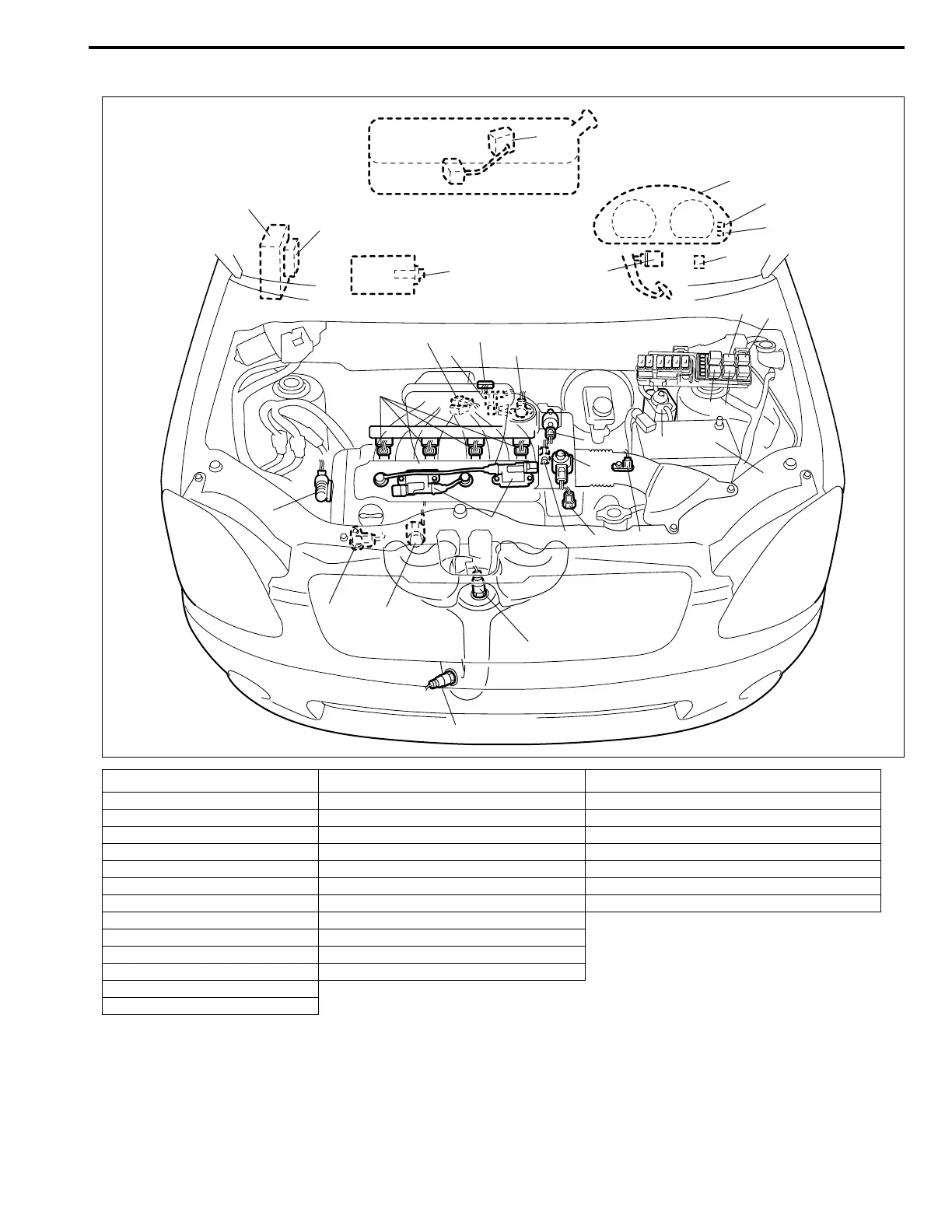

Electronic Control System Component Location
INFORMATION SENSORS CONTROL DEVICES OTHERS
1. MAF and IAT sensor a: Fuel injector A: ECM
2. TP sensor b: EVAP canister purge valve B: Combination meter
3. Stop lamp switch c: Fuel pump relay C: EVAP canister
4. ECT sensor d: EGR valve D: A/C evaporator outlet air temp. sensor (if equipped)
5. Heated oxygen sensor–1 e: Malfunction indicator lamp E: Data link connector
5-1. Heated oxygen sensor–2 f: Radiator fan relay F: A/C compressor relay (if equipped)
6. VSS g: IAC valve G: TCM (A/T)
7. Battery h: Ignition coil assembly (with ignitor)
8. CMP sensor i: Main relay
9. MAP sensor j: Oil control valve
10. CKP sensor k: Immobilizer indicator lamp
11. Fuel level sensor
12. Knock sensor
j
10
12
h
5
8
4
6
7
g
a
9
b
1
2
D*
k
3*
e
B*
E*
11
A*
G*
5-1
d
C
i
F
c
f
NOTE:
Above figure shows left-hand steering vehicle. For right-hand steering vehicle, parts with (*) are
installed at the opposite side.
