PARKING AND REAR BRAKE 5C-11

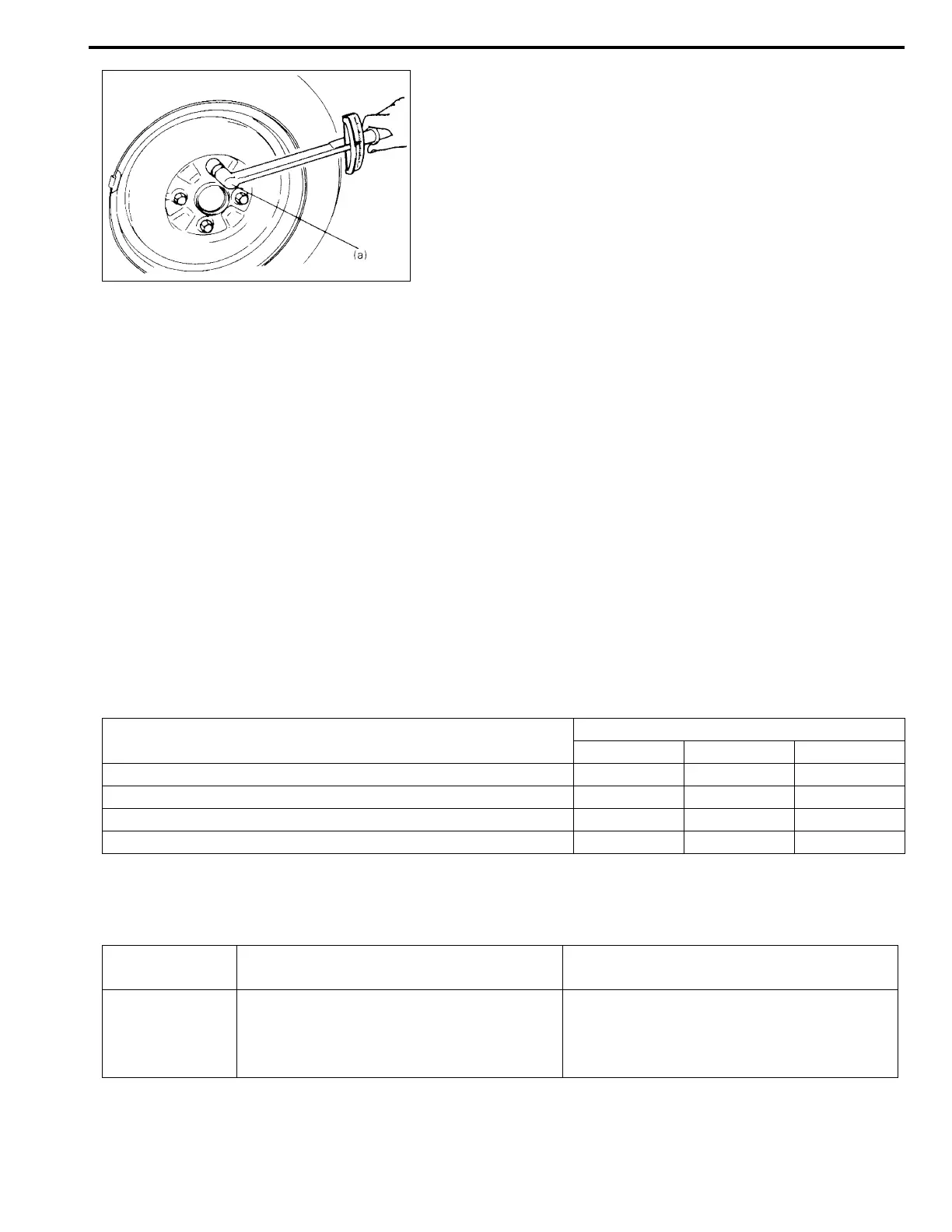

8) Install wheel and tighten wheel bolts to specified torque.
Tightening torque
Wheel bolt (a): 95 N·m (9.5 kg-m, 69.0 lb-ft)
9) Upon completion of all jobs, depress brake pedal with about
300 N (30 kg, 66 lbs) load at least 10 – 15 times until
adjuster actuator clicking sound from drum brake can not be
heard so as to obtain proper drum-to-shoe clearance.
Adjust parking brake cable. (For adjustment, refer to “Parking
Brake Inspection and Adjustment” in Section 5.)
10) Install console box cap.
11) Check to ensure that brake drum is free from dragging and
proper braking is obtained. Then remove vehicle from hoist
and perform brake test (foot brake and parking brake).
12) Check each installed part for oil leakage.
Brake Back Plate (for 4WD Model)
Refer to “Rear Axle Shaft and Wheel Bearing (for 4WD Model)” in
Section 3E.
Tightening Torque Specifications
Required Service Material
Fastening part
Tightening torque
N•m kg-m lb-ft
Brake back plate bolt 24 2.4 17.5
Brake dram screw 9 9.0 6.5
Spindle nut 175 17.5 126.5
Wheel bolt 95 9.5 69.0
Material
Recommended SUZUKI product
(Part Number)
Use
Water tight
sealant
SUZUKI SEALING COMPOUND 366E
(99000-31090)
• To apply to mating surfaces of brake back
plate and rear axle
• To apply to mating surfaces of brake back
plate and parking brake cable.
