7B1-6 AUTOMATIC TRANSAXLE (M13 ENGINE)
Clutch/Brake/Planetary Gear

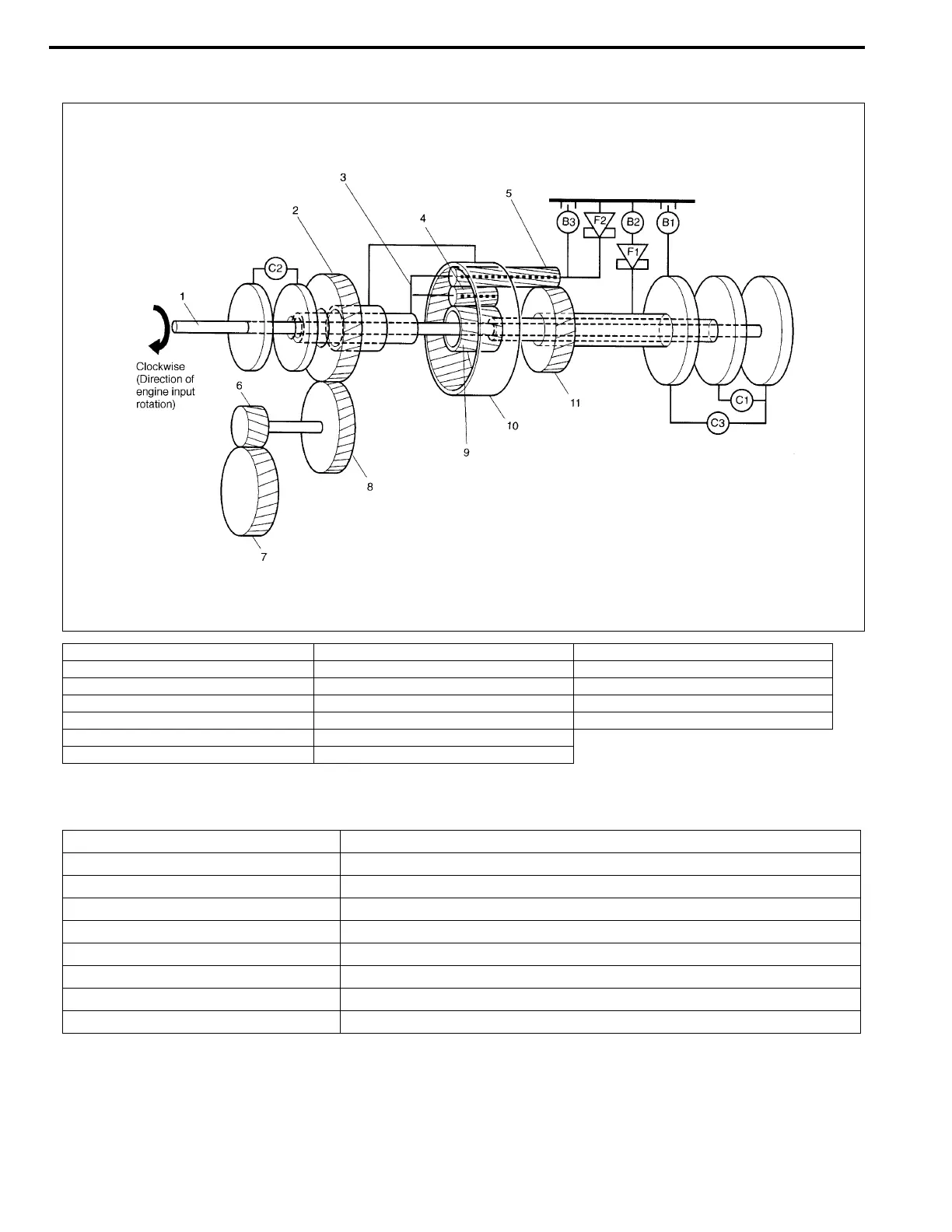

Functions
1. Input shaft and intermediate shaft 8. Reduction driven gear B1: O/D and 2nd coast brake
2. Reduction drive gear 9. Front sun gear B2: 2nd brake
3. Planet carrier 10. Ring gear B3: 1st and reverse brake
4. Short planet pinion 11. Rear sun gear F1: One-way No.1 clutch
5. Long planet pinion C1: Forward clutch F2: One-way No.2 clutch
6. Final drive gear C2: Direct clutch
7. Final driven gear C3: Reverse clutch
PART NAME FUNCTION
Forward clutch Meshes intermediate shaft and front sun gear
Direct clutch Meshes input shaft and planet carrier
Reverse clutch Meshes intermediate shaft and rear sun gear
O/D and 2nd coast brake Fixes rear sun gear
2nd brake Fixes rear sun gear
1st and reverse brake Fixes planet carrier
One-way No.1 clutch Prevents rear sun gear from turning counterclockwise
One-way No.2 clutch Prevents planet carrier from turning counterclockwise
