AUTOMATIC TRANSAXLE (M13 ENGINE) 7B1-95
Select Cable
Removal
1) Remove parking brake lever cover.
2) Remove console box.
3) Disconnect select cable from selector lever and then detach
from bracket.
4) Remove clip and disconnect select cable from manual select
lever.
5) Remove select cable retainer from dash panel.
Installation
Install select cable by reversing removal procedure.
The important steps in installation are as follows.
Apply grease to pin and cable joint.

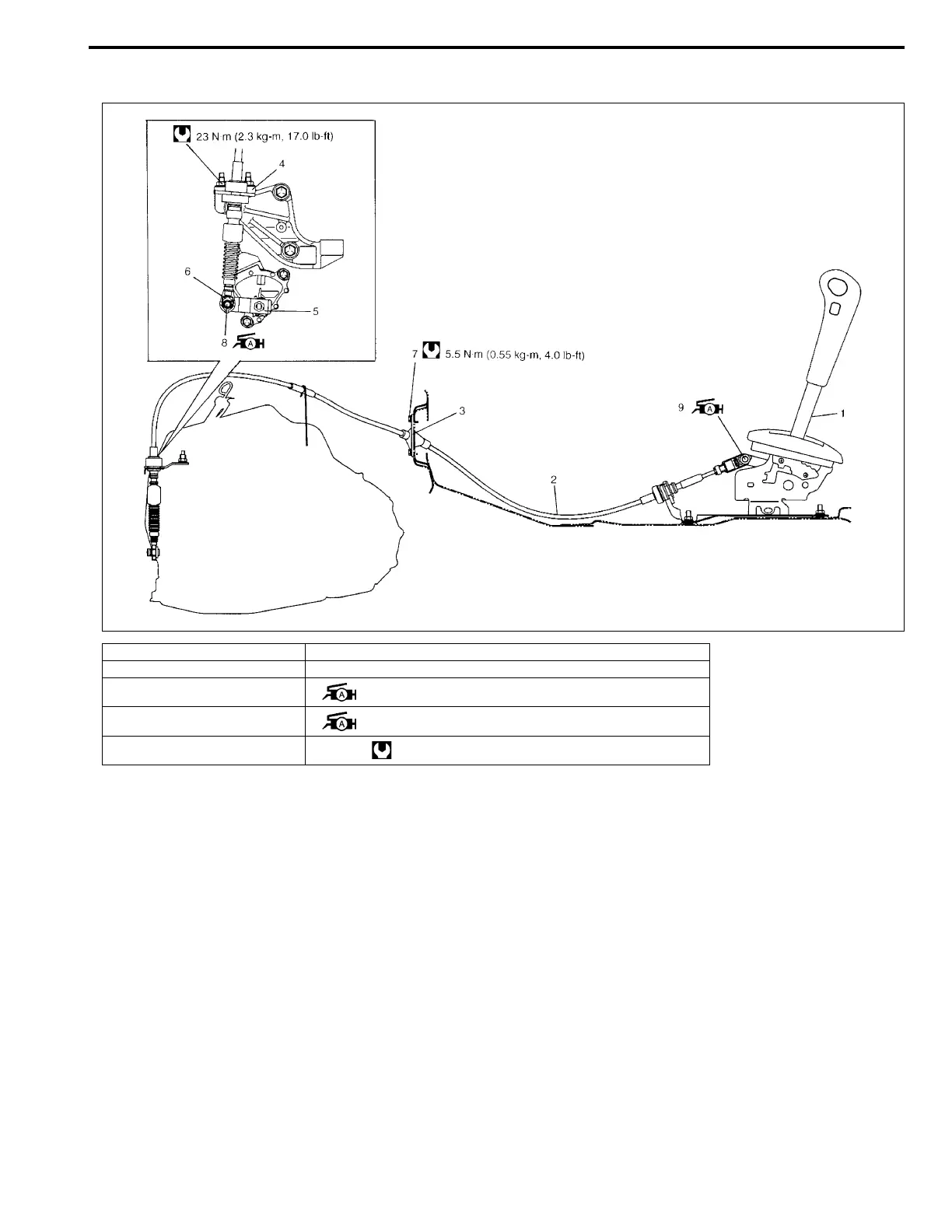

Tighten bolts in upper figure to specified torque.
Adjusting procedure is as follows.
1. Selector lever assembly 6. Clip
2. Select cable 7. Select cable retainer bolt
3. Select cable retainer 8. Manual select lever pin
: Apply lithium grease 99000-25010 to all around pin (0.15 g)
4. Cable bracket 9. Selector lever pin
: Apply lithium grease 99000-25010 to all around pin (0.15 g)
5. Manual select lever Tightening torque
