7A2-18 MANUAL TRANSAXLE (M13 ENGINE)
Gear Shift and Select Shaft Assembly
Removal and Installation
Removal

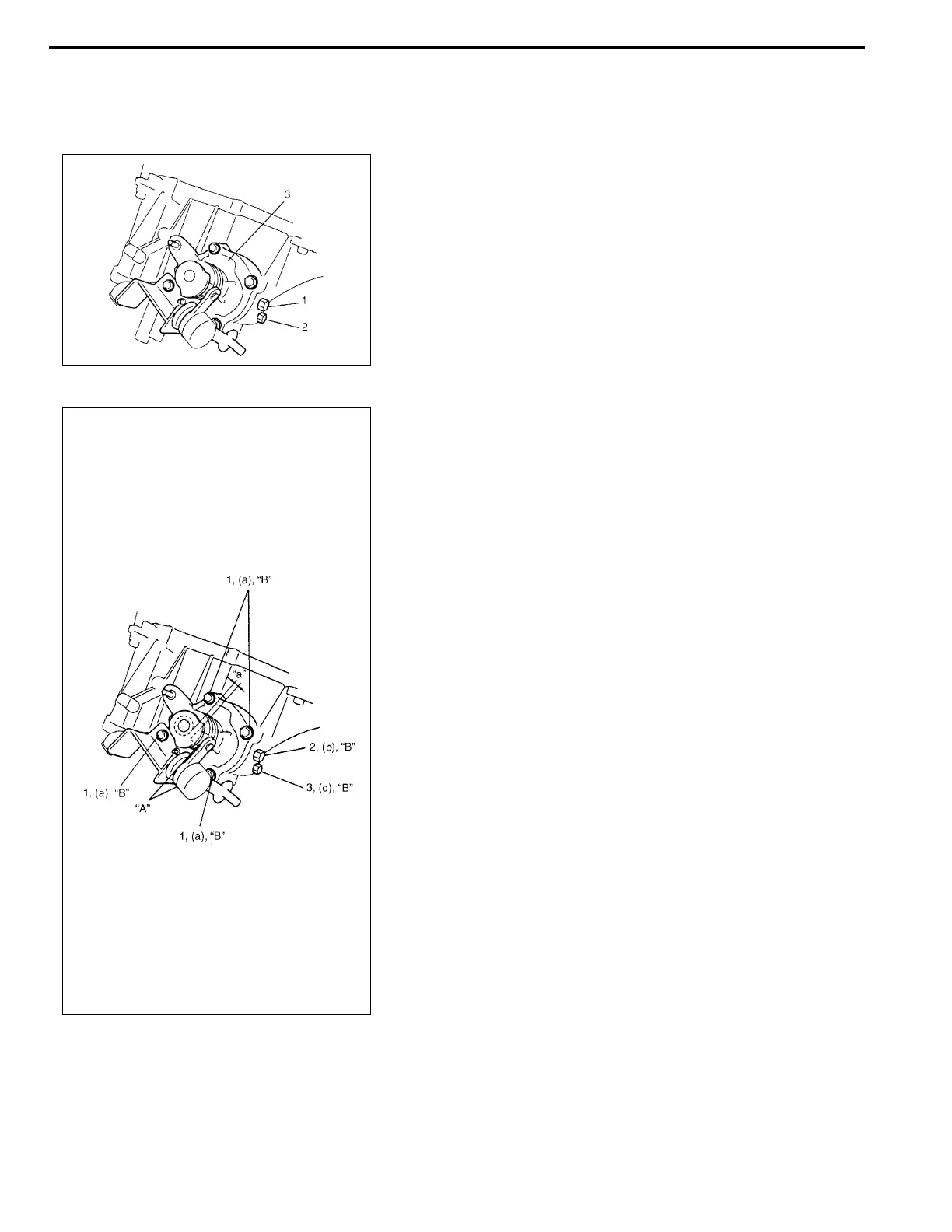

1) Remove gear shift interlock bolt (1) and 5th to reverse inter-
lock guide bolt (2) from transaxle case.
2) Remove gear shift and select shaft assembly (3).
Installation
1) Apply grease to select lever shaft bush and select lever boss,
and install gear shift and select shaft assembly with new
gasket into transaxle.
“A”: Grease 99000-25010
2) Apply sealant to gear shift guide case bolts (1). Tighten gear
shift guide case bolts (1) to specified torque at the position
that clearance “a” is within 1 - 1.5 mm (0.04 - 0.06 in.).
“B”: Sealant 99000-31260
Tightening torque
Gear shift guide case bolt
(a): 23 N·m (2.3 kg-m, 17.0 lb-ft)
3) Install washer and gear shift interlock bolt (2) to which seal-
ant have been applied and them tighten it to specified
torque.
“B”: Sealant 99000-31260
Tightening torque
Gear shift interlock bolt (b): 23 N·m (2.3 kg-m, 17.0 lb-ft)
4) Install washer and 5th to reverse interlock guide bolt (3) to
which sealant have been applied and then tighten it to speci-
fied torque.
“B”: Sealant 99000-31260
Tightening torque
5th to reverse interlock guide bolt
(c): 23 N·m (2.3 kg-m, 17.0 lb-ft)
