7B1-12 AUTOMATIC TRANSAXLE (M13 ENGINE)
Automatic gear shift diagram
Automatic shift schedule as a result of shift control is shown below. In case that selector lever is shifted to “L”
range at a higher than 44 km/h (27 mile/h) speed, 2nd gear is operated and then down shifts to 1st at a speed
lower than that.
The same as, the select lever is shifted to “2” range at a higher than 88 km/h (55 mile/h) speed, 3rd gear is oper-
ated and then down shifts to 2nd at a speed lower than that.

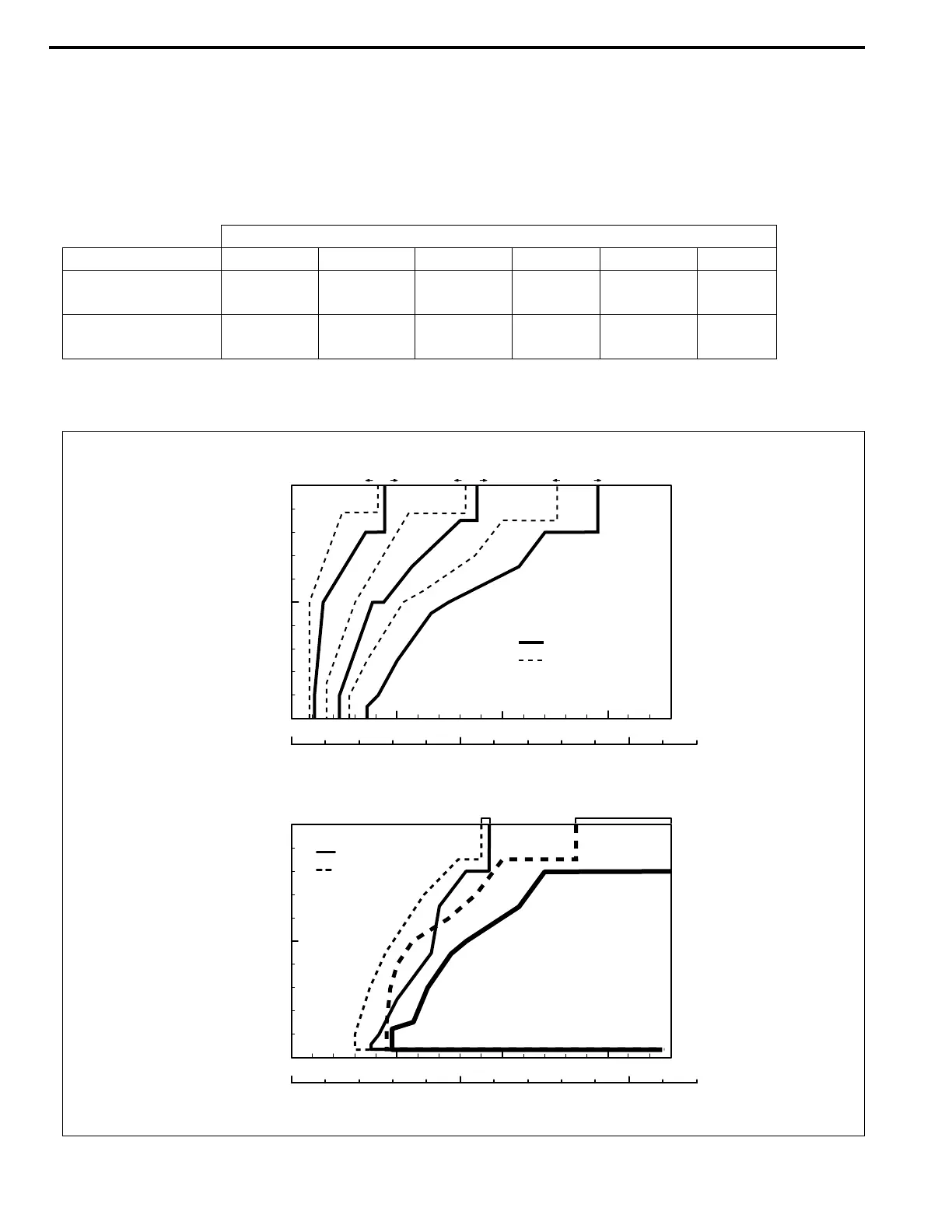

Gear Shift Diagram [A] and TCC Lock-up Diagram [B]
Shift
Throttle opening 1
→
22
→
33
→
44
→
33
→
22
→
1
Full throttle km/h
(mile/h)
44 (27) 88 (55) 145 (90) 126 (78) 82 (51) 41(25)
Closed throttle km/h
(mile/h)
11 (7) 22(14) 36 (22) 27 (17) 17 (11) 9 (6)
100
(%)
50
0
0 50 100 150
100
(km/h)
(mile/h)500
Throttle valve opening
Vehicle speed
100
(%)
50
0
0 50 100 150
100
(km/h)
(mile/h)500
Throttle valve opening
Vehicle speed
1212 2323 34 34
Upshift
Downshift
Look-up ON
Look-up OFF
3rd gear
4th gear
[A]
[B]
