6A2-20 ENGINE MECHANICAL (M13 ENGINE)

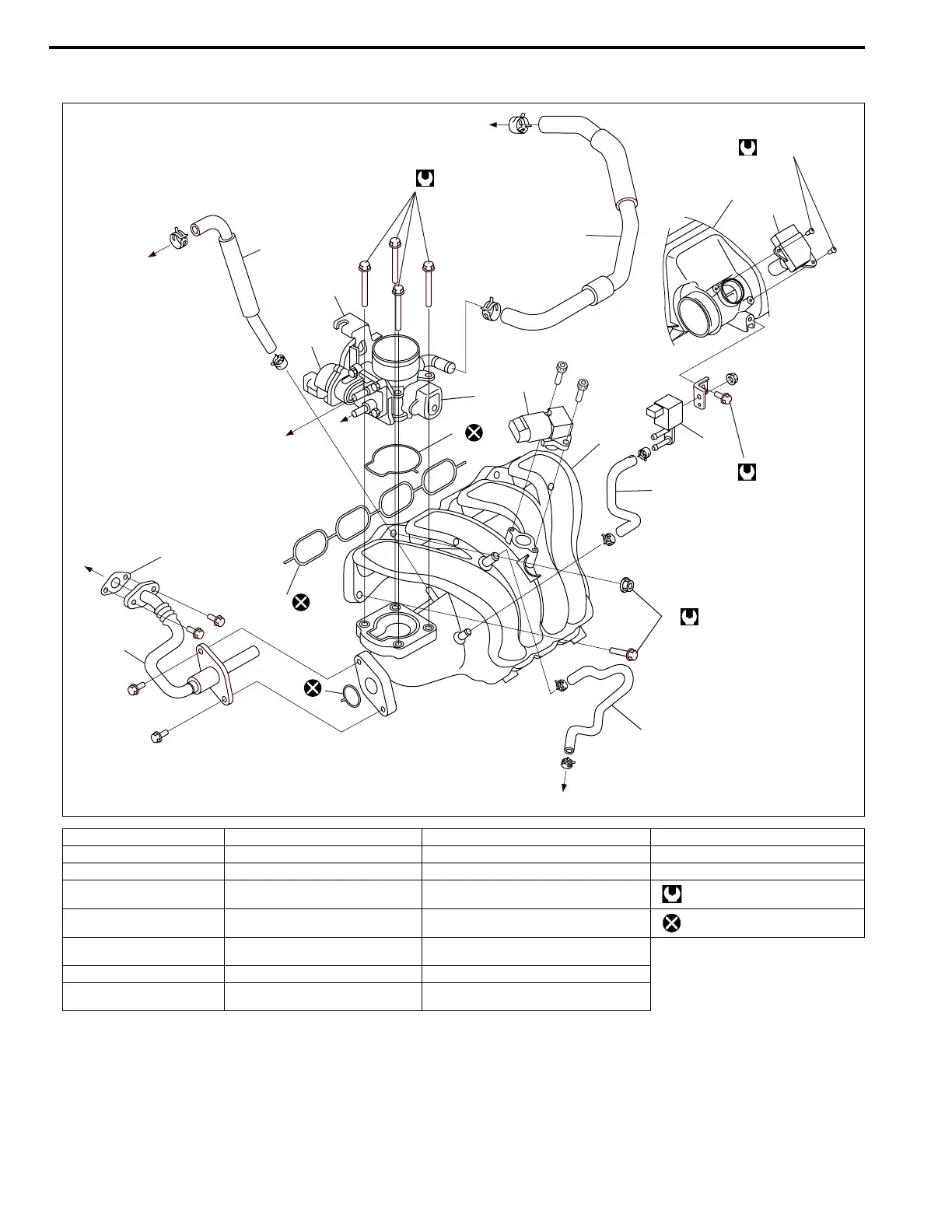

Throttle Body and Intake Manifold Components
1. Intake manifold 9. Gasket 17. Throttle body mounting bolt 25. To brake booster
2. Intake manifold O-Ring 10. MAP sensor 18. Air cleaner case 26. To water outlet cap
3. Throttle body 11. PCV valve hose 19. MAF sensor bolt 27. To heater union
4. TP sensor 12. Breather hose 20. MAF sensor Tightening torque
5. IAC valve 13. EVAP canister purge valve 21. VSV bracket bolt Do not reuse.
6. O-Ring 14. EVAP canister purge valve
hose
22. To EGR valve
7. EGR pipe 15. Brake booster hose 23. To PCV valve
8. O-Ring 16. Intake manifold mounting bolt
and nut
24. To cylinder head cover
17 25 N·m (2.5 kg-m)
19 2.5 N·m (0.25 kg-m)
21 5 N·m (0.5 kg-m)
16 25 N·m (2.5 kg-m)
6
2
8
23
12
3
5
11
22
27
26
4
10
1
14
13
18
20
15
24
21
9
7
