3B-4 MANUAL RACK AND PINION

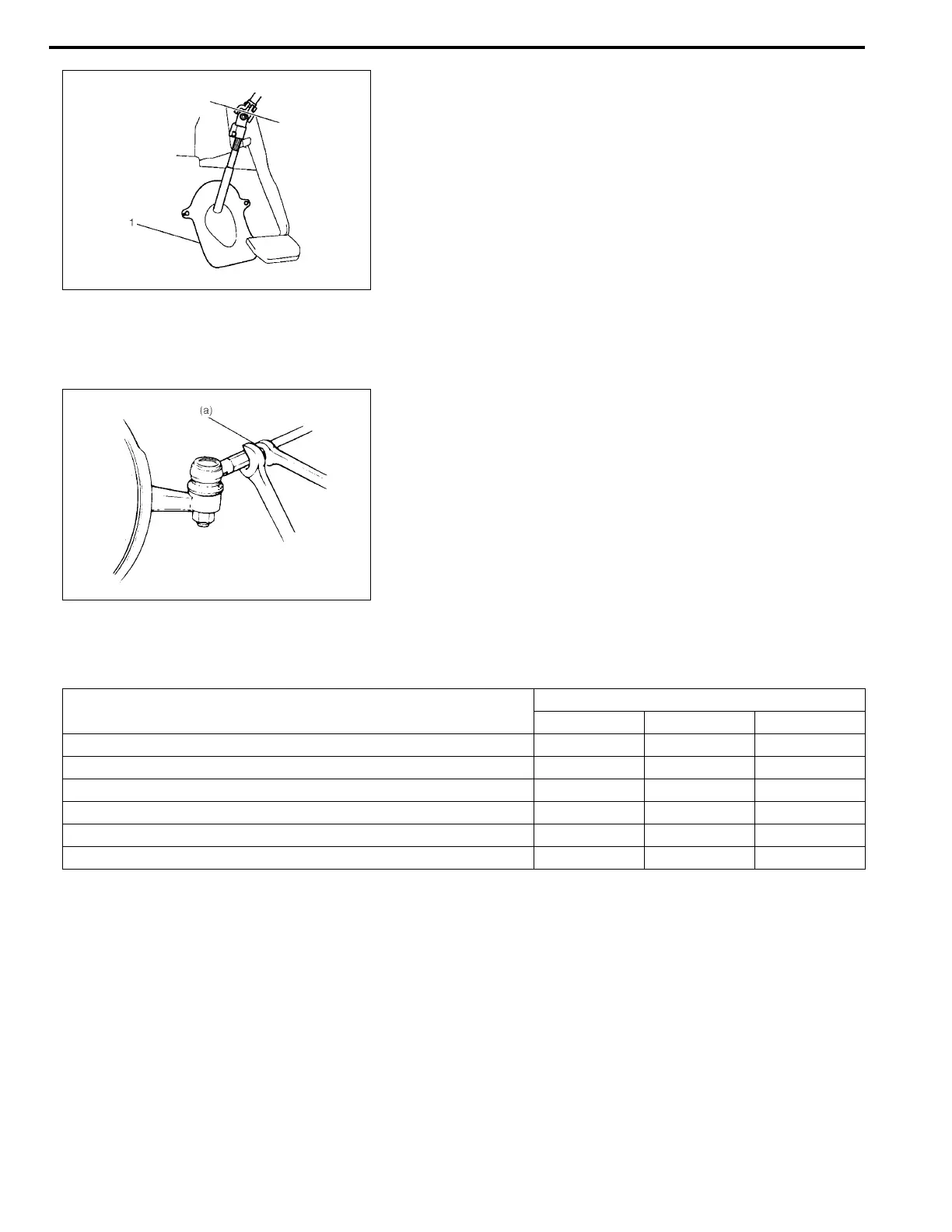

7) Reinstall cover (1) removed previously to steering shaft joint.
8) Put back floor mat as it was.
9) Install both wheels and tighten wheel bolts to specified
torque.
Tightening torque
Wheel bolt: 95 N·m (9.5 kg-m, 69.0 lb-ft)
10) Lower hoist.
11) Check toe setting. Adjust as required (refer to “Front Wheel
Alignment” in Section 3A).
12) Tighten both tie rod end lock nuts to specified torque.
Tightening torque
Tie rod end lock nut (a): 45 N·m (4.5 kg-m, 32.5 lb-ft)
Tightening Torque Specifications
Fastening part
Tightening torque
N•m kg-m lb-ft
Engine rear mounting bolt 55 5.5 40.0
Steering gear case mounting bolt and nut 25 2.5 18.0
Steering shaft joint bolt 28 2.8 20.5
Tie rod end lock nut 45 4.5 32.5
Tie rod end nut 40 4.0 29.0
Wheel bolt 95 9.5 69.0
