Suzuki Wagon R Plus RB310 - Differential Carrier and Drive Bevel Pinion

REAR DIFFERENTIAL 7F-11

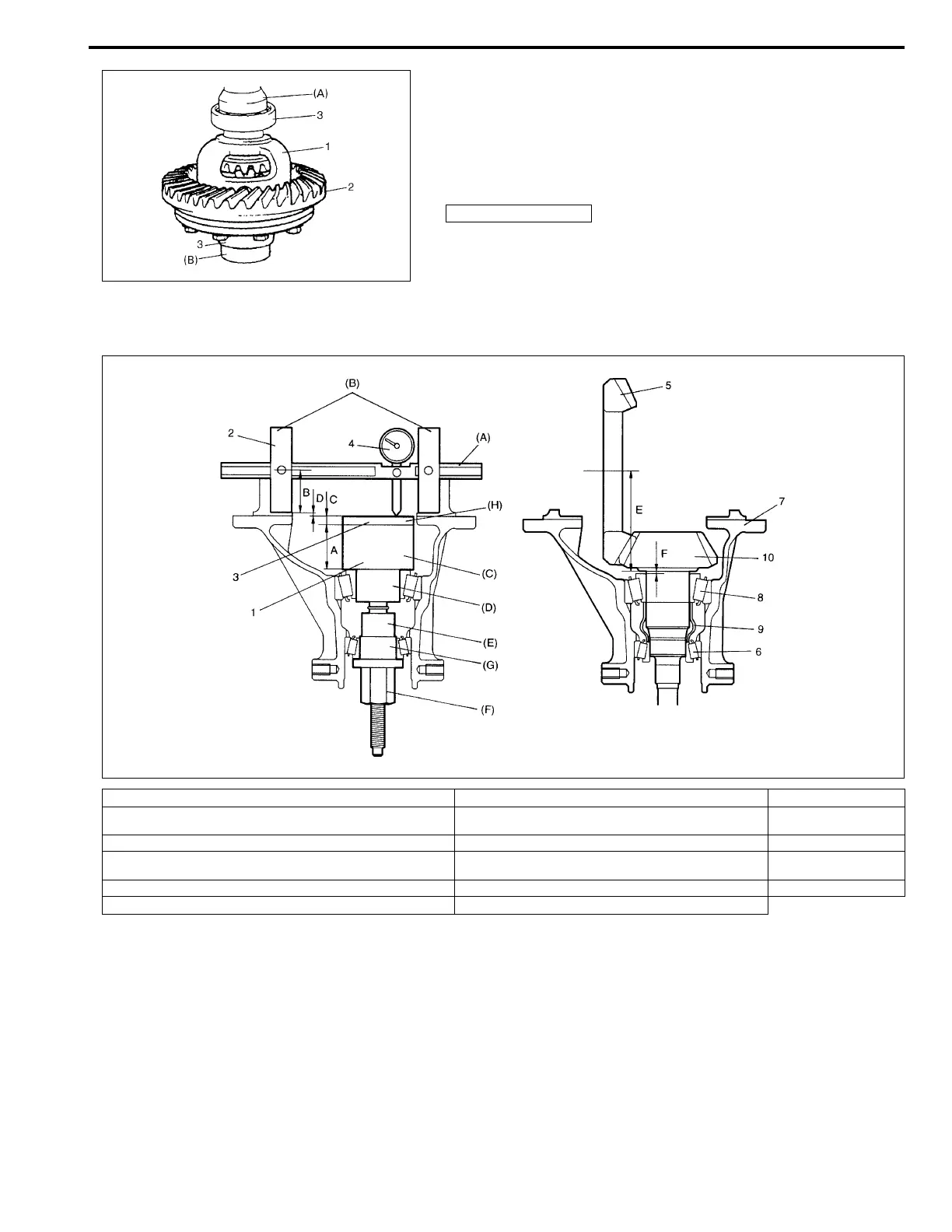

7) Press-fit differential side bearings (3) to differential case (1)
by using special tools.
Special tool
(A): 09951-76010
(B): 09951-16060
Differential carrier and drive bevel pinion
Special tool
(A): 09922-76120
(B): 09922-76230
(C): 09922-76140
(D): 09922-76410
(E): 09922-76340
(F): 09922-76150
(G): 09922-76320
(H): 09922-76510
2. Drive bevel gear
A: Dummy height of pinion form dummy (= 40 mm/1.575 in.) F: Shim thickness for mounting distance adjustment (= D) 6. Front bearing
B: Radius of bearing form dummy with dummy shaft (= 36
mm/1.417 in.)
1. Pinion form dummy 7. Differential carrier
C: Block dummy thickness (= 4 mm/0.1575 in.) 2. Bearing form dummy with dummy shaft 8. Rear bearing
A + B + C: Mounting distance adjusting dummy total size (= 80 mm/
3.150 in.)
3. Block dummy 9. Spacer
D: Measured dimension 4. Dial gauge 10. Drive bevel pinion
E: Drive bevel pinion mounting distance (= 80 mm/3.150 in.) 5. Drive bevel gear
