43) Measure O/D and 2nd coast brake piston stroke.

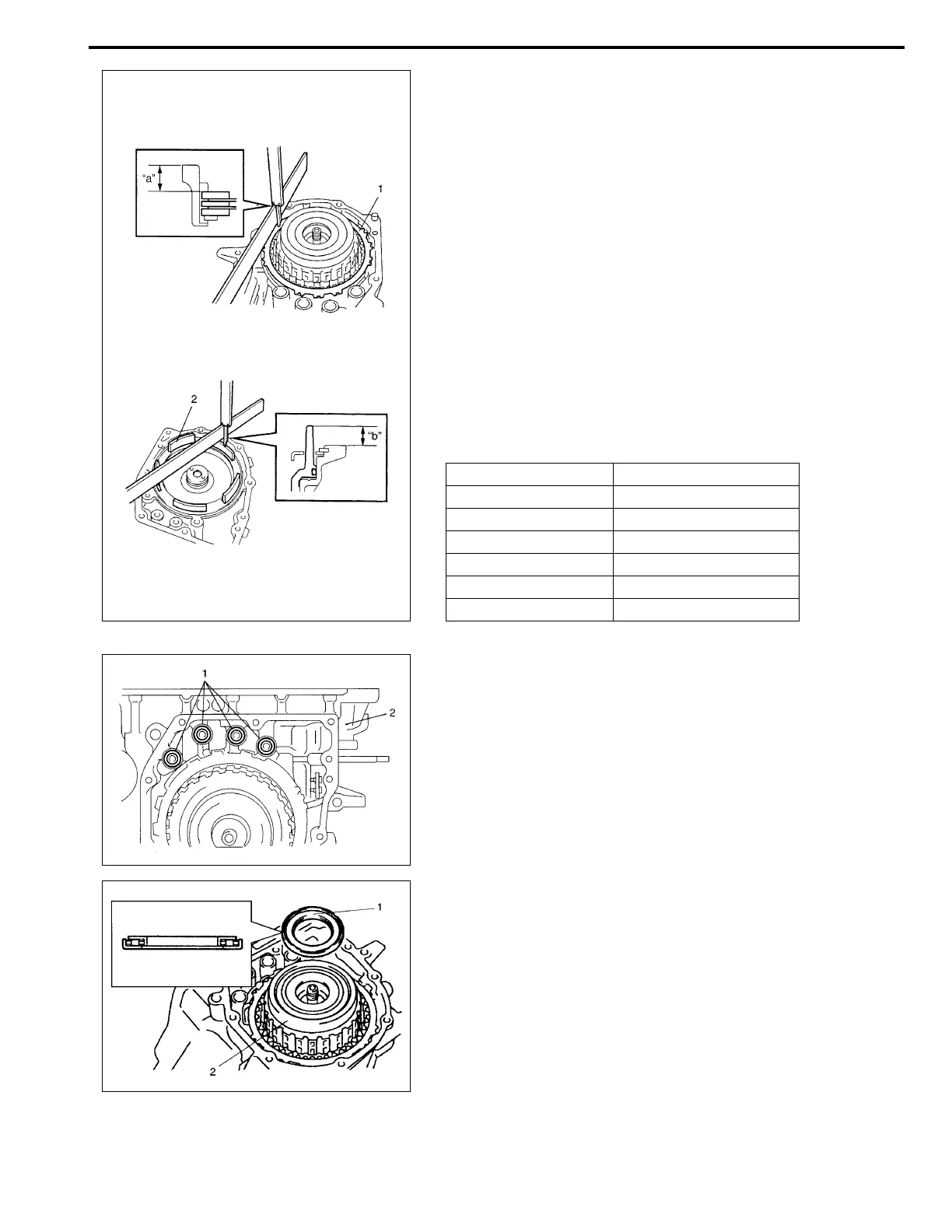

• Measure dimension “a” from end face of transaxle case to O/
D and 2nd coast brake rear plate (1) using straightedge and
micrometer caliper.
• Measure dimension “b” from O/D and 2nd coast brake piston
(2) to rear cover assembly mating surface using straightedge
and micrometer caliper.
• Calculate piston stroke from measured value of dimensions
“a” and “b”.
• Piston stroke = “a” – “b”
O/D and 2nd coast brake piston stroke
standard: 0.65 – 1.05 mm (0.026 – 0.041 in.)
When piston stroke is out of specification, select O/D and 2nd
coast brake rear plate with proper thickness from among the list
below and replace it.
Available O/D and 2nd coast brake rear plate thickness
44) After applying A/T fluid to new 2nd brake gaskets (1), install
them to transaxle case (2).
45) After applying A/T fluid to reverse clutch drum thrust bearing
(1), install it to forward and reverse clutch assembly (2).
Thickness Identification mark
1.8 mm (0.071 in.) 1
2.0 mm (0.079 in.) 2
2.2 mm (0.087 in.) 3
2.4 mm (0.094 in.) 4
2.6 mm (0.102 in.) 5
5.0 mm
