BRAKES 5-5
Brake Shoe Check
Inspection should be carried out on the following points after
brake pedal travel “c” (pedal to silencer clearance) check as
described on previous page of this section, even when it is more
than specification.
Amount of brake shoe wear can be checked as follows.
1) Hoist vehicle.

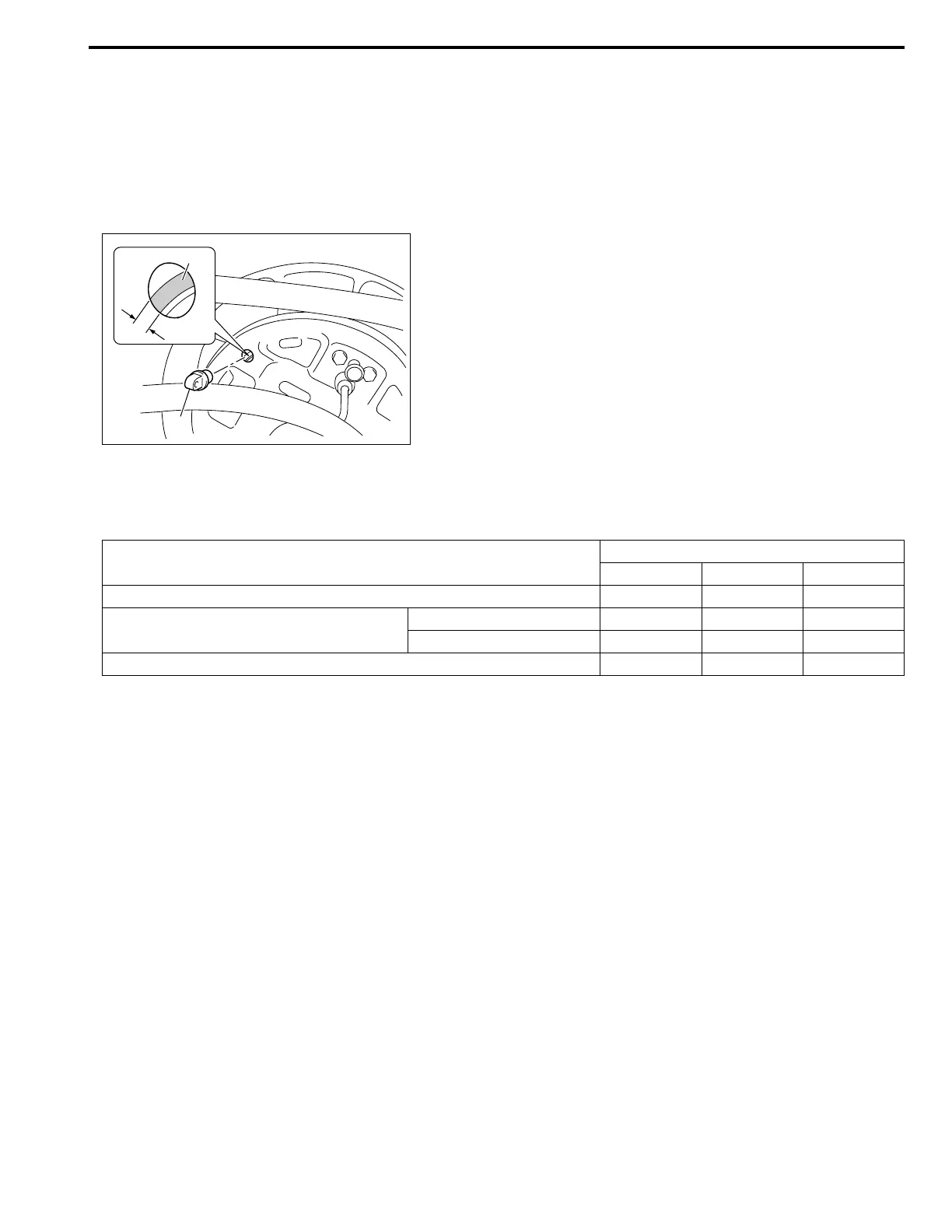

2) Remove rubber cover (plug) (1) from brake back plate.
3) Through hole of back plate, visually check for thickness of
brake shoe lining (2). If lining thickness “f” is found less than
below specified wear limit, replace all brake shoes with new
ones.
Thickness “f”
Service limit: 1.0 mm (0.04 in.)
Tightening Torque Specifications
"f"
2
1
Fastening part
Tightening torque
N•m kg-m lb-ft
Brake pipe flare nut 16 1.6 11.5
Brake bleeder plug Front caliper 6.5 0.65 5.0
Wheel cylinder 8.5 0.85 6.5
Wheel bolt 95 9.5 69.0
