6A2-60 ENGINE MECHANICAL (M13 ENGINE)
Valves and Cylinder Head Disassembly and
Assembly
Disassembly
1) For ease in servicing cylinder head, remove intake manifold,
injectors and exhaust manifold from cylinder head.

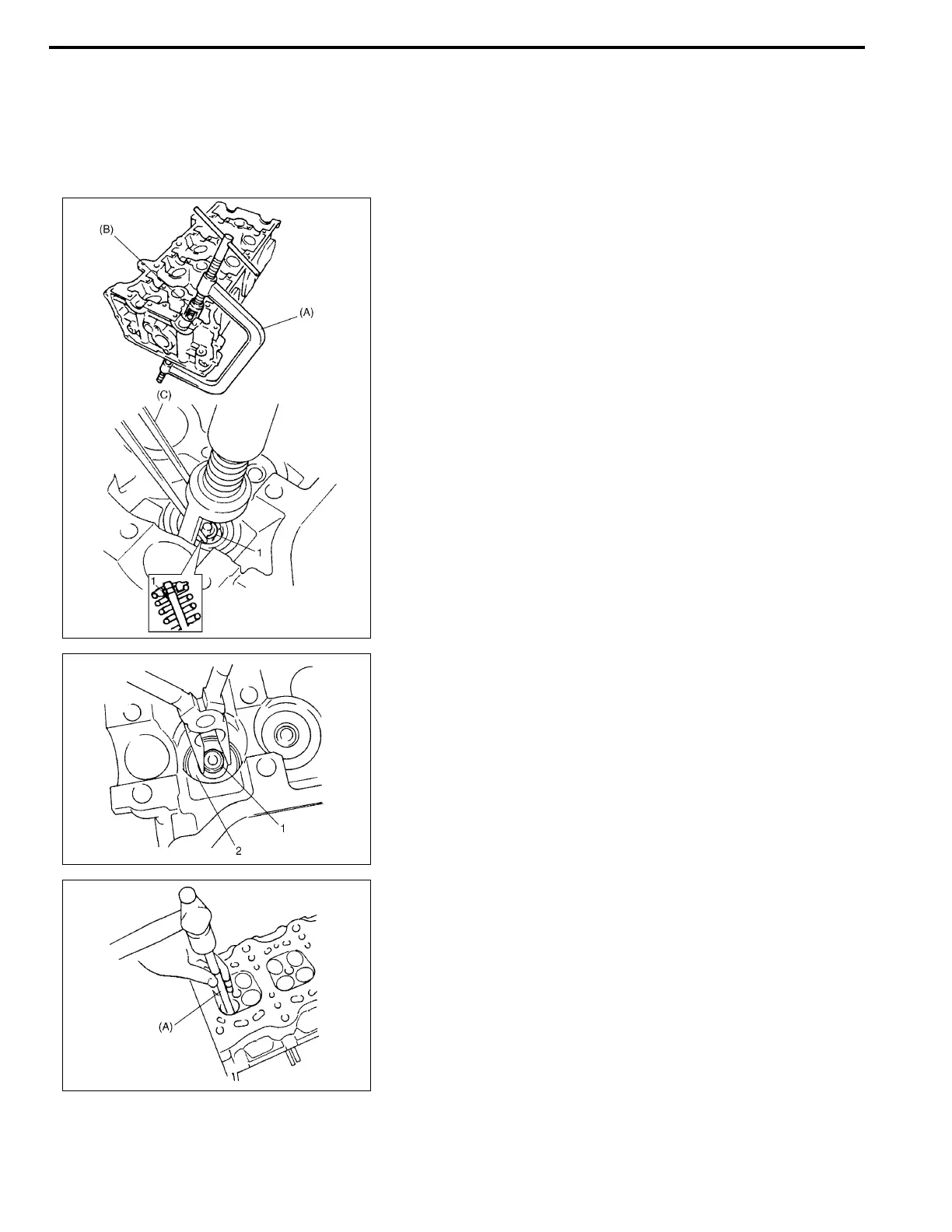

2) Using special tools (valve lifter), compress valve spring and
then remove valve cotters (1) by using special tool (forceps).
Special tool
(A): 09916-14510
(B): 09916-14521
(C): 09916-84511
3) Release special tools (valve lifter), and remove spring
retainer and valve spring.
4) Remove valve from combustion chamber side.
5) Remove valve stem seal (1) from valve guide and valve
spring seat (2).
6) Using special tool (valve guide remover), drive valve guide
out from combustion chamber side to valve spring side.
Special tool
(A): 09916-44910
7) Place disassembled parts except valve stem seal and valve
guide in order so that they can be installed in their original
position.
NOTE:
Do not reuse valve stem seal (1) once disassembled. Be
sure to use new valve stem seal when assembling.
NOTE:
Do not reuse valve guide once disassembled. Be sure to
use new valve guide (oversize) when assembling.
