Suzuki Wagon R Plus RB310 - Distance between Direct Clutch Assembly and Mating Surface of Transaxle Case; Oil Pump Assembly Bolt

7B1-194 AUTOMATIC TRANSAXLE (M13 ENGINE)

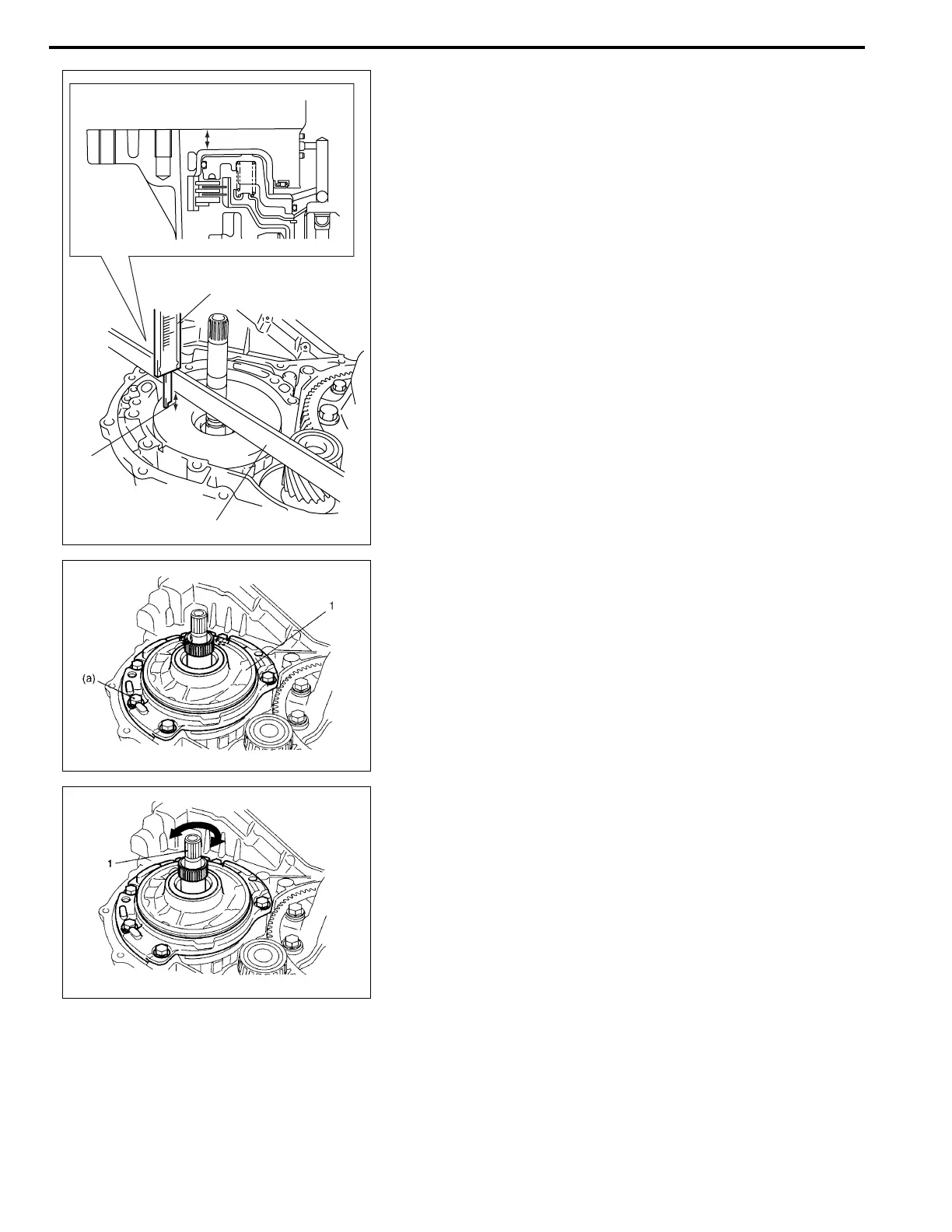

58) Check for correct installation of direct clutch assembly as fol-
lows.
Measure distance “a” by using micrometer caliper (1) and
straightedge (2). If out of specification, remove direct clutch
assembly, direct clutch hub and reinstall them properly.
Distance between direct clutch assembly and mating sur-
face of transaxle case
“a”: 10.5 – 11.3 mm (0.413 – 0.445 in.)
59) Install oil pump assembly (1) to transaxle case.
Tightening torque
Oil pump assembly bolt
(a): 25 N·m (2.5 kg-m, 18.0 lb-ft)
60) Make sure that input shaft (1) turns smoothly.
“a”
“a”
1
2
