ENGINE COOLING (M13 ENGINE) 6B2-13

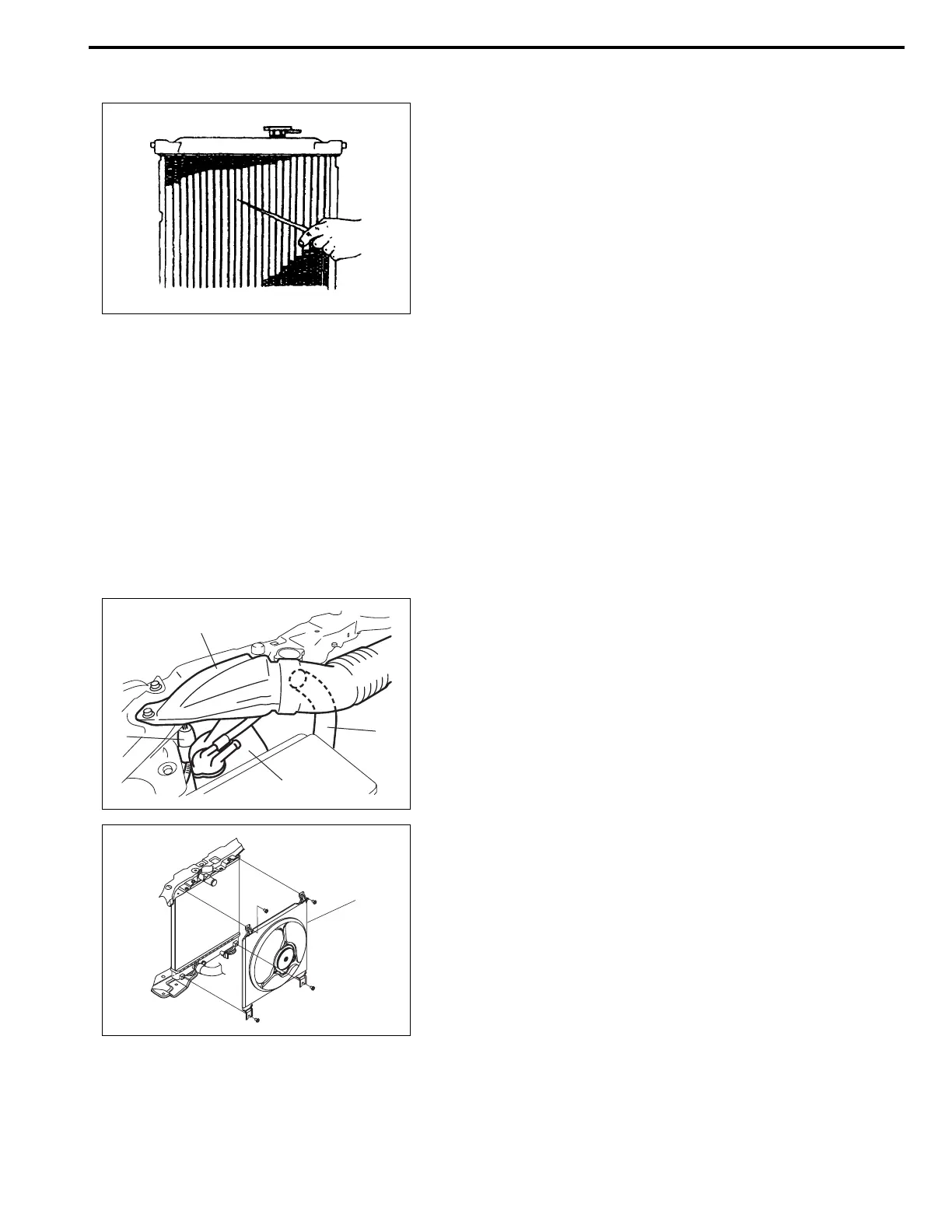

Radiator Inspection
Check radiator for leakage or damage. Straighten bent fins, if any.
Radiator Cleaning
Clean frontal area of radiator cores.
Radiator Cooling Fan Relay Inspection
Refer to “Main Relay, Fuel Pump Relay and Radiator Fan Relay”
in Section 6E2.
Radiator Cooling Fan Removal and Installa-
tion
Removal
1) Disconnect negative cable at battery.
2) Drain coolant referring to “Cooling System Draining” in this
section.
3) Remove air cleaner suction pipe (1) and reservoir (2).
4) Disconnect cooling fan motor connector (3).
5) Remove radiator inlet hose (4) from radiator.
6) Remove radiator cooling fan motor (1) from radiator.
Installation
Reverse removal procedure for installation noting the following.
• Refill cooling system referring to step 7) to 18) of “Cooling
System Flush and Refill” in this section.
• After installation, verify there is no coolant leakage at each
connection.
1
2
3
4
1
To Next Page
