Suzuki Wagon R Plus RB310 - Oil Pump Removal and Installation; Oil Pump Disassembly and Assembly

6A2-40 ENGINE MECHANICAL (M13 ENGINE)
Oil Pump Removal and Installation
Removal
Remove timing chain cover referring to “Timing Chain Cover
Removal and Installation” in this section.
Installation
For installation referring to “Timing Chain Cover Removal and
Installation” in this section.
Oil Pump Disassembly and Assembly
Disassembly

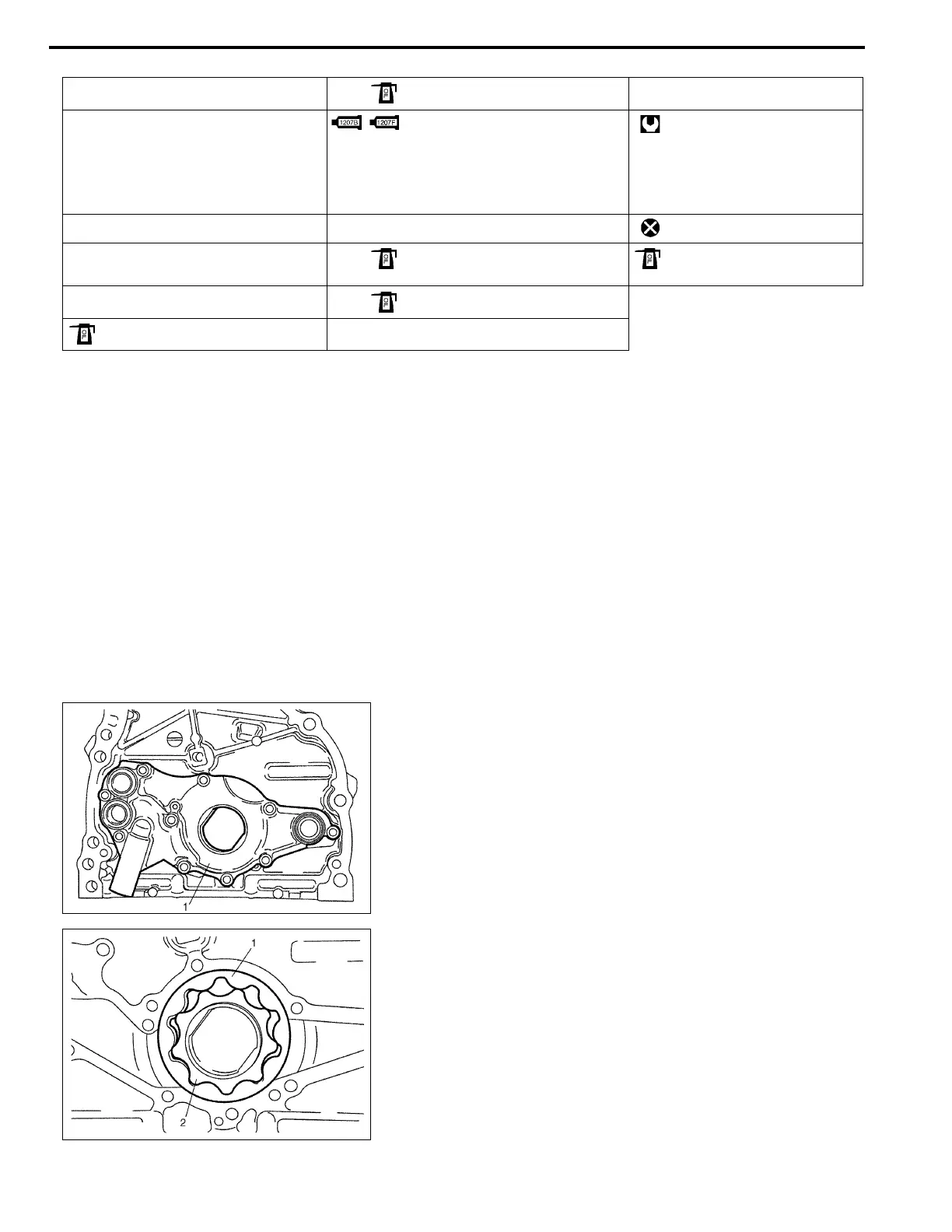

1) Remove rotor plate (1) by removing its mounting bolts.
2) Remove outer rotor (1) and inner rotor (2).
[A]: Sealant application amount 4. Inner rotor 10. Circlip
“a”: 3 mm (0.12 in.) 5. Timing chain cover
: Apply sealant 99000-31140 to the
mating surface of cylinder and cylinder
head.
: Apply sealant 99000-31250 to mating
surface of timing chain cover referring
to the figure of Step 4) of “Installation”
under “Timing Chain Cover Removal
and Installation” in this section.
Tightening torque
“b”: 2 mm (0.08 in.) 6. Oil pump rotor plate bolt Do not reuse.
1. Rotor plate 7. Relief valve Apply thin coat of engine oil to sliding
surface of each parts.
2. O ring 8. Spring
3. Outer rotor 9. Retainer
