6A2-34 ENGINE MECHANICAL (M13 ENGINE)

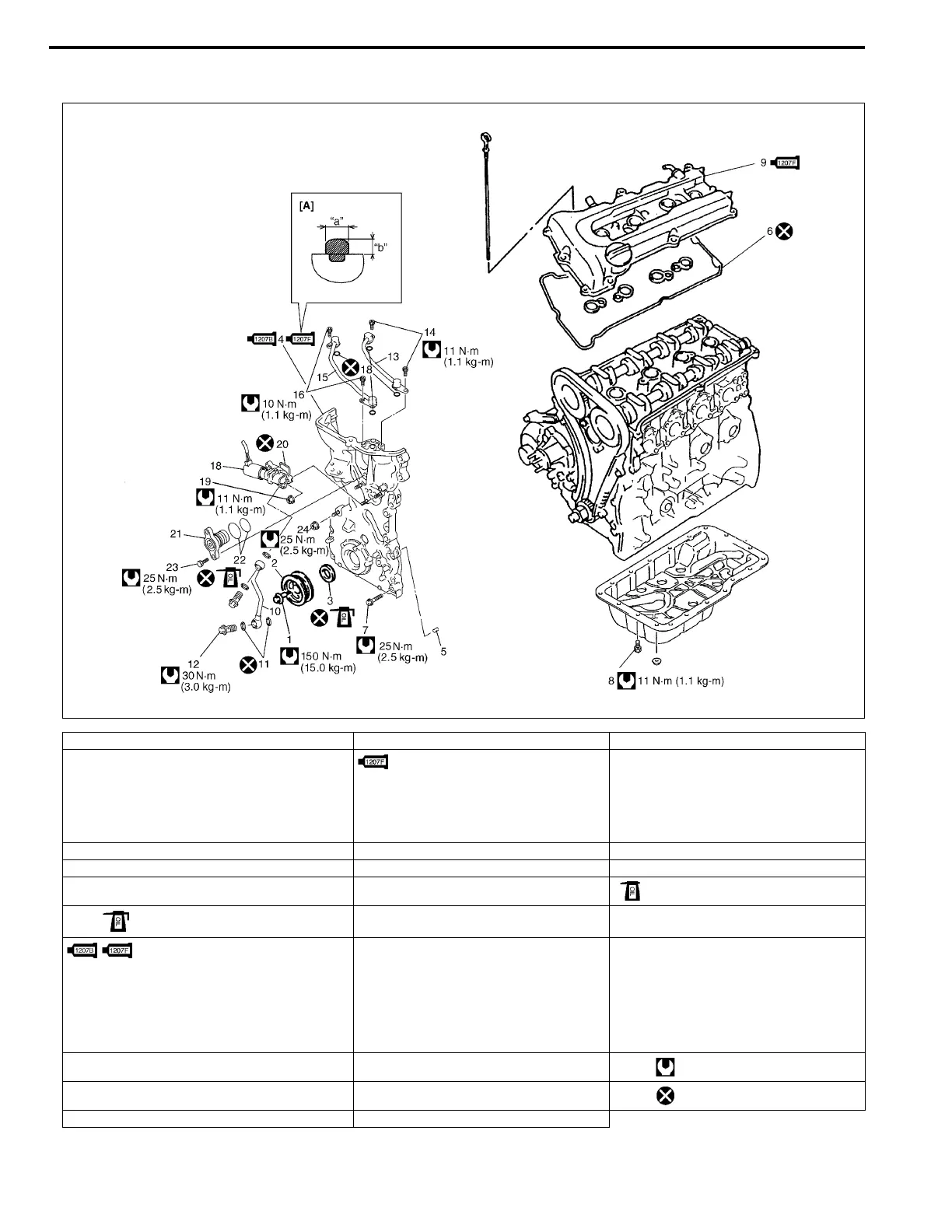

Timing Chain Cover Components
[A]: Sealant application amount 8. Oil pan mounting bolt and nut 18. Oil control valve
“a”: 3 mm (0.12 in.) 9. Cylinder head cover
: Apply sealant 99000-31250 to the
sealing point for timing chain cover
mating surface and cylinder head
gasket sealing point referring to
“Installation” under “Cylinder Head
Cover Removal and Installation” in
this section.
19. Oil control valve mounting nut
“b”: 2 mm (0.08 in.) 10. Oil gallery pipe No.1 20. O-ring
1. Crankshaft pulley bolt 11. Copper washer 21. Water outlet cap
2. Crankshaft pulley 12. Oil gallery pipe No.1 bolt 22. O-ring
3. Oil seal
: Apply engine oil to oil seal lip.
13. Oil gallery pipe No.2 23. Water outlet cap bolt
4. Timing chain cover
: Apply sealant 99000-31140 to the
mating surface of cylinder and cylin-
der head.
: Apply sealant 99000-31250 to the
mating surface of timing chain cover
referring to the figure of Step 1) of
“Installation” under “Timing Chain
Cover Removal and Installation” in
this section.
14. Oil gallery pipe No.2 bolt 24. Timing chain cover mounting nut
5. Pin 15. Oil gallery pipe No.3 Tightening torque
6. Cylinder head cover gasket 16. Oil gallery pipe No.3 bolt Do not reuse.
7. Timing chain cover mounting bolts 17. O ring
To Next Page
