3) Lift engine with transaxle into engine compartment, but do
not remove lifting device.

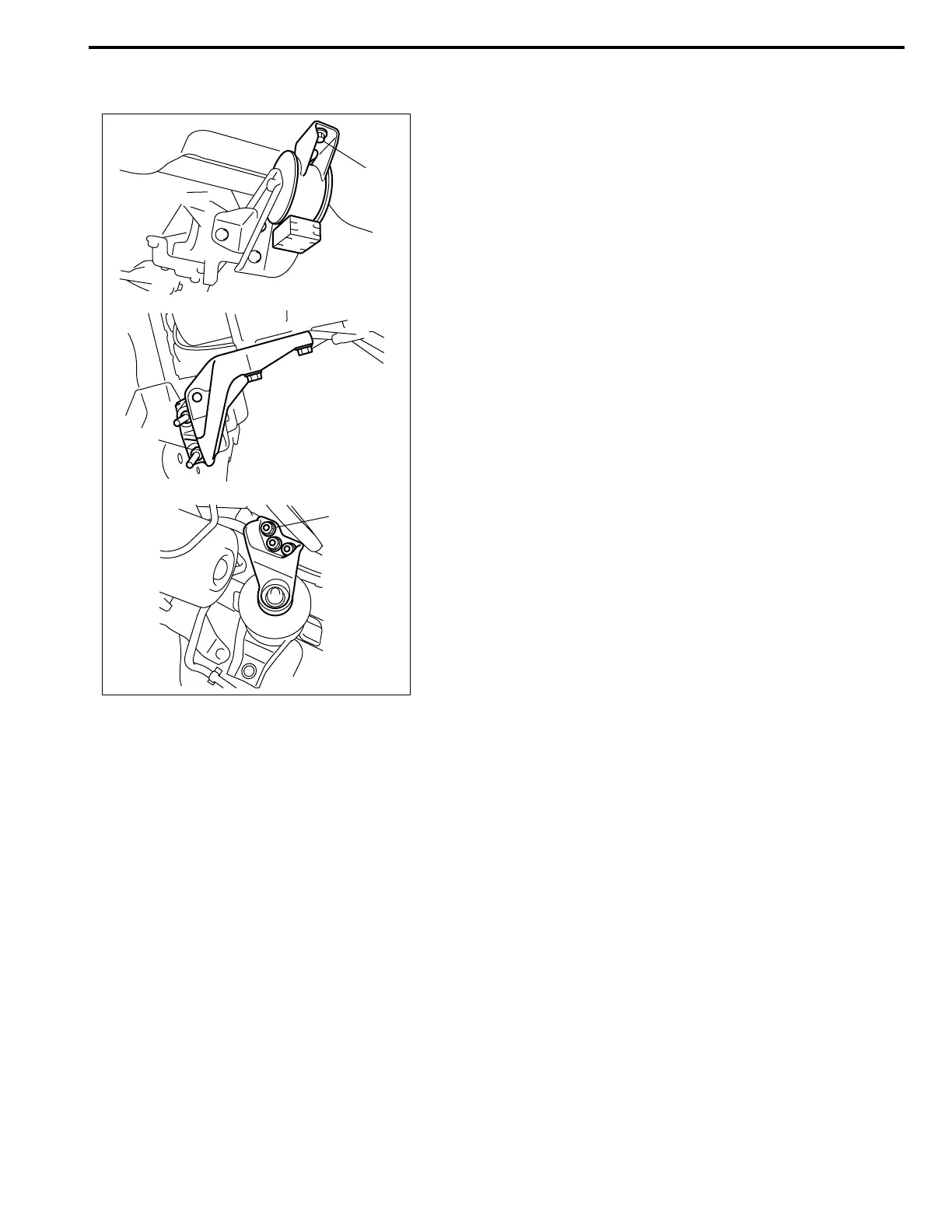

4) Install engine rear mounting bolts (1), engine left mounting
bracket nuts (2) and engine right mounting nuts (3).
Tighten these bolts and nuts to specified torque.
Tightening torque
Engine rear mounting bolt
(a): 55 N·m (5.5 kg-m, 40.0 lb-ft)
Engine left mounting bolt
(b): 55 N·m (5.5 kg-m, 40.0 lb-ft)
Engine right mounting nut
(c): 65 N·m (6.5 kg-m, 47.0 lb-ft)
5) Remove lifting device.
6) For 4WD vehicle, install propeller shaft referring to “On-Vehi-
cle Service” in Section 4B.
7) Connect drive shaft joints referring to “Installation” in Section
4.
8) Install exhaust No.1 pipe referring to “Exhaust Manifold
Removal and Installation” in this section.
9) Reverse disconnected hoses, cables and electric wires for
connection.
10) Install air cleaner case and resonator.
11) Install A/C compressor to its bracket (if equipped).
12) Adjust A/C compressor belt tension (if equipped) referring to
“Compressor Drive Belt Inspection and Adjustment” in Sec-
tion 1B.
13) Adjust accelerator cable play referring to “Accelerator Cable
Adjustment” in Section 6E2.
14) Check to ensure that all removed parts are back in place.
Reinstall any necessary parts which have not been rein-
stalled.
15) Refill cooling system with coolant referring to “Cooling Sys-
tem Flush and Refill” in Section 6B2.
16) Refill engine with engine oil referring to “Engine Oil and Filter
Change” in Section 0B.
17) Refill transaxle with transaxle oil referring to “Transaxle Oil
Change” in Section 7A2.
18) Refill transfer with transfer oil referring to “Transfer Oil
Change” in Section 7D (for 4WD vehicle).
19) Connect negative cable at battery.
20) Verify that there is no fuel leakage, coolant leakage, oil leak-
age and exhaust gas leakage at each connection.
