6A2-32 ENGINE MECHANICAL (M13 ENGINE)
21) Install lifting device.

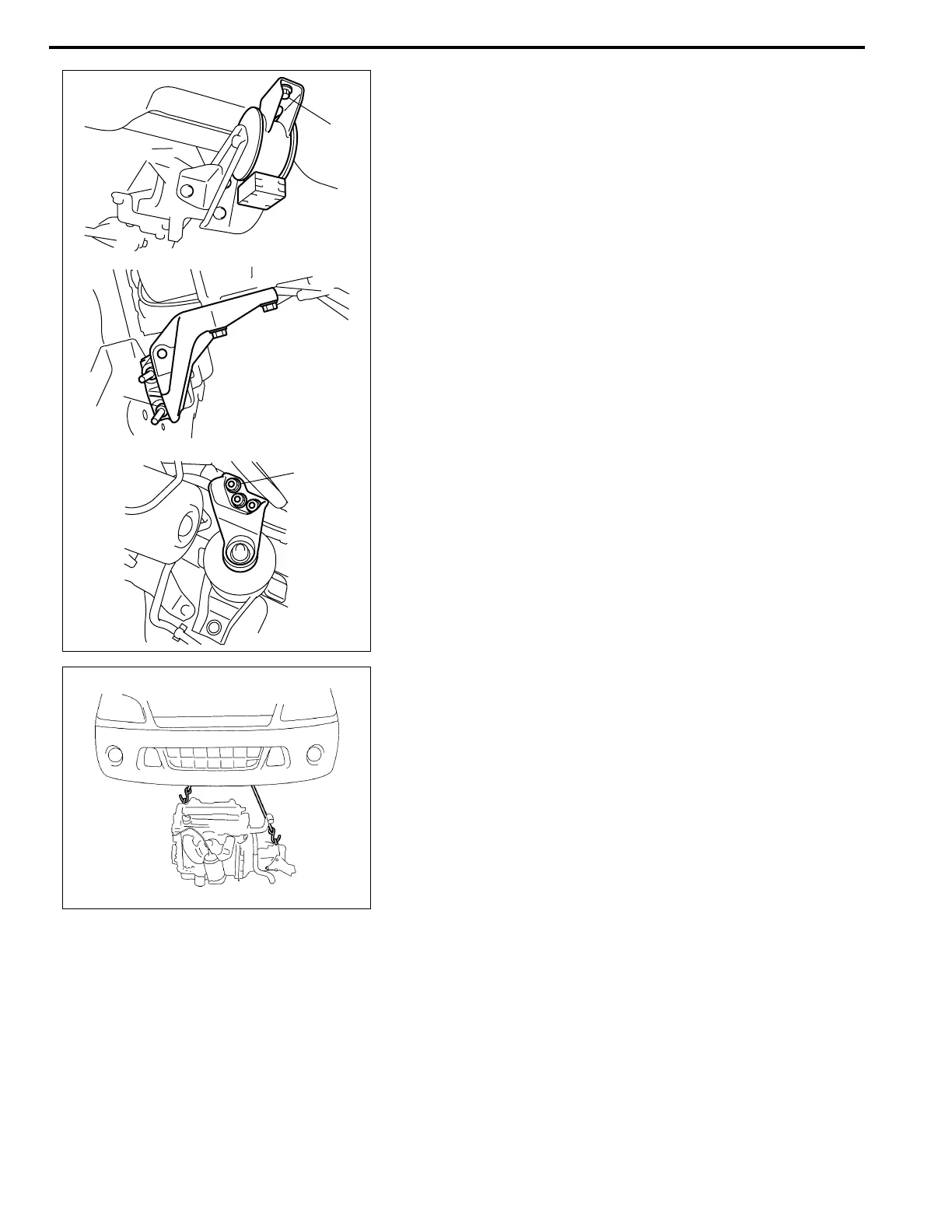

22) Remove engine rear mounting bolts (1), engine left mounting
bracket nuts (2) and engine right mounting nuts (3).
23) Before removing engine with transaxle from body, recheck to
make sure all hoses, electric wires and cables are discon-
nected from engine and transaxle.
24) Lower engine with transaxle from body.
25) Disconnect transaxle from engine referring to “Transaxle Unit
Dismounting and Remounting” in Section 7A2.
26) Remove clutch cover and clutch disk referring to “Clutch
Cover, Clutch Disc and Flywheel Removal and Installation” in
Section 7C2.
Installation
1) Install clutch cover and clutch disk referring to “Clutch Cover,
Clutch Disc and Flywheel Removal and Installation” in Sec-
tion 7C2.
2) Connect transaxle to engine referring to “Transaxle Unit Dis-
mounting and Remounting” in Section 7A2.
1
2
3
NOTE:
Before lowering engine, to avoid damage to A/C com-
pressor, raise it through clearance made on engine
crankshaft pulley side. At this time, use care so that no
excessive force is applied to hoses.
