7B1-50 AUTOMATIC TRANSAXLE (M13 ENGINE)
DTC P0705 Transmission Range Sensor Circuit Malfunction

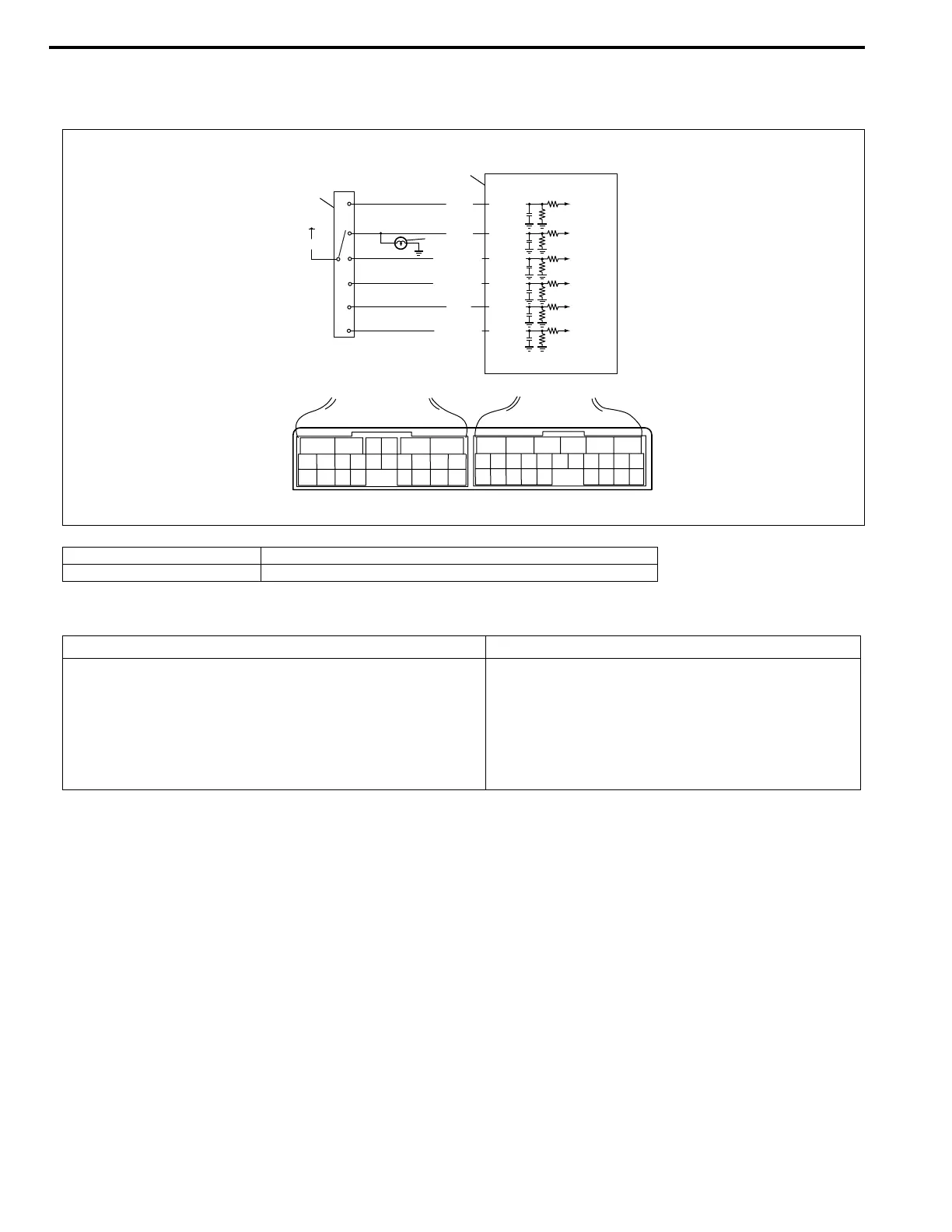

Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
1) Connect scan tool to DLC with ignition switch OFF.
2) Clear DTCs in TCM memory by using scan tool.
3) Start engine and shift select lever to “D” range.
4) Keep engine running at idle speed for 25 seconds or more.
5) Stop vehicle and check DTC.
1. TCM 3. Backup lamp
2. Transmission range sensor [A]: Terminal arrangement of TCM connector (viewed from harness side)
DTC DETECTING CONDITION TROUBLE AREA
• Multiple signals are inputted simultaneously for 12 sec-
onds.
• Select cable maladjusted.
• Transmission range sensor (switch) malad-
justed.
• Transmission range sensor (switch) or its circuit
malfunction.
• TCM
2
P
R
N
D
2
L
3
1
ORN
RED
GRN/RED
BLU/YEL
GRN
IG11
YEL
GRN/BKL
E12-20
E12-1
E12-8
E12-7
E12-19
E12-18
E13
20 19
87
18
1
E12
[A]
