AUTOMATIC TRANSAXLE (M13 ENGINE) 7B1-159

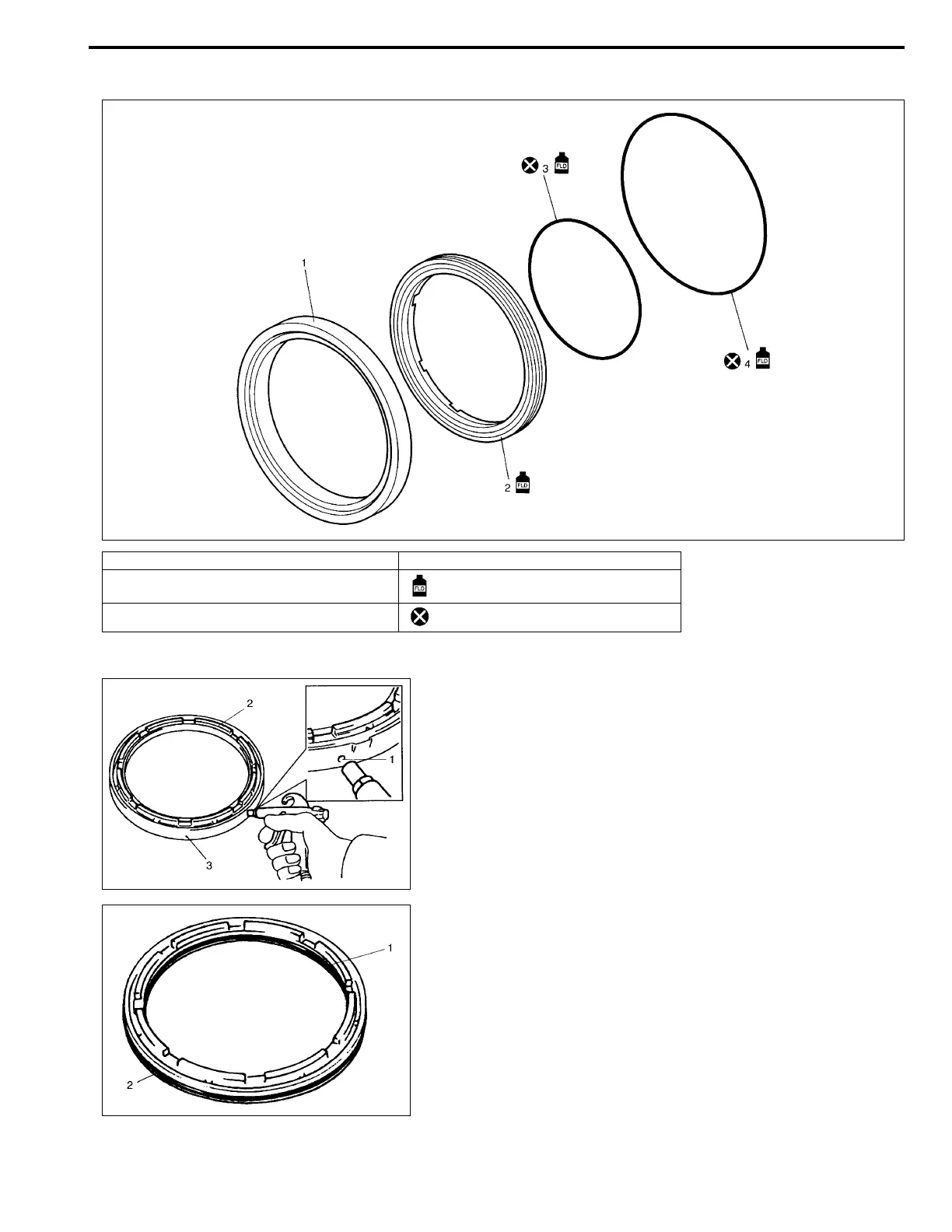

2nd brake piston assembly
Disassembly
1) Apply compressed air (400 – 800 kPa, 4 – 8 kg/cm
2
, 57 –
113 psi) to oil hole (1) of 2nd brake cylinder (3) to remove
2nd brake piston (2).
2) Remove inner O-ring (1) and outer O-ring (2).
1. 2nd brake cylinder 4. Outer O-ring
2. 2nd brake piston Apply automatic transaxle fluid.
3. Inner O-ring Do not reuse.
