CLUTCH (G10/M13 ENGINES) 7C-9

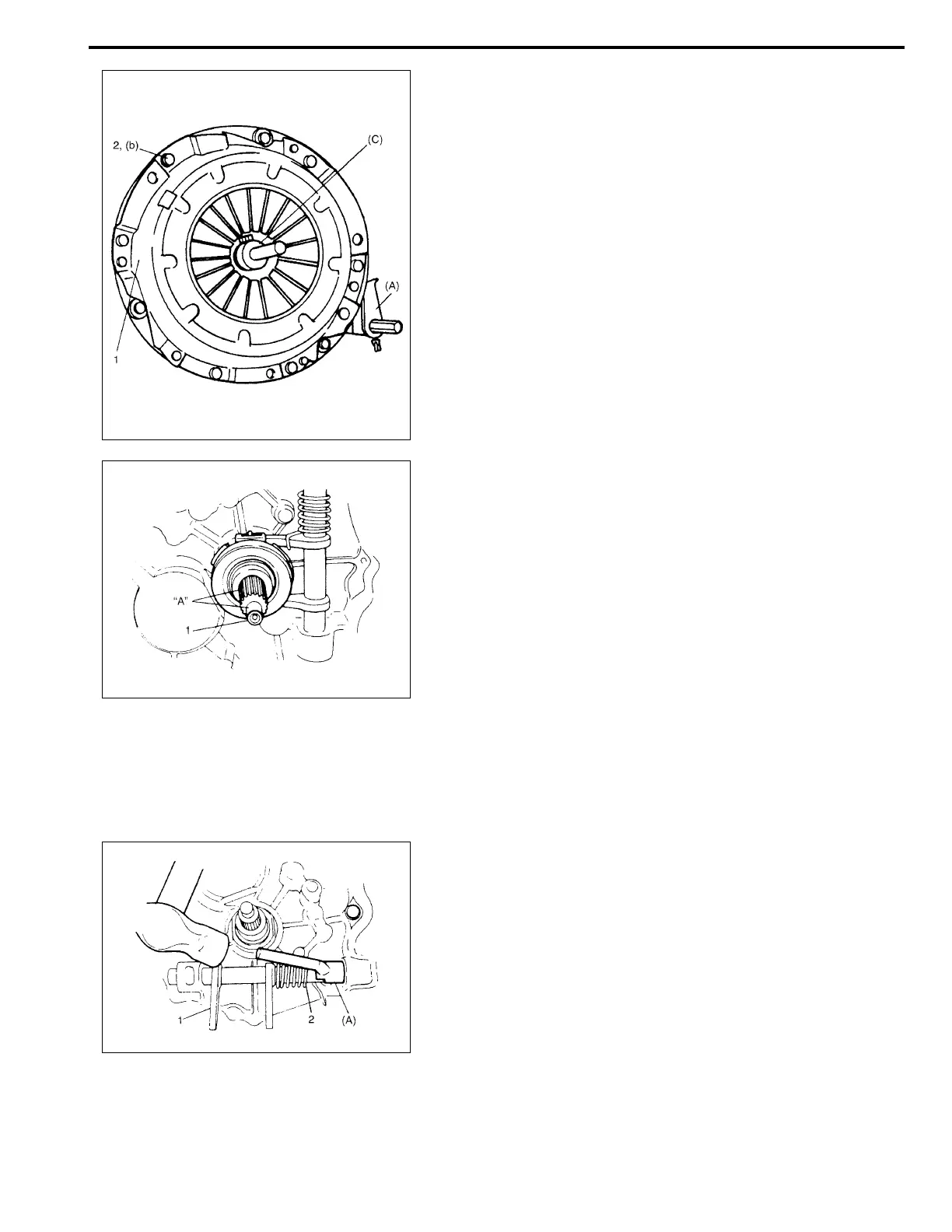

3) Aligning clutch disc to flywheel center using special tool,
install clutch cover (1) and bolts (2). Then tighten bolts to
specification.
Special tool
(A): 09924-17810
(C): 09923-36320 (M13 engine)
(C): 09923-36330 (G10 engine)
Tightening torque
Clutch cover bolt (b): 23 N·m (2.3 kg-m, 16.5 lb-ft)
4) Slightly apply grease to input shaft (1), then join transaxle
assembly with engine referring to “Unit Repair Overhaul” in
Section 7A of the service manual mentioned in the FORE-
WORD of this manual or “Transaxle Unit Dismounting and
Remounting” in Section 7A2.
“A”: Grease 99000-25210
Clutch Release Bearing / Shaft / Bush / Lever
REMOVAL
1) Remove release lever by loosening its bolt.
2) Take out release bearing by turning release shaft (1).
3) Unhook return spring (2) using pliers.
4) Drive out No.2 bush using special tool and hammer.
Release shaft seal will also be pushed out.
Special tool
(A): 09922-46010
5) Remove release shaft (1) and return spring (2).
NOTE:
• While tightening clutch cover bolts, compress clutch
disc with special tool (C) by hand so that disc cen-
tered.
• Tighten cover bolts little by little evenly in diagonal
order.
NOTE:
When inserting transaxle input shaft to clutch disc, turn
crankshaft little by little to match splines.
