REAR DIFFERENTIAL 7F-9

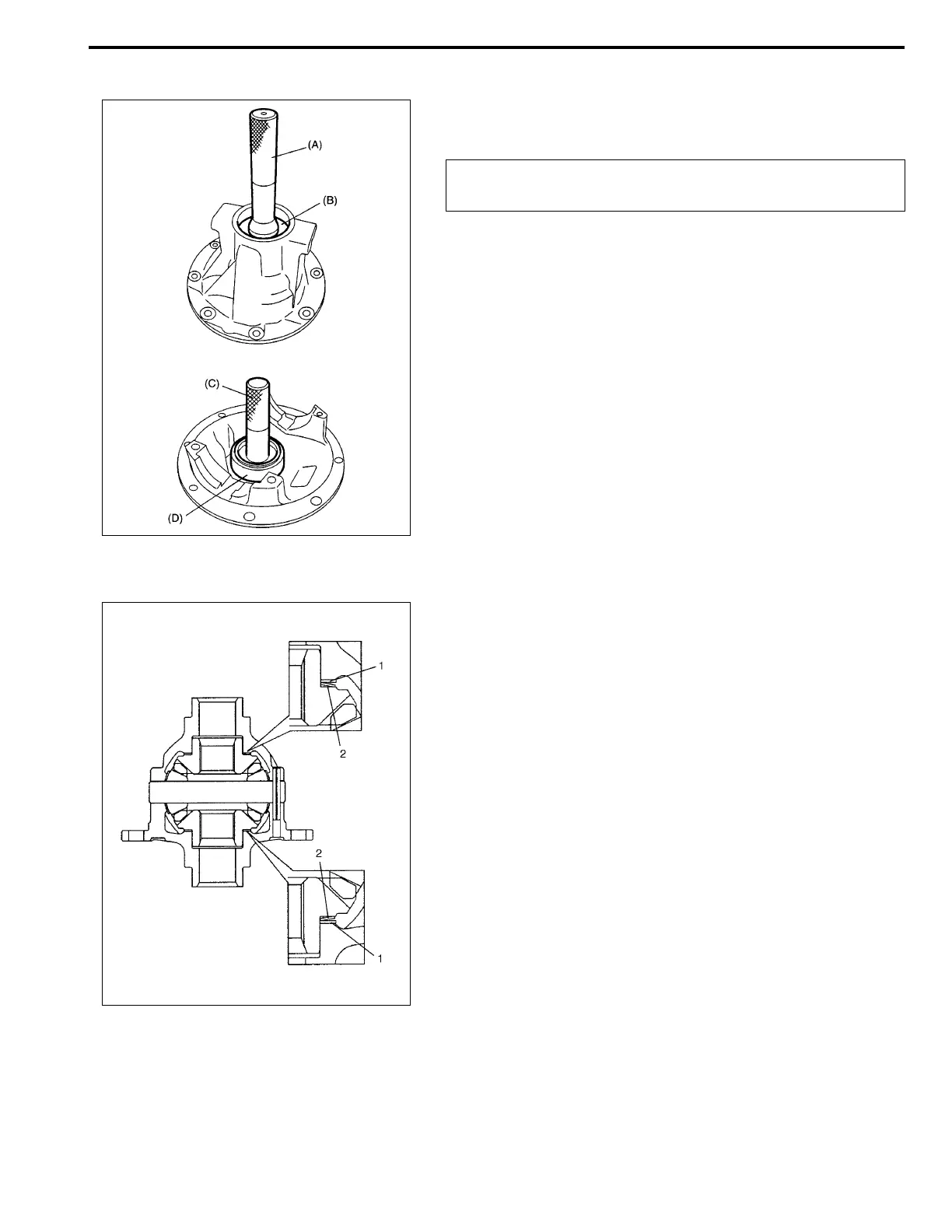

Drive bevel pinion bearing outer race
For press-fitting bevel pinion bearing outer races, use special
tools as shown.
Special tool
(A): 09925-98210
(B): 09941-34513-004
(C): 09924-74510
(D): 09951-16090
Differential case assembly
1) Assemble differential case assembly noting installing posi-
tion and direction of differential side gear washer (1) and
spring washer (2).
CAUTION:
Perform press-fitting carefully so as not to tilt outer race.
