7F-8 REAR DIFFERENTIAL

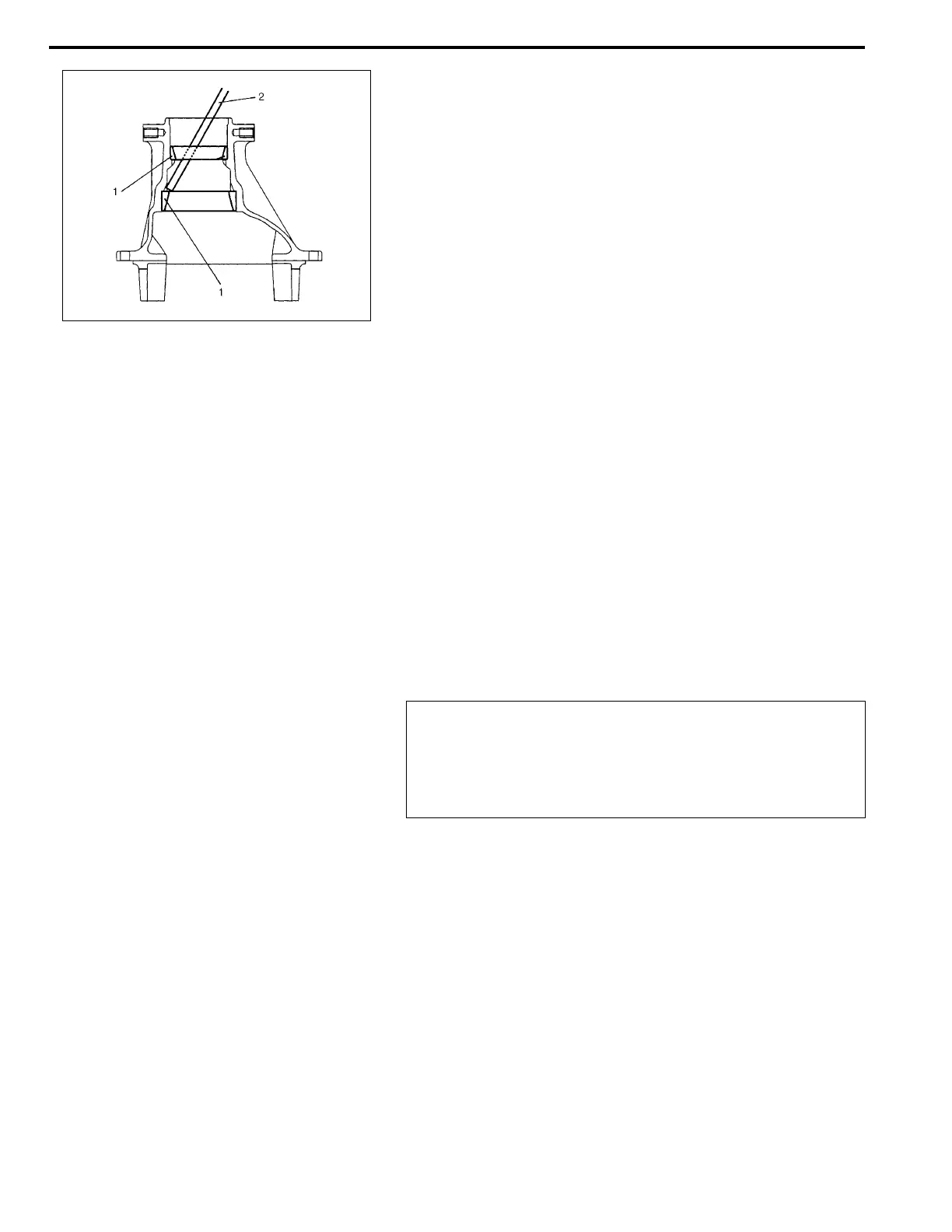

15) Drive out drive bevel pinion bearing outer races (1) by using
metallic stick (2).
INSPECTION
• Check companion flange for wear of damage.
• Check bearings for wear or discoloration.
• Check differential carrier for cracks.
• Check drive bevel pinion and bevel gear for wear or cracks.
• Check side gears, pinion gears and pinion shaft for wear or
damage.
• Check side gear spline for wear or damage.
ADJUSTMENT AND ASSEMBLY
Judging from faulty conditions noted before disassembly and
what is found through visual check of bearing and gear tooth etc.
after disassembly, prepare replacing parts and proceed to reas-
sembly according to procedures as described below. Make sure
that all parts are clean.
CAUTION:
• Drive bevel gear and pinion must be replaced as a set
when either replacement becomes necessary.
• When replacing taper roller bearing, replace as inner
race & outer race assembly.
