AUTOMATIC TRANSAXLE (M13 ENGINE) 7B1-53
DTC P0707 Transmission Range Sensor Circuit Low

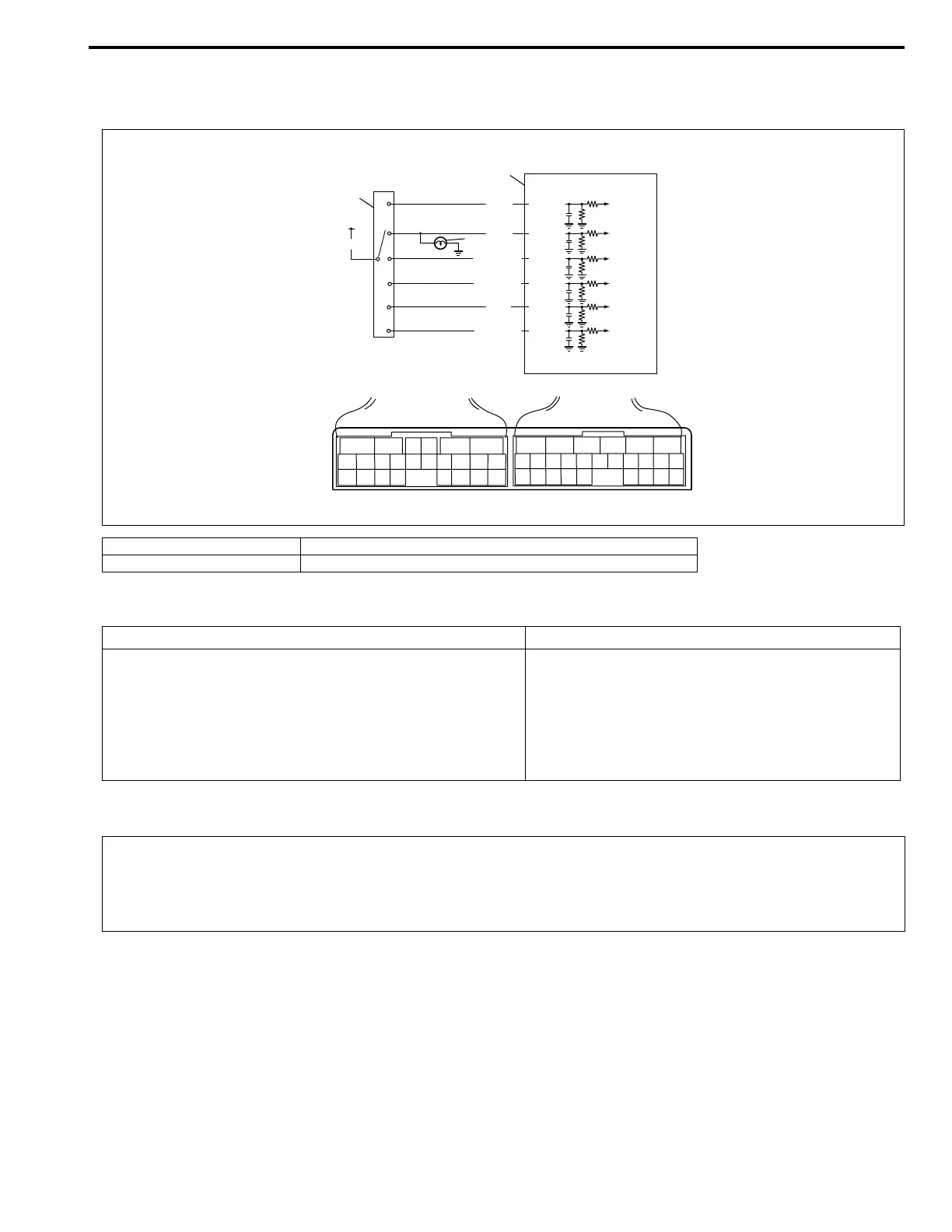

Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
1) Connect scan tool to DLC with ignition switch OFF.
2) Clear DTCs in TCM memory by using scan tool.
3) Start engine and shift select lever.
4) Shift select lever to “D” range.
5) Start vehicle and increase vehicle speed to 40 km/h (25 mile/h) or more for 1 minutes.
6) Stop vehicle and turn ignition switch OFF.
7) Repeat Step 3) to 5) one time.
8) Stop vehicle and check DTC.
1. TCM 3. Backup lamp
2. Transmission range sensor [A]: Terminal arrangement of TCM connector (viewed from harness side)
DTC DETECTING CONDITION TROUBLE AREA
• Transmission range switch signal (P, R, N, D, 2, or L) is
not inputted for more than 32 seconds when vehicle
speed is faster than 30 km/h (19 mile/h) and engine
speed is faster than 1,500 rpm.
• Select cable maladjusted.
• Transmission range sensor (switch) malad-
justed.
• Transmission range sensor (switch) or its circuit
malfunction.
• TCM
2
P
R
N
D
2
L
3
1
ORN
RED
GRN/RED
BRU/YEL
GRN
IG11
YEL
GRN/BKL
E12-20
E12-1
E12-8
E12-7
E12-19
E12-18
E13
20 19
87
18
1
E12
[A]
WARNING:
• When performing a road test, select a place where there is no traffic or possibility of a traffic acci-
dent and be very careful during testing to avoid occurrence of an accident.
• Road test should be carried out with 2 persons, a driver and tester, on a level road.
To Next Page
