AUTOMATIC TRANSAXLE (M13 ENGINE) 7B1-157

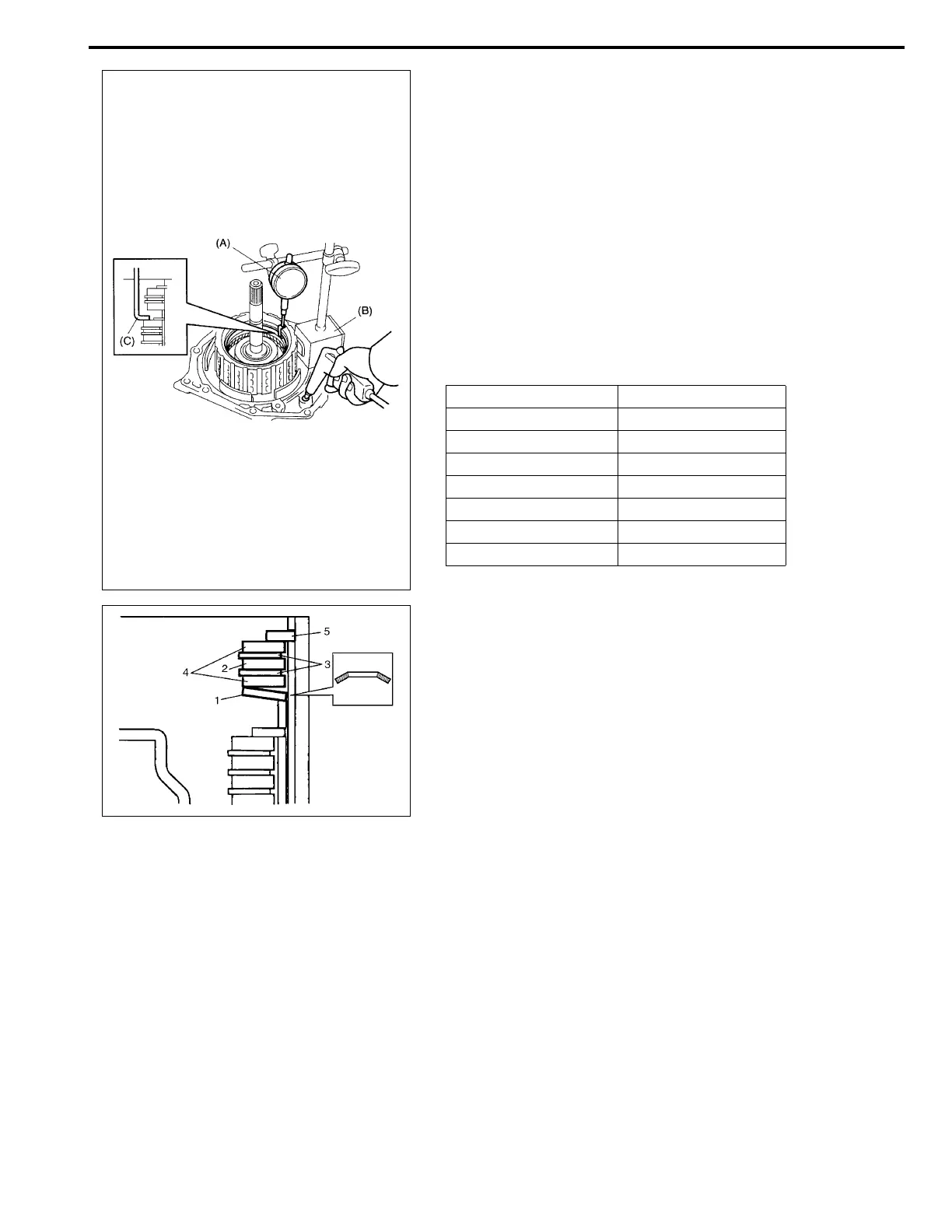

• Measure forward clutch piston stroke in the same manner as
“Preliminary Check”.
Special tool
(A): 09900-20607
(B): 09900-20701
(C): 09952-06020
Forward clutch piston stroke: 1.30 – 1.50 mm (0.051 –
0.059 in.)
When piston stroke is out of specification, select forward clutch
retaining plate with proper thickness from among the list below
and replace it.
Available forward clutch retaining plate thickness
• Install reverse clutch cushion plate (1) in correct direction as
shown in figure.
• Apply A/T fluid to reverse clutch cushion plate (1) reverse
clutch separator plate (2) disces (3) and retaining plate (4).
• Install reverse clutch cushion plate (1) reverse clutch separa-
tor plate (2) disces (3) retaining plate (4) and then snap ring
(5) to intermediate shaft subassembly.
Thickness Identification mark
3.0 mm (0.118 in.) 1
3.1 mm (0.122 in.) 5
3.2 mm (0.126 in.) 2
3.3 mm (0.130 in.) 6
3.4 mm (0.134 in.) 3
3.5 mm (0.138 in.) 7
3.6 mm (0.142 in.) 4
