7A2-12 MANUAL TRANSAXLE (M13 ENGINE)

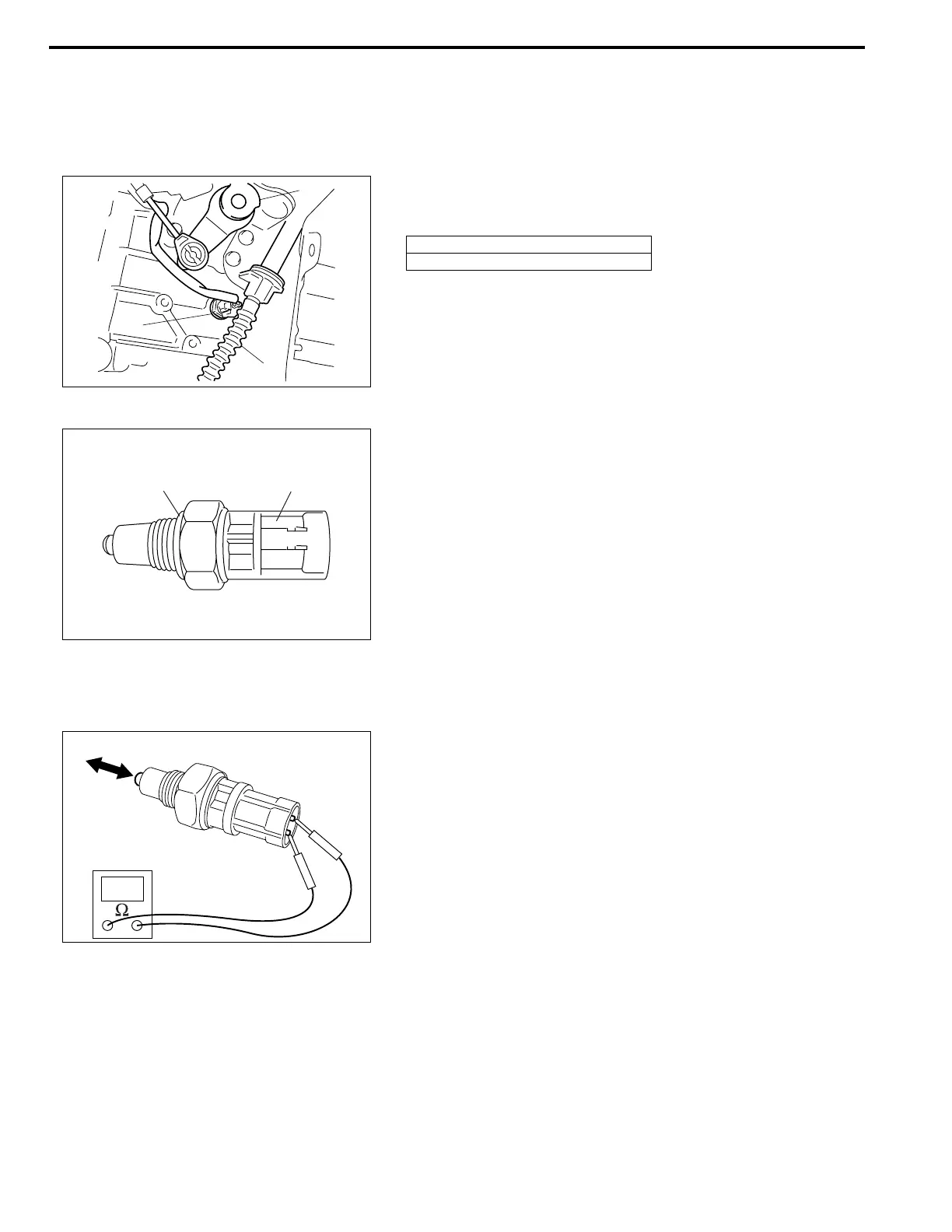

Back Up Lamp Switch Removal and Installa-
tion
Removal
1) Disconnect negative cable at battery.
2) Disconnect back up lamp switch coupler.
3) Remove back up lamp switch (1).
Installation
1) Apply oil to new O-ring (1) and tighten back up lamp switch
(2) to specified torque.
Tightening torque
Back up lamp switch (a): 23 N·m (2.3 kg-m, 17.0 lb-ft)
2) Connect back up lamp switch coupler.
3) Connect negative cable at battery.
Back Up Lamp Switch Inspection
Check backup lamp switch for function using ohmmeter.
Switch ON: Continuity
Switch OFF: No continuity
2. Clutch cable
3. Gear shift and select shaft assembly
3
1
2
12
OFF
ON
