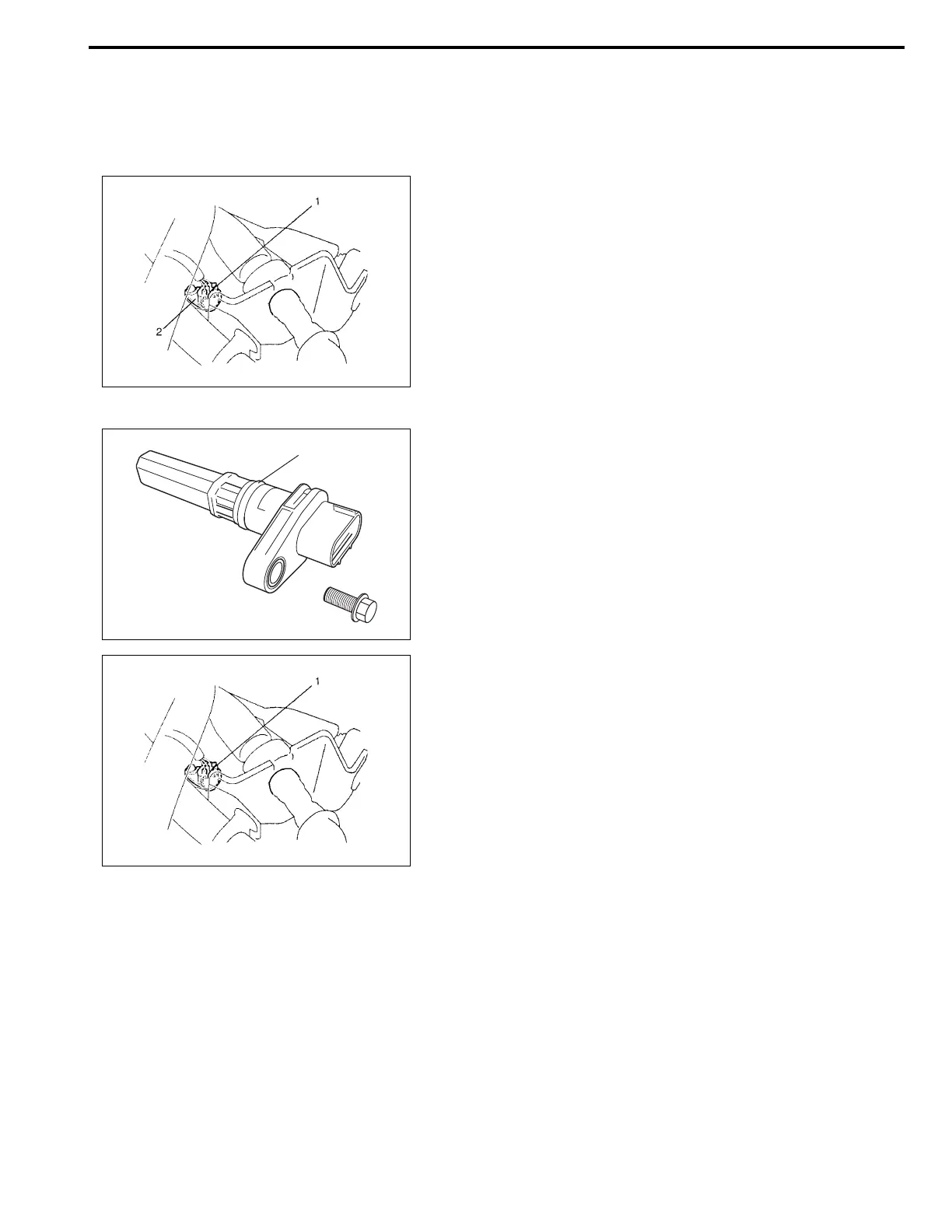

MANUAL TRANSAXLE (M13 ENGINE) 7A2-11

Vehicle Speed Sensor (VSS) Removal and

Installation

Removal

1) Disconnect negative cable at battery.

2) Disconnect VSS coupler (1).

3) Remove VSS (2).

Installation

1) Apply oil to new O-ring (1) and then install VSS to transaxle.

2) Connect VSS coupler (1).

3) Connect negative cable at battery.
