7B1-164 AUTOMATIC TRANSAXLE (M13 ENGINE)
• Do not damage O/D and 2nd coast brake return spring sub-
assembly and piston by pressing in O/D and 2nd coast brake
return spring subassembly passing through its original
installing position over 1.0 mm (0.039 in.).
Special tool
(A): 09926-96030
(B): 09946-06710

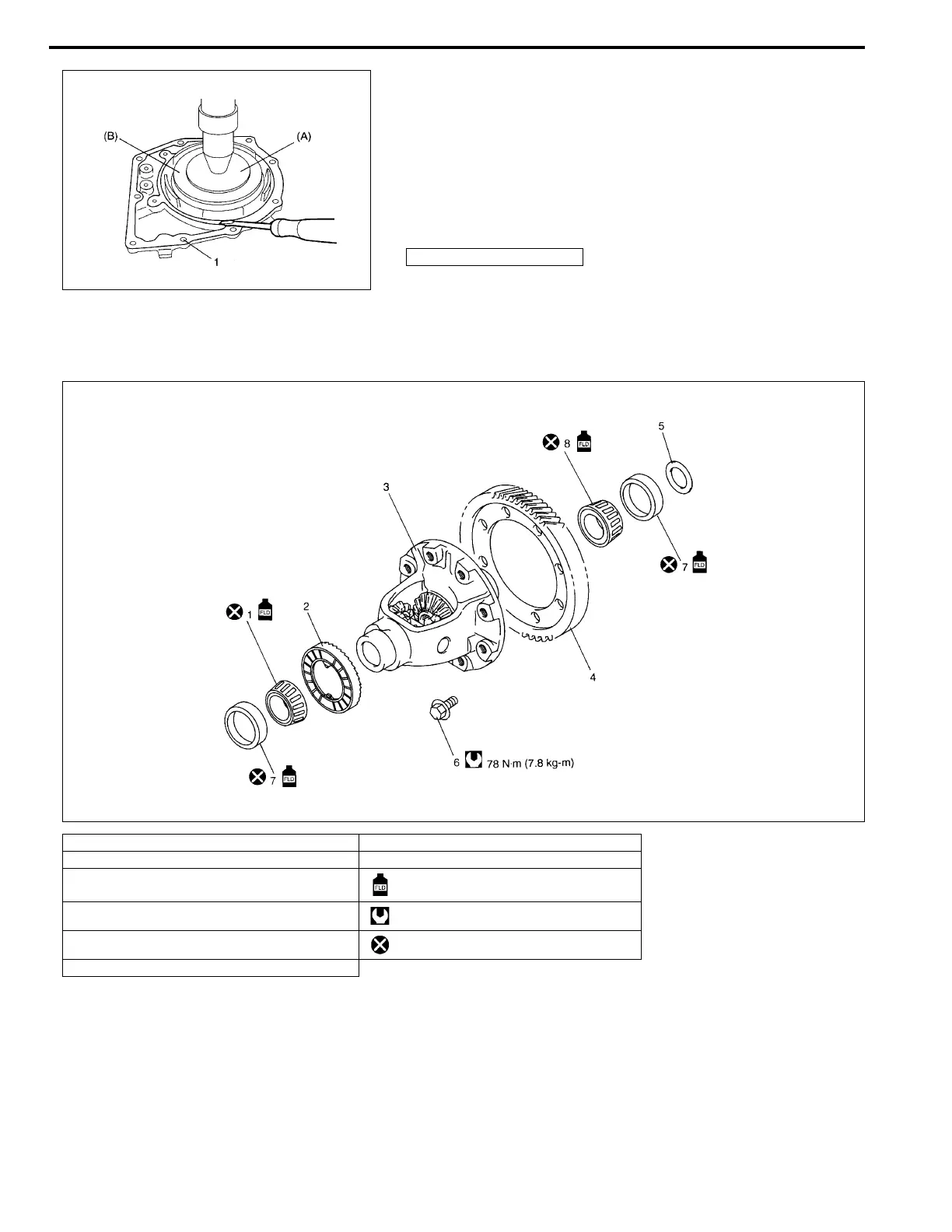

Differential Assembly
1. Transaxle rear cover
1. Differential side RH bearing 7. Side bearing cup
2. Output shaft speed sensor (VSS) drive gear 8. Differential side LH bearing
3. Differential case subassembly Apply automatic transaxle fluid.
4. Final gear Tightening torque
5. Side bearing shim Do not reuse.
6. Final gear bolt
To Next Page
