7A2-10 MANUAL TRANSAXLE (M13 ENGINE)
Gear Shift Control Lever and Cable Adjust-
ment

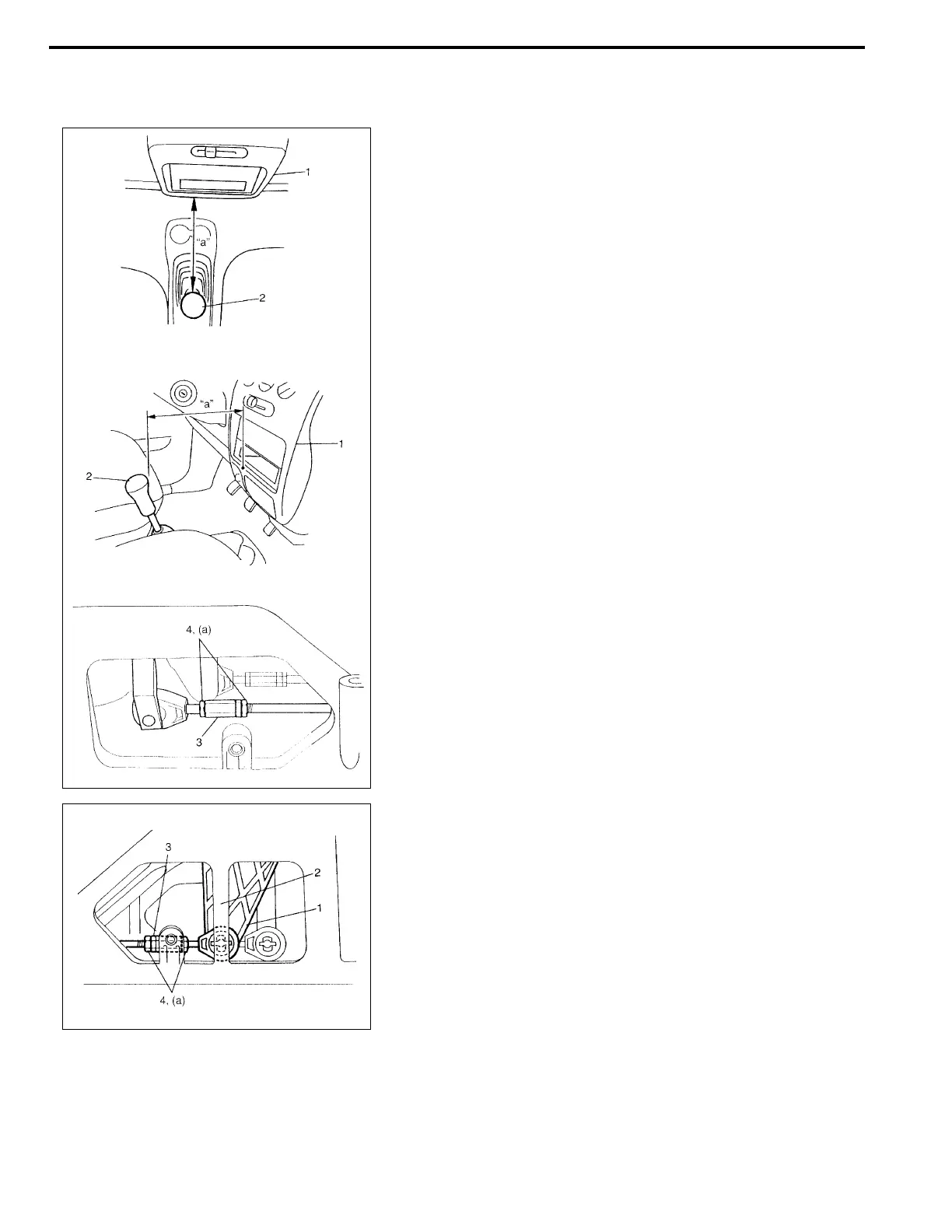

• Adjustment of shift cable:
a) With shift control lever in “NEUTRAL” position, adjust shift
cable adjusting nut (3) so that distance “a” between edge of
instrument panel (1) and center of shift knob (2) measured
as specified value.
Distance “a”: 156 mm (6.14 in.)
b) After shift cable adjustment, tighten cable lock nut (4) to
specified torque.
Tightening torque
Cable lock nut (a): 5.5 N·m (0.55 kg-m, 4.0 lb-ft)
c) Make sure that boots are installed correctly.
• Adjustment of select cable:
a) With shift control lever in “NEUTRAL” position, adjust select
cable adjusting nut (3) so that the tip of select arm (cable
joint point) (1) and the center rip of gear shift control lever
assembly (2) are aligned as shown.
b) After select cable adjustment, tighten cable lock nut (4) to
specified torque.
Tightening torque
Cable lock nut (a): 5.5 N·m (0.55 kg-m, 4.0 lb-ft)
