4A-6 FRONT DRIVE SHAFT (G10/M13 ENGINES)

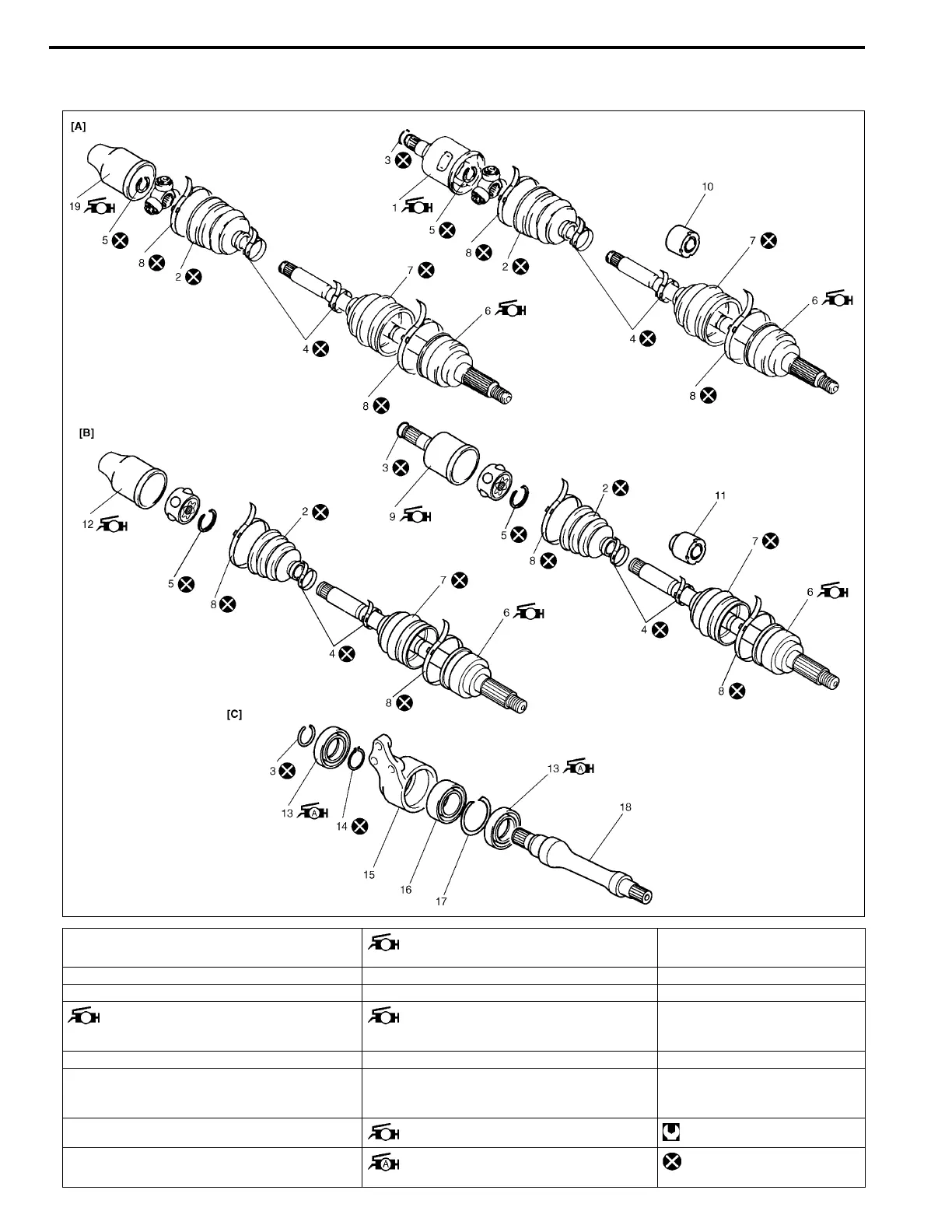

Front Drive Shaft Components
[A]: Tripod joint type 6. Wheel side joint (Constant velocity ball joint)
: Apply Black grease included in spare part to
joint.
14. Circlip
[B]: DOJ type 7. Boot (Wheel side) 15. Center bearing support
[C]: Center shaft for 2WD model with M13 engine 8. Boot band (Large) 16. Center bearing
1. Differential side joint (Right side of 4WD model
with M13 engine)
: Apply Black grease included in spare part to
joint.
9. Differential side joint (LH of all models)
: Apply Black grease included in spare part to
joint.
17. Circlip
2. Boot (Differential, transfer or center shaft side) 10. Damper (Right side of G10 engine) 18. Center shaft
3. Circlip 11. Damper (Other than right side of G10 engine) 19. Center shaft side joint (Right side of
2WD model with M13 engine)
: Apply Dark brown grease included
in spare part to joint.
4. Boot band (Small) 12. Center shaft side joint (Right side of 2WD
model with M13 engine)
Tightening torque
5. Snap ring 13. Oil seal
: Apply grease 99000-25010 to oil seal lip.
Do not reuse.
