3D-6 FRONT SUSPENSION
• Install wheel and tighten wheel bolts to specified torque.
Tightening torque
Wheel bolt (a) 95 N
·
m (9.5 kg-m, 69.0 lb-ft)
• Confirm front end (wheel) alignment, referring to Section 3A.

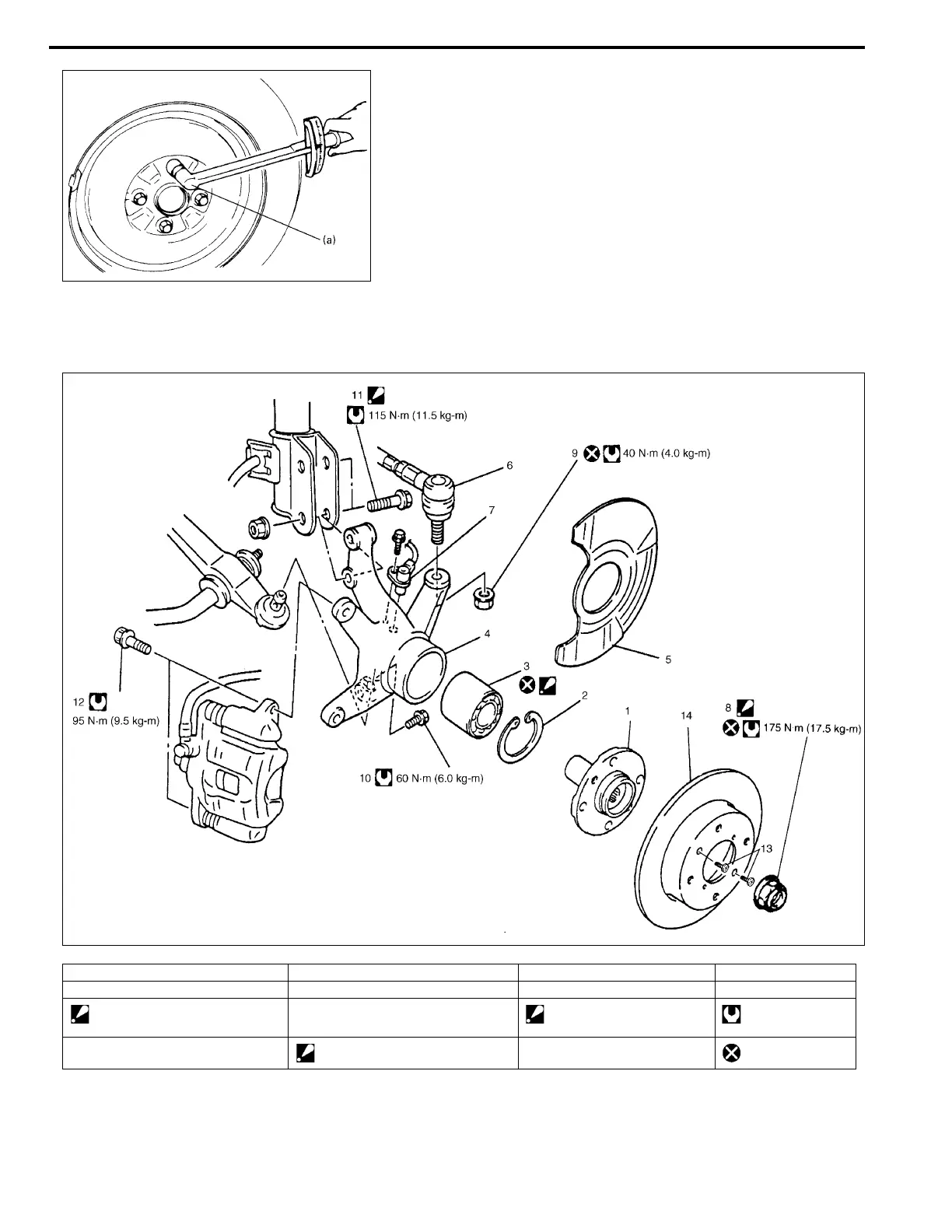

Steering Knuckle / Bearing
Components
1. Wheel hub 5. Dust cover 9. Tie-rod end nut 13. Brake disk screw
2. Circlip 6. Tie-rod end 10. Control arm ball stud bolt 14. Brake disc
3. Wheel bearing:
Face grooved rubber seal side to
wheel hub.
7. Wheel speed sensor (if equipped) 11. Strut bracket bolt:
Insert from the direction as
shown.
Tightening torque
4. Steering knuckle 8. Drive shaft nut:
Calk, after tightening.
12. Brake caliper carrier bolt Do not reuse.
