FRONT SUSPENSION 3D-7

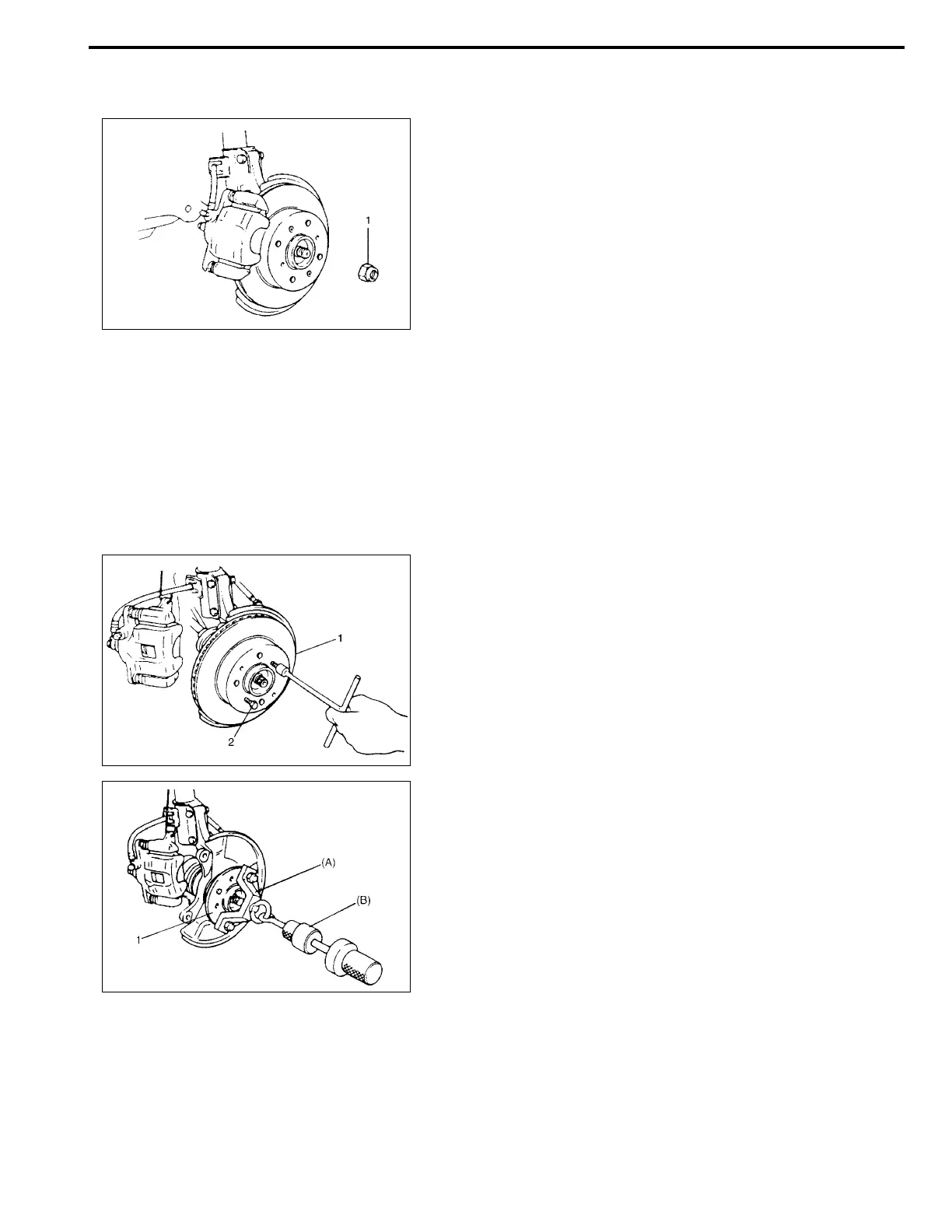

Removal
1) Hoist vehicle and remove wheel.
2) Uncaulk drive shaft nut (1).
3) Depress foot brake pedal and hold it there. Remove drive
shaft nut.
4) Remove caliper carrier bolts.
5) Remove caliper with carrier.
6) Remove brake disk screws.
7) Pull brake disc (1) off by using two 8 mm bolts (2).
8) Pull out wheel hub (1) with special tools.
Special tool
(A): 09943-17912
(B): 09942-15511
NOTE:
Hang removed caliper with a wire hook of the like so as
to prevent brake hose from bending and twisting exces-
sively or being pulled.
Don’t operate brake pedal with pads removed.
