6B2-14 ENGINE COOLING (M13 ENGINE)
Radiator Cooling Fan Inspection
For M/T vehicle
1) Check continuity between terminals. If there is no continuity,
replace radiator fan motor.

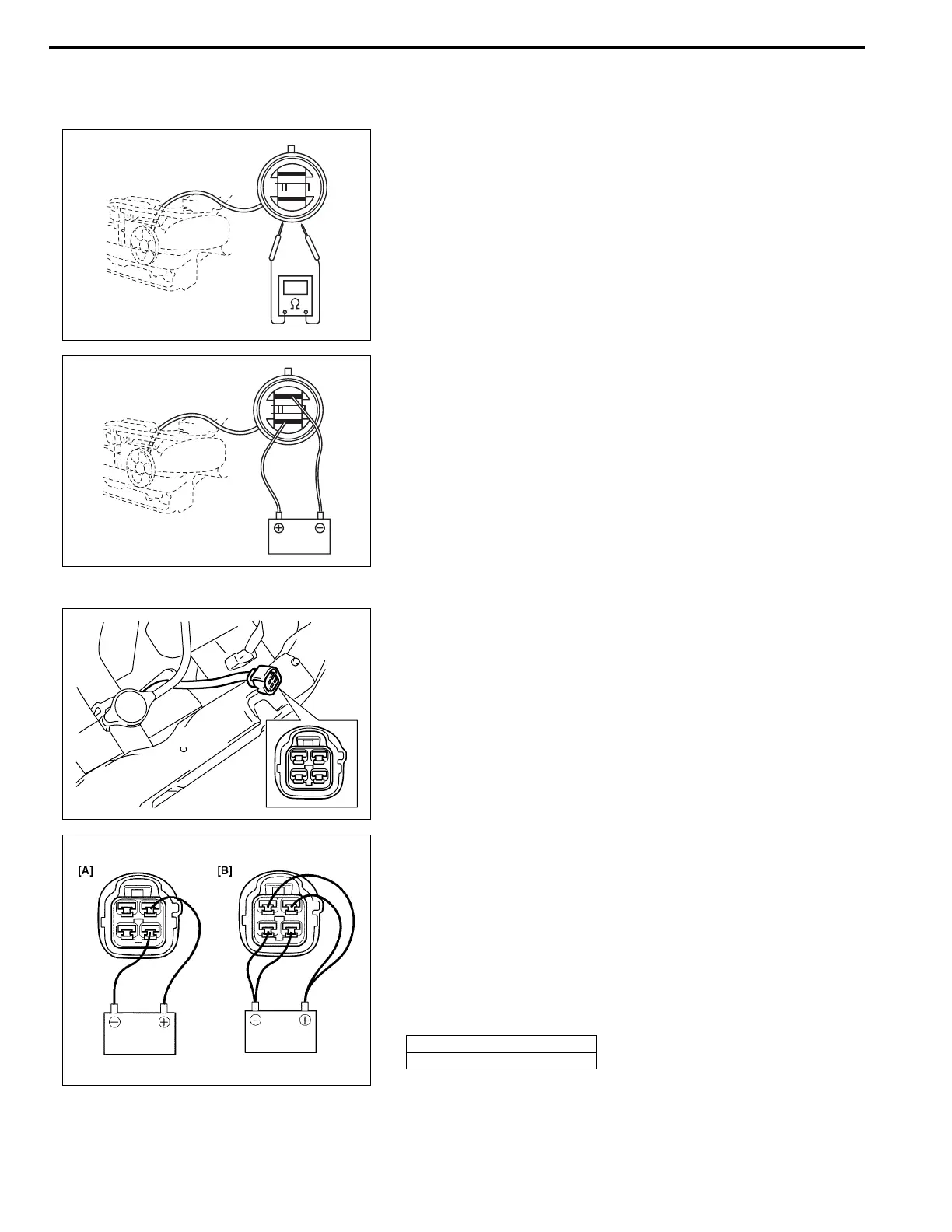

2) Connect battery to radiator fan motor coupler as shown in
figure, then check that the radiator fan motor operates
smoothly. If radiator fan motor does not operate smoothly,
replace motor.
Radiator cooling fan motor specified current at 12 V
10.0 A maximum
For A/T vehicle
1) Check continuity between terminals.
If there is no continuity, replace radiator fan motor.
2) Connect battery to radiator fan motor coupler as shown in
figure, then check that the radiator fan motor operates
smoothly, fan speed varies and that specified current.
If radiator fan motor does not operate smoothly, replace
motor.
Radiator cooling fan motor specified current at 12 V
LOW: 10 A maximum
HIGH: 15 A maximum
[A]: LOW
[B]: HIGH
