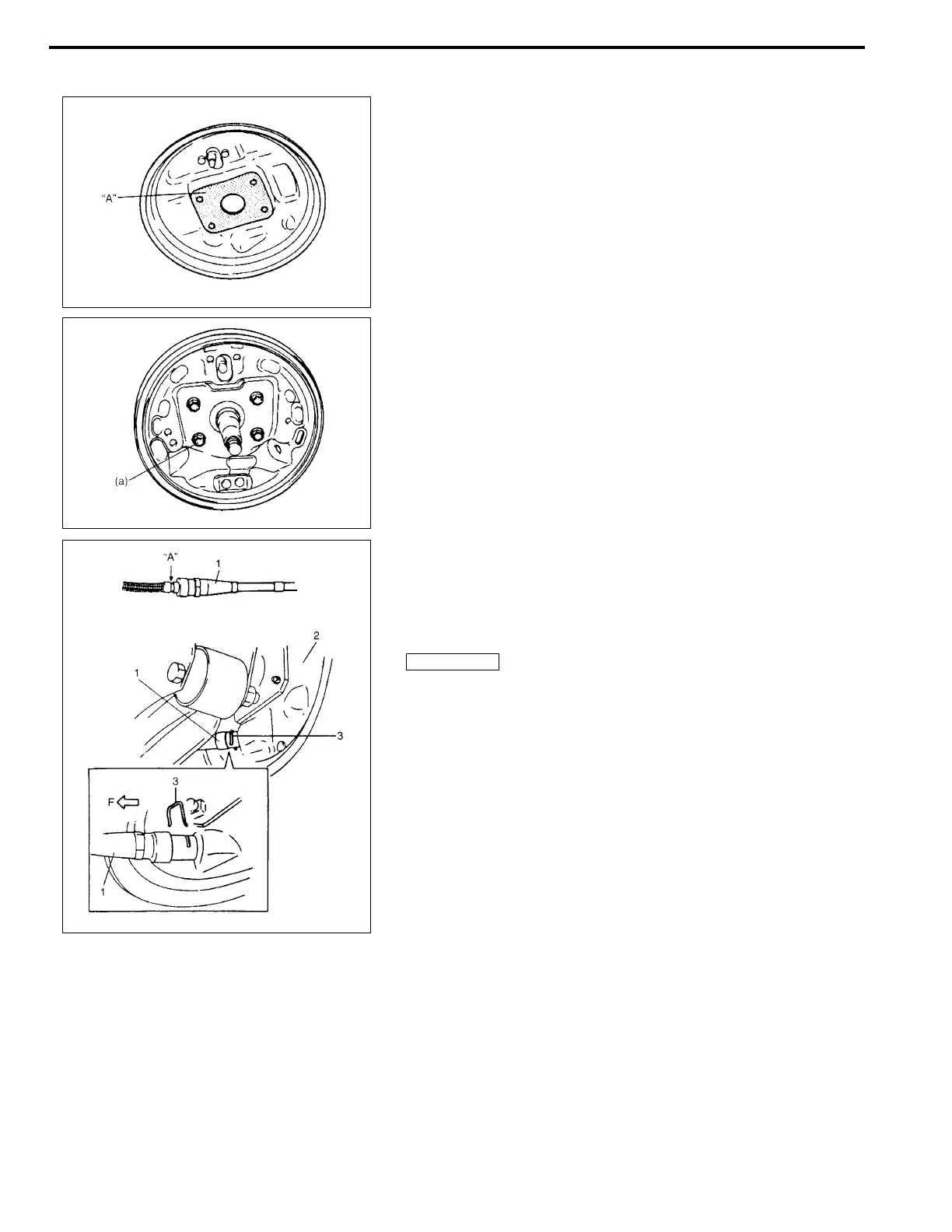

5C-10 PARKING AND REAR BRAKE
Installation
1) Apply water tight sealant to mating surfaces of brake back
plate and rear axle.
“A”: Sealant 366E, 99000-31090
2) Install brake back plate and tighten back plate bolts to speci-
fied torque.
Tightening torque
Brake back plate bolt (a): 24 N·m (2.4 kg-m, 17.5 lb-ft)
3) Apply water tight sealant where plate and cable contact, and
run parking brake cable (1) through brake back plate (2) and
secure it with clip (3).
“A”: Sealant 366E, 99000-31090
4) Install wheel cylinder, and tighten wheel cylinder bolts and
brake pipe flare nut to specified torque. Refer to steps 1) to
4) of “Wheel Cylinder Installation” in this section.
5) Install brake shoes, referring to steps 1) to 5) of “Brake Shoe
Installation” in this section.
6) Install brake drum. Refer to steps 3) to 8) of its “Installation”
in this section.
7) Fill reservoir with brake fluid and bleed brake system. For
bleeding operation, referring to “Bleeding Brake” in Section
5.
NOTE:
In case of vehicle equipped with ABS, do not apply seal-
ant around hole for wheel speed sensor.
F: Forward
