6A2-36 ENGINE MECHANICAL (M13 ENGINE)

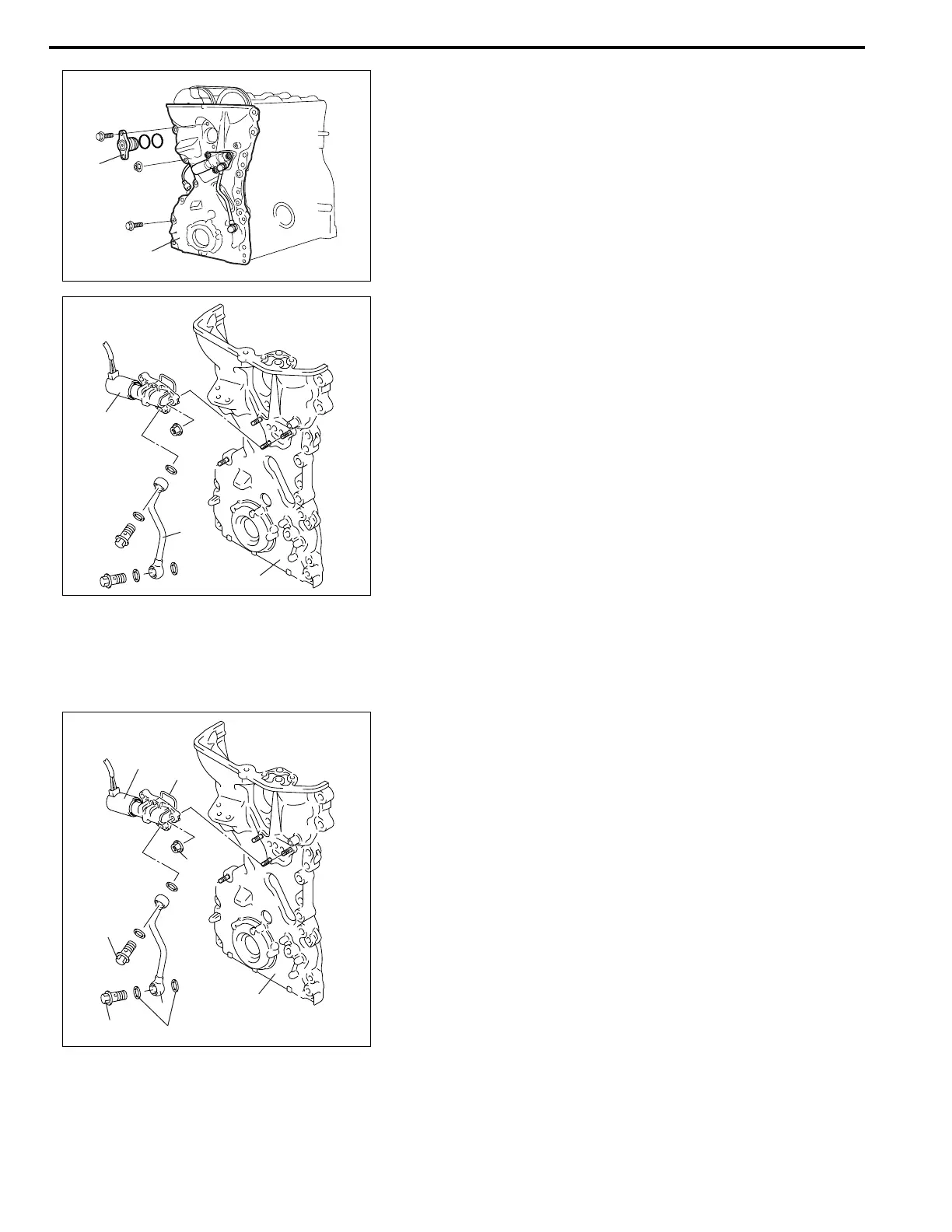

8) Remove water outlet cap (1) from timing chain cover (2).
9) Remove timing chain cover.
10) Remove oil gallery pipe No.1 (1) and oil control valve (2)
from timing chain cover (3).
Installation
1) Clean sealing surface on timing chain cover, cylinder block
and cylinder head.
Remove oil, old sealant and dust from sealing surface.
2) Install new O-ring (1) to oil control valve (2).
3) Install oil control valve to timing chain cover (3).
Tighten nuts to specification.
Tightening torque
Oil control valve mounting nut
(a): 11 N·m (1.1 kg-m, 8.0 lb-ft)
4) Install oil gallery pipe No.1 (4) with new copper washers (5)
to timing chain cover.
Tighten bolts to specification.
Tightening torque
Oil gallery pipe No.1 bolt
(b): 30 N·m (3.0 kg-m, 21.5 lb-ft)
1
2
1
2
3
1
2
3
4
5
(a)
(b)
(b)
To Next Page
