7A2-24 MANUAL TRANSAXLE (M13 ENGINE)

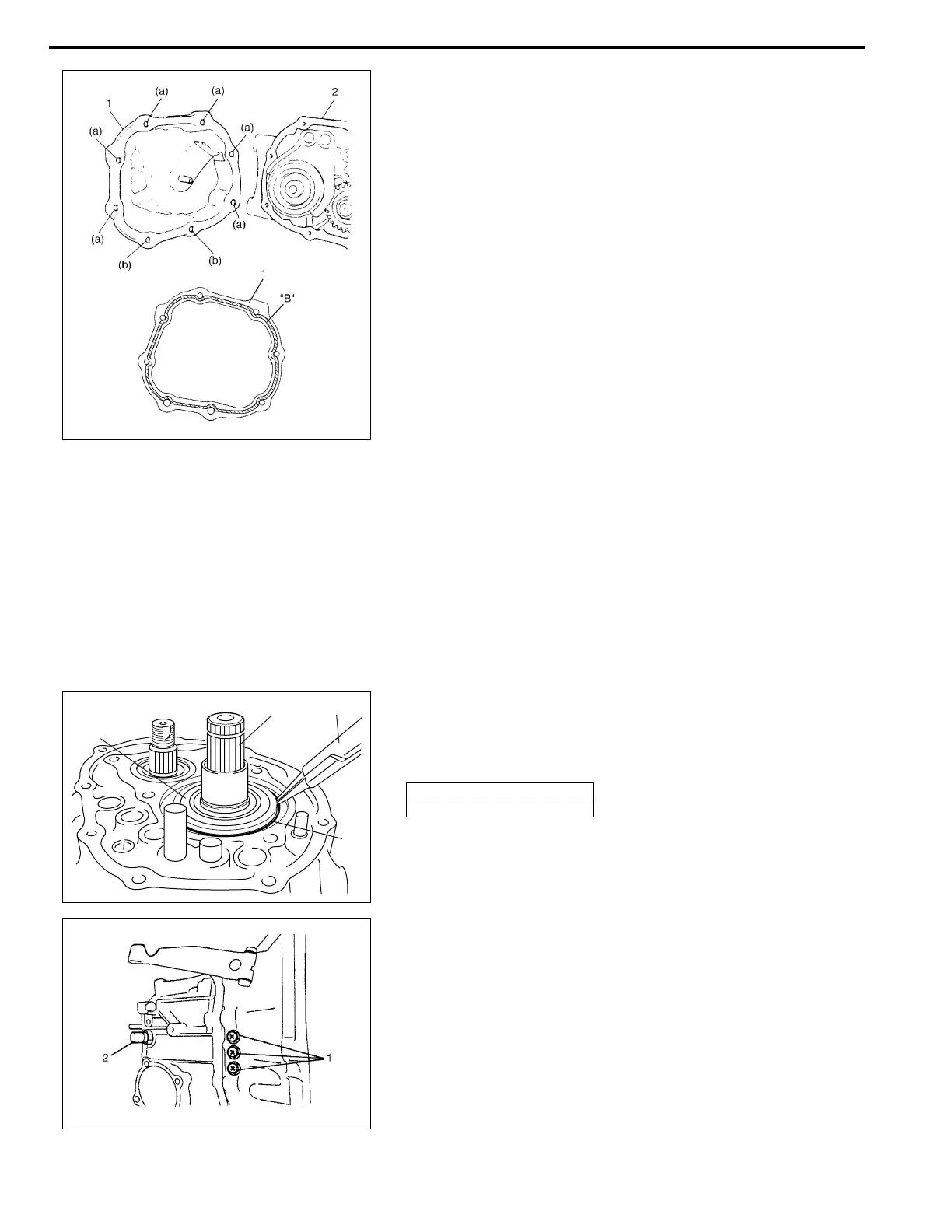

15) Clean mating surface of both left case (2) and side cover (1),
apply sealant to side cover (1) as shown in figure by such
amount that its section is 1.5mm (0.059 in.) in diameter,
mate it with left case and then tighten bolts.
“B”: Sealant 99000-31260
Tightening torque
Side cover No.1 bolt (a): 10 N·m (1.0 kg-m, 7.5 lb-ft)
Side cover No.2 bolt (b): 23 N·m (2.3 kg-m, 17.0 lb-ft)
Gear Shift Shaft, Input Shaft and Counter
Shaft Removal and Installation
Removal
1) Remove gear shift and select shaft assembly referring to
“Gear Shift and Select Shaft Assembly Removal and Installa-
tion” in this section.
2) Remove fifth gear referring to “Fifth Gear Disassembly and
Assembly” in this section.
3) Remove snap ring (1) using special tool.
Special tool
(A): 09900-06107
4) Remove gear shift locating bolts (1) with washers, then take
out locating springs and steel balls.
5) Remove back up lamp switch (2).
2. Input shaft
3. Input shaft left bearing
1
(A)
2
3
