7B1-80 AUTOMATIC TRANSAXLE (M13 ENGINE)
DTC Troubleshooting

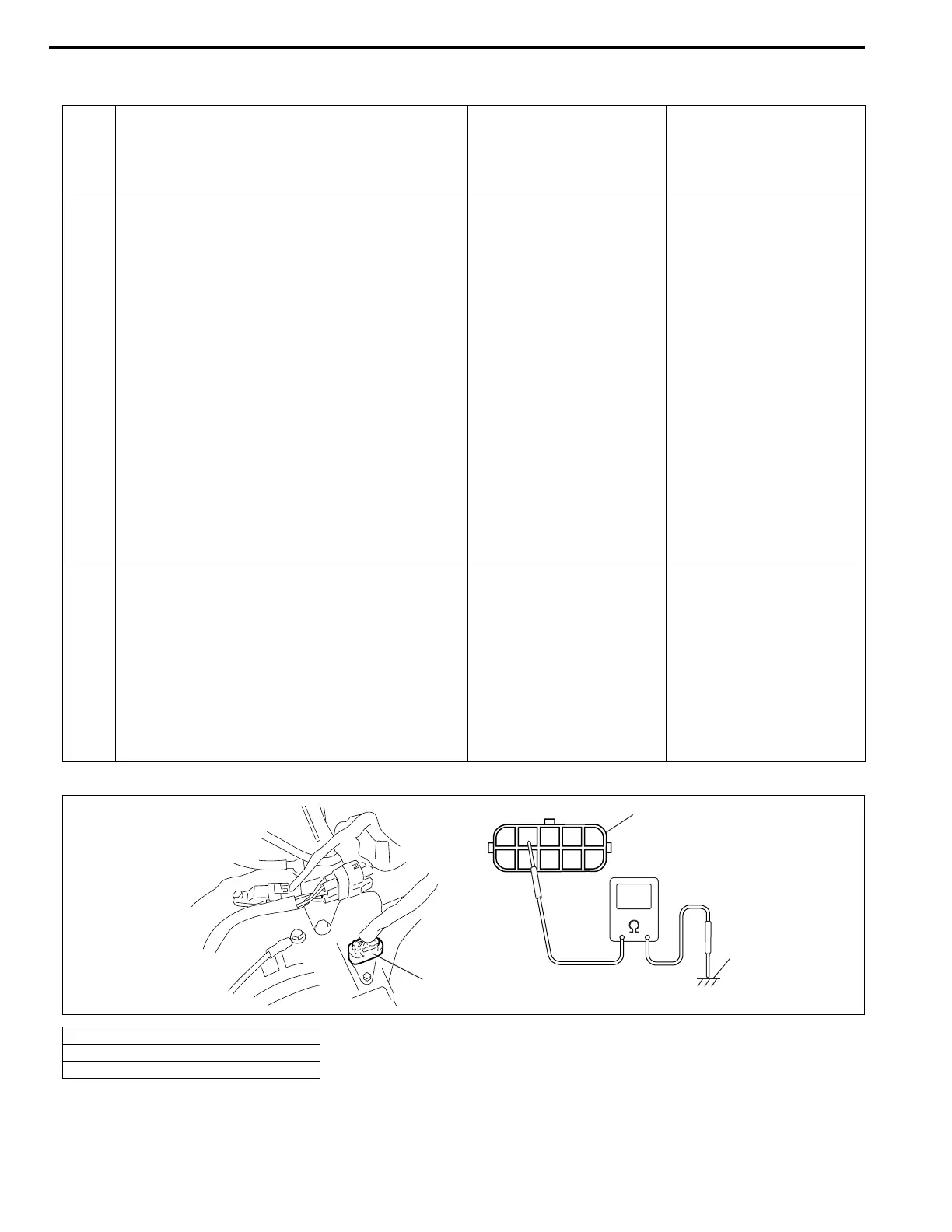

Fig. for Step 3.
Step Action Yes No
1Was “Automatic Transaxle Diagnostic Flow
Ta bl e ” performed?
Go to Step 2. Go to “Automatic Tran-
saxle Diagnostic Flow
Tabl e ” in this section.
2 Check TCC solenoid valve resistance
1) Turn ignition switch OFF
2) Disconnect valve body harness connector
on automatic transmission.
3) Check for proper connection to solenoid at
“WHT/BLU” circuit.
4) Check resistance of solenoid valve. See
Fig.
Resistance between TCC solenoid valve
terminals of transmission side valve body
harness connector: 11 – 15
Ω
at 20°C
(68°F)
Resistance between TCC solenoid valve
terminals of transmission side valve body
harness connector and transmission body:
Infinity
Is check results satisfactory?
Go to Step 3. Replace TCC solenoid
valve or lead wire.
3 Check TCC solenoid valve circuit for ground
short
1) Disconnect TCM connectors.
2) Check for proper connection to TCM at ter-
minals “E13-5”.
3) If connection is OK, check continuity
between terminal “E13-5” of disconnected
harness side TCM connector and ground.
Is continuity indicated?
“WHT/BLU” circuit
shorted to ground.
Intermittent trouble or
faulty TCM. Check for
intermittent referring to
“Intermittent and Poor
Connection” in Section
0A. If OK, substitute a
known-good TCM and
recheck.
1. Valve body harness connector on harness
2. Valve body harness connector on transaxle
3. Ground (transaxle)
1
6
7
89
10
5
43
2
1
2
3
