7B1-112 AUTOMATIC TRANSAXLE (M13 ENGINE)
Installation
Reverse removal procedure to install solenoid wire harness and
valve body assembly noting the following points.
• For details of valve body assembly and their connectors
installation, refer to “Unit Assembly” in this section.
• For details of A/T oil pan installation, refer to “Unit Assembly”
in this section. Use new oil pan gasket.

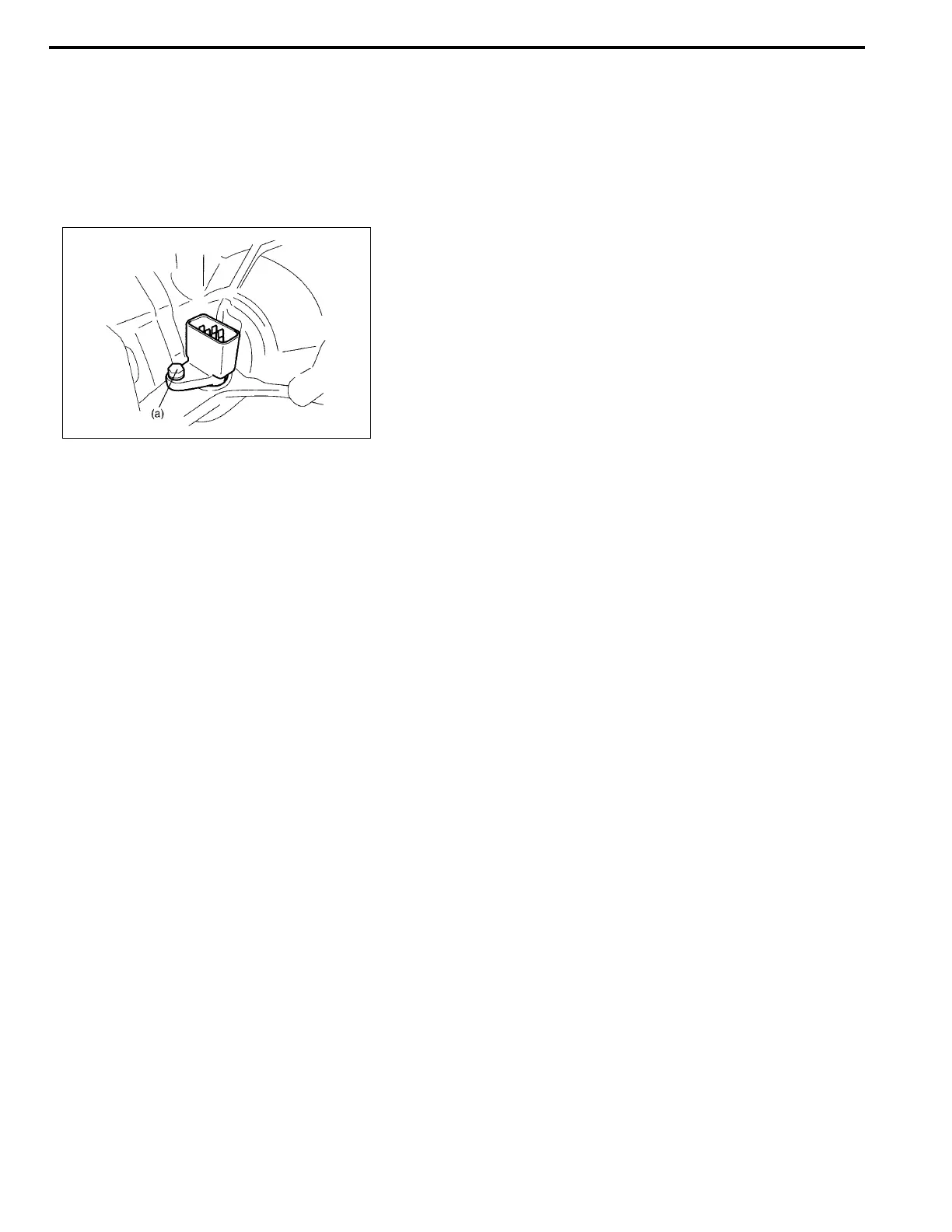

• Tighten valve body harness connector bolt to specified
torque.
Tightening torque
Valve body harness connector bolt
(a): 5.5 N·m (0.55 kg-m, 4.0 lb-ft)
• Pour A/T fluid and check fluid level according to procedure
described in “Fluid Change” in this section.
• Check for fluid leakage after warning up A/T.
