AUTOMATIC TRANSAXLE (M13 ENGINE) 7B1-135

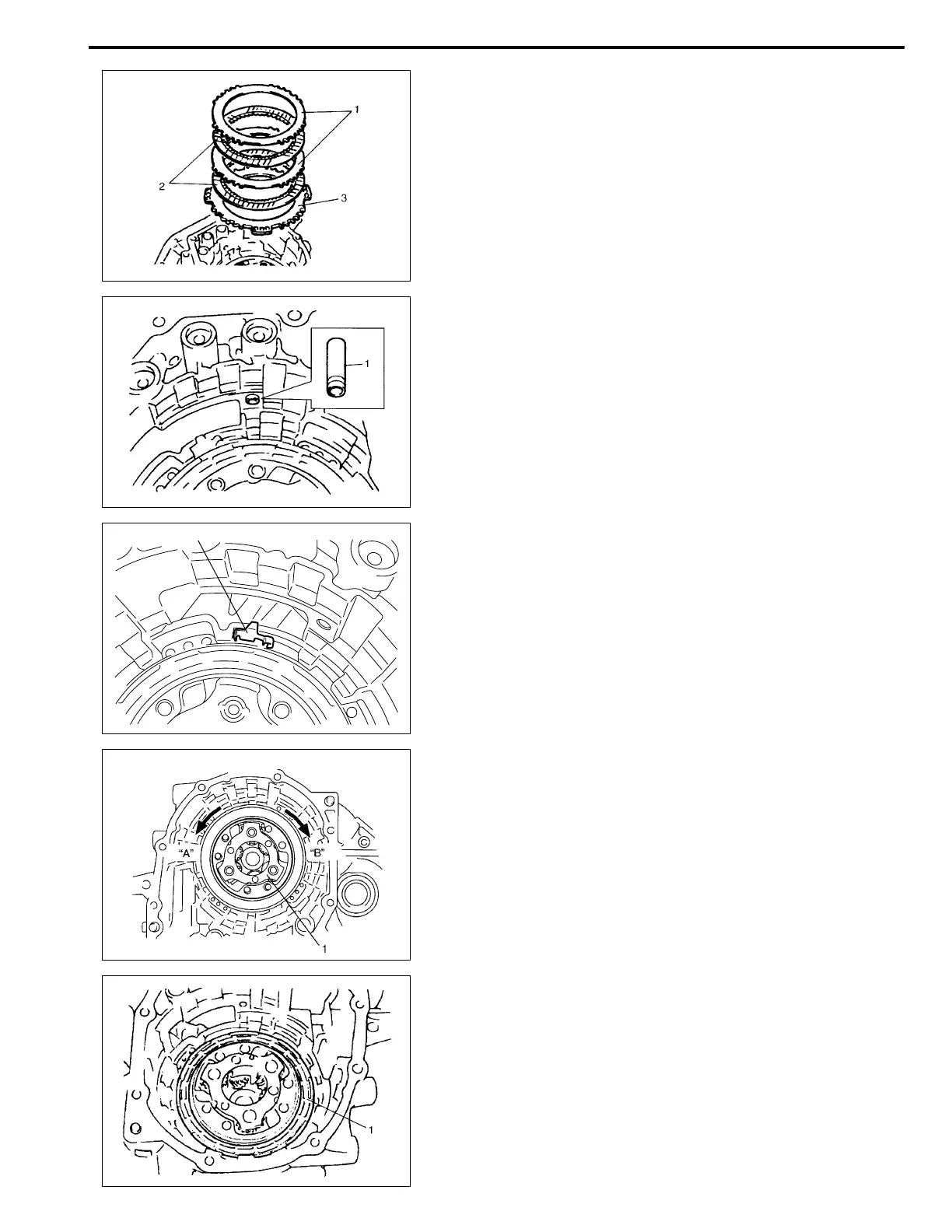

54) Remove 2nd brake separator plates (1) discs (2) and retain-
ing plate (3).
55) Remove brake drum gasket (1).
56) Remove one-way clutch outer race retainer (1).
57) Check one-way clutch No.2 as follows.
• Ensure planetary carrier (1) rotates only in counterclockwise
direction “A”, never in clockwise direction “B”.
• If the planetary carrier rotates both ways or does not rotate
either way, one-way clutch No.2 assembly will need to be
replaced with new one-way clutch No.2 assembly.
58) Remove one-way clutch No.2 assembly (1).
1
