AUTOMATIC TRANSAXLE (M13 ENGINE) 7B1-137

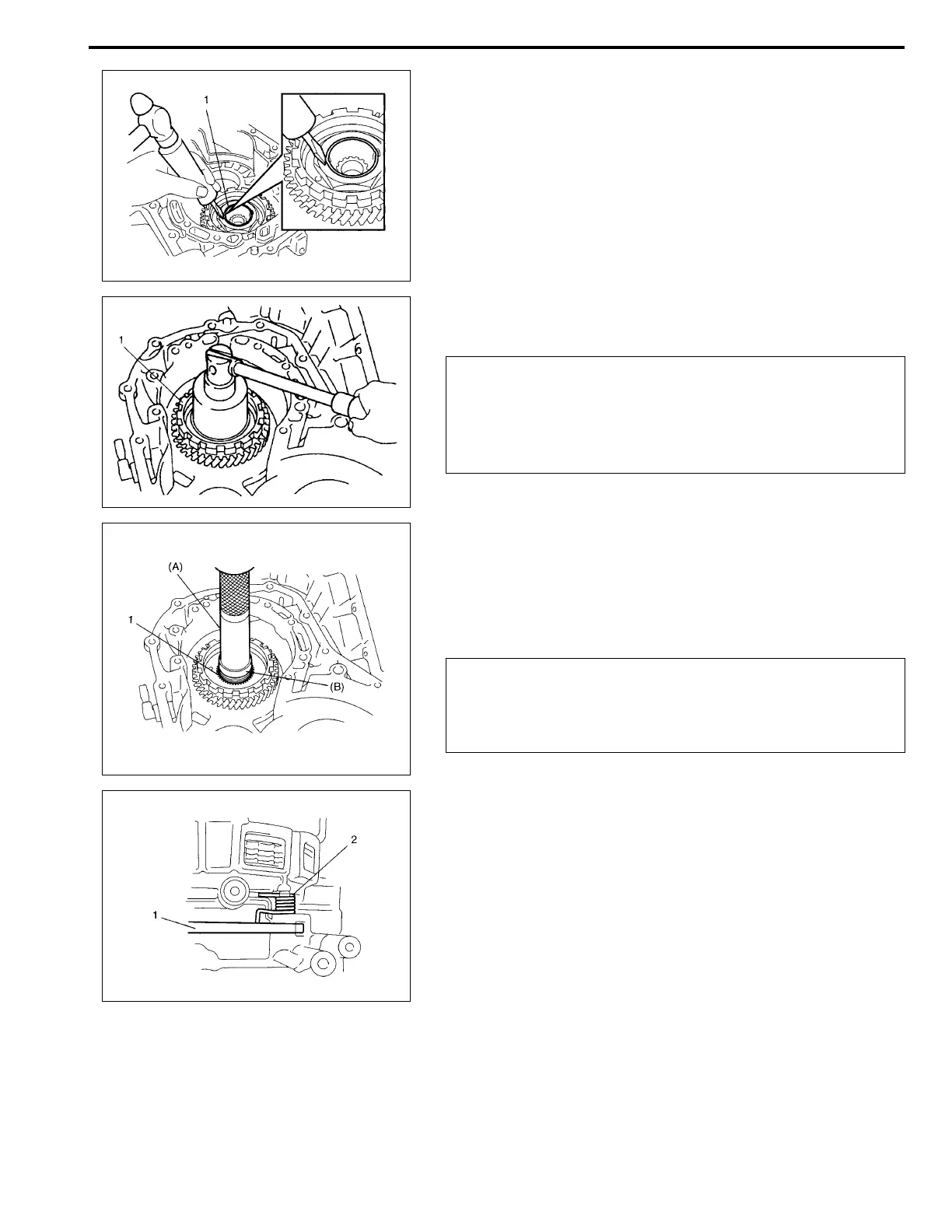

64) Turn over transaxle and uncaulk reduction drive gear nut (1).
65) Secure reduction drive gear (1) with parking lock pawl, then
remove reduction drive gear nut.
66) Using special tools and hydraulic press, remove planetary
ring gear subassembly (1).
Special tool
(A): 09913-84510
(B): 09923-78210
67) Remove parking lock pawl shaft, then spring (2) and parking
lock pawl (1).
CAUTION:
• It is recommended that this operation should be car-
ried out on rubber mat to prevent damaging transaxle
case.
• Never reuse removed nut.
CAUTION:
Do not reuse planetary ring gear subassembly. Otherwise
it may cause damage to planetary gear unit and/or reduc-
tion gears.
