7B1-142 AUTOMATIC TRANSAXLE (M13 ENGINE)

Oil pump assembly

Disassembly

1) Remove O-ring from pump body.

2) Remove 8 oil pump subassembly bolts (1) and stator shaft

assembly (2).

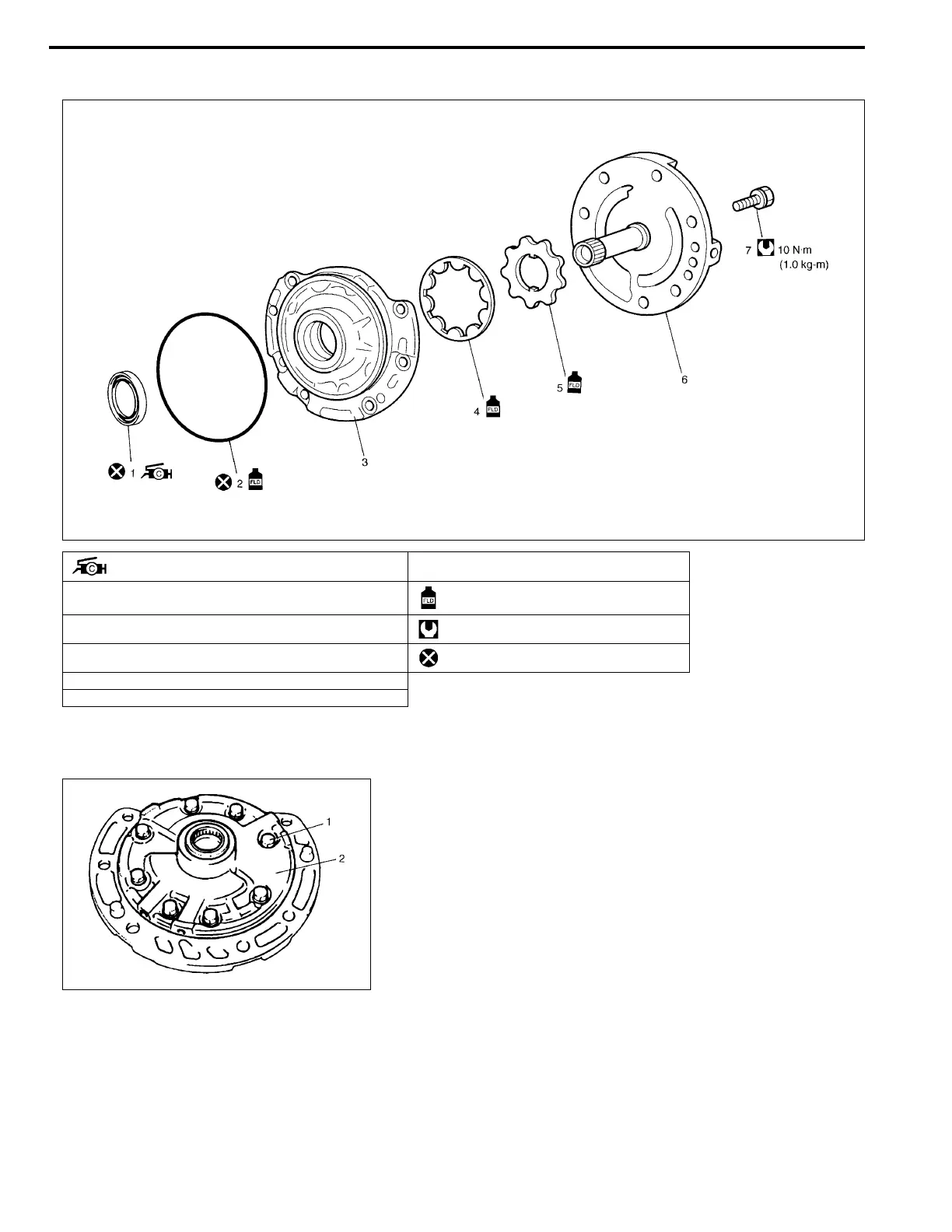

1. Oil seal

: Apply grease 99000-25030 to oil seal lip.

7. Oil pump subassembly bolts

2. O-ring Apply automatic transaxle fluid.

3. Oil pump body Tightening torque

4. Oil pump driven gear Do not reuse.

5. Oil pump drive gear

6. Stator shaft assembly
