7B1-176 AUTOMATIC TRANSAXLE (M13 ENGINE)

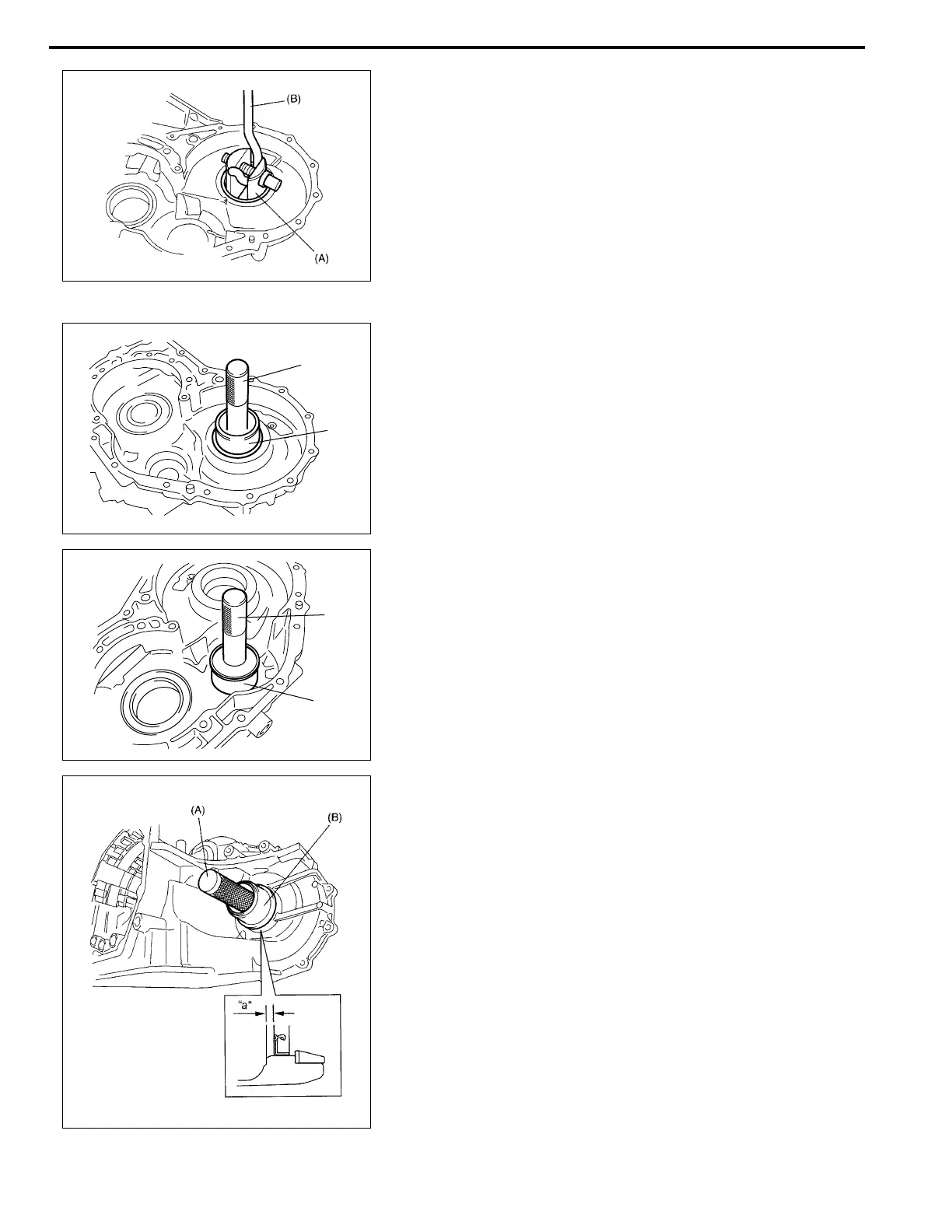

3) Remove differential side LH bearing cup and shim with spe-
cial tools.
Special tool
(A): 09944-96011
(B): 09942-15511
Assembly
1) Using special tools, assemble shim and differential side LH
bearing cup.
Special tool
(A): 09924-74510
(B): 09944-88220
2) Using special tools, assemble shim and countershaft LH
bearing cup.
Special tool
(A): 09924-74510
(B): 09944-88220
3) Install new differential side oil seal to transaxle case by using
special tools.
Special tool
(A): 09924-74510
(B): 09944-88220
Differential side oil seal installing depth
“a”: 3.8 – 4.8 mm (0.15 – 0.19 in.)
4) Apply grease to oil seal lip.
Grease 99000-25030
NOTE:
Use shim with same thickness as the removed one.
(B)
(A)
NOTE:
Use shim with same thickness as the removed one.
(B)
(A)
