AUTOMATIC TRANSAXLE (M13 ENGINE) 7B1-179

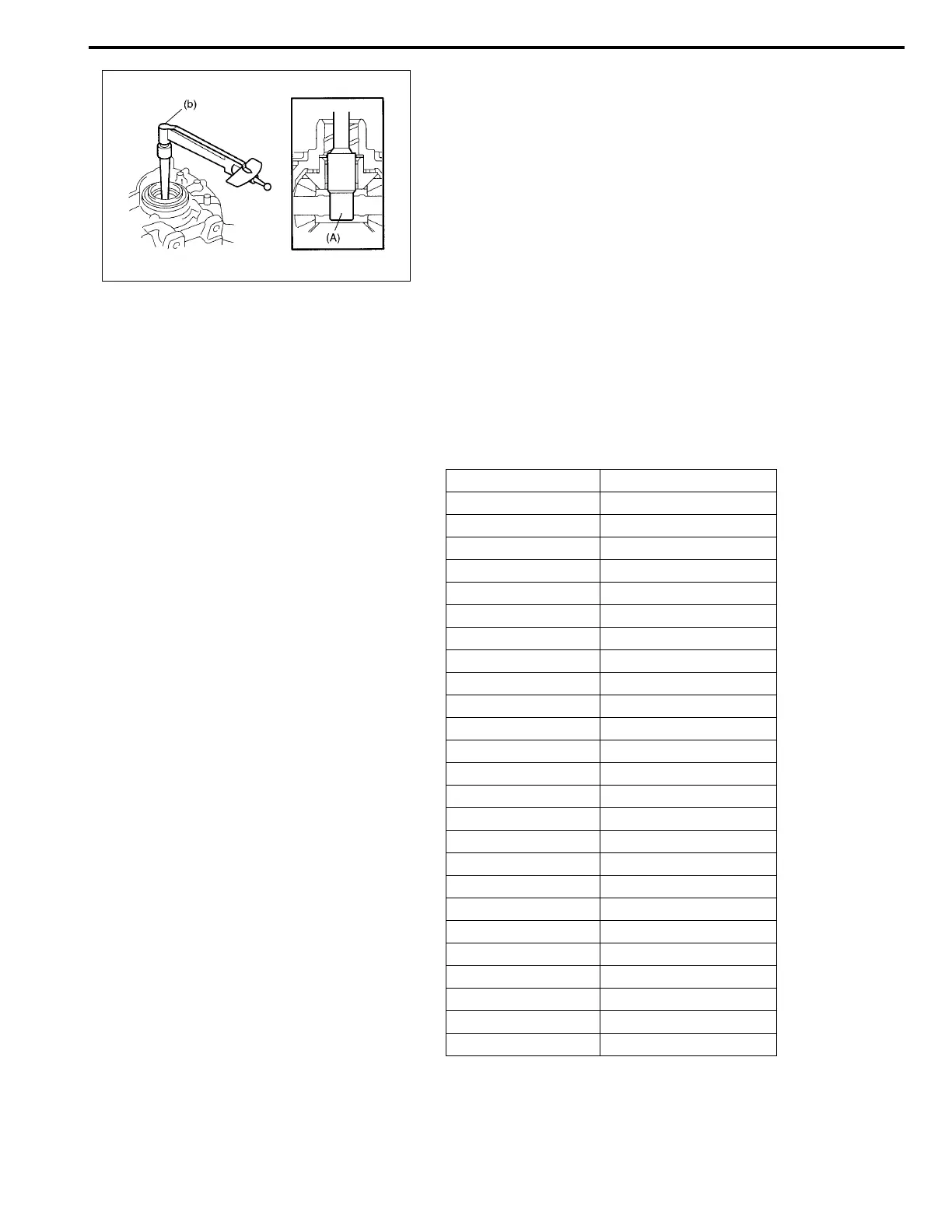

3) Measure bearing preload (b) by using special tool.
Special tool
(A): 09928-06050
Counter shaft bearing preload = (b) – Differential side bearing
preload (a)
Counter shaft bearing preload (Starting torque)
In the case of new bearing
0.33 – 0.76 N·m (3.3 – 7.6 kg-cm, 0.24 – 0.55 lb-ft)
In the case of reused bearing
0.17 – 0.38 N·m (1.7 – 3.8 kg-cm, 0.12 – 0.28 lb-ft)
4) If bearing preload is out of specification, select shim with
suitable thickness from among the list below and replace it.
Then adjust countershaft bearing preload within specifica-
tion.
Available shim thickness
5) Remove differential assembly and counter shaft assembly.
Thickness Identification mark
1.70 (0.066 in.) 1
1.75 (0.068 in.) 2
1.80 (0.070 in.) 3
1.85 (0.072 in.) 4
1.90 (0.074 in.) 5
1.93 (0.075 in.) 6
1.96 (0.077 in.) 7
1.99 (0.078 in.) A
2.02 (0.079 in.) B
2.05 (0.080 in.) C
2.08 (0.081 in.) D
2.11 (0.083 in.) E
2.14 (0.084 in.) F
2.17 (0.085 in.) G
2.20 (0.086 in.) H
2.25 (0.088 in.) K
2.30 (0.090 in.) L
2.35 (0.092 in.) M
2.40 (0.094 in.) N
2.45 (0.096 in.) P
2.50 (0.098 in.) Q
2.55 (0.100 in.) R
2.60 (0.102 in.) S
2.65 (0.104 in.) U
2.70 (0.106 in.) W
