7B1-188 AUTOMATIC TRANSAXLE (M13 ENGINE)

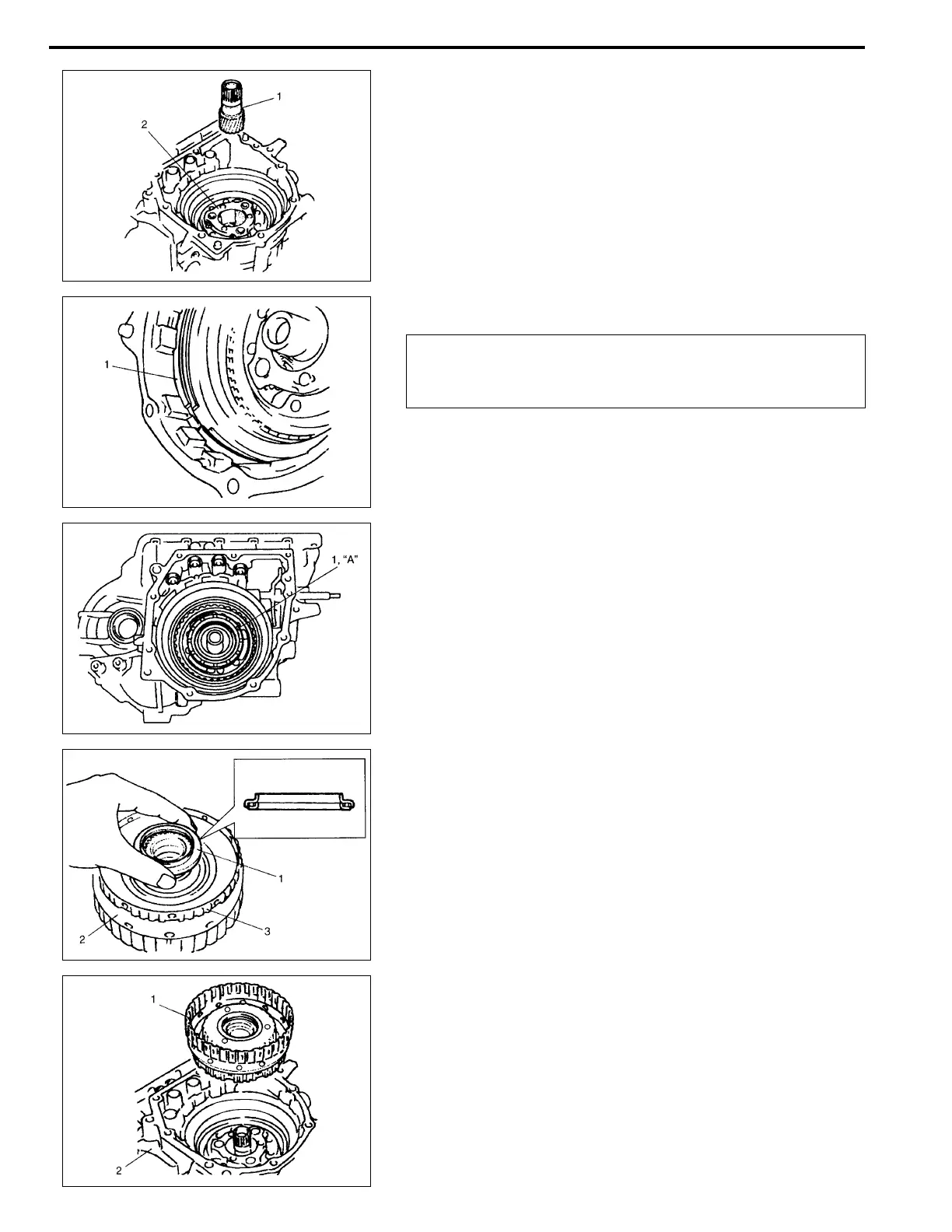

30) Apply A/T fluid to front planetary sun gear (1) and install it to
planetary gear assembly (2).
31) Install O/D and 2nd coast brake retaining plate snap ring (1).
32) After applying grease to slide contact face of planetary car-
rier thrust washer (1), install it to planetary gear assembly.
“A”: Grease 99000-25030
33) Apply A/T fluid to one-way clutch No.1 assembly (3) and
install one-way clutch No.1 assembly (3) to rear planetary
sun gear subassembly (2).
34) Apply A/T fluid to planetary gear thrust bearing (1), then
install it to one-way clutch No.1 assembly (3).
35) After applying A/T fluid to rear planetary sun gear subas-
sembly and one-way clutch No.1 assembly (1), install them
in transaxle case (2).
CAUTION:
Be sure to install O/D and 2nd coast brake retaining plate
snap ring correctly in groove of transaxle case.
