Suzuki Wagon R Plus RB310 - Page 792

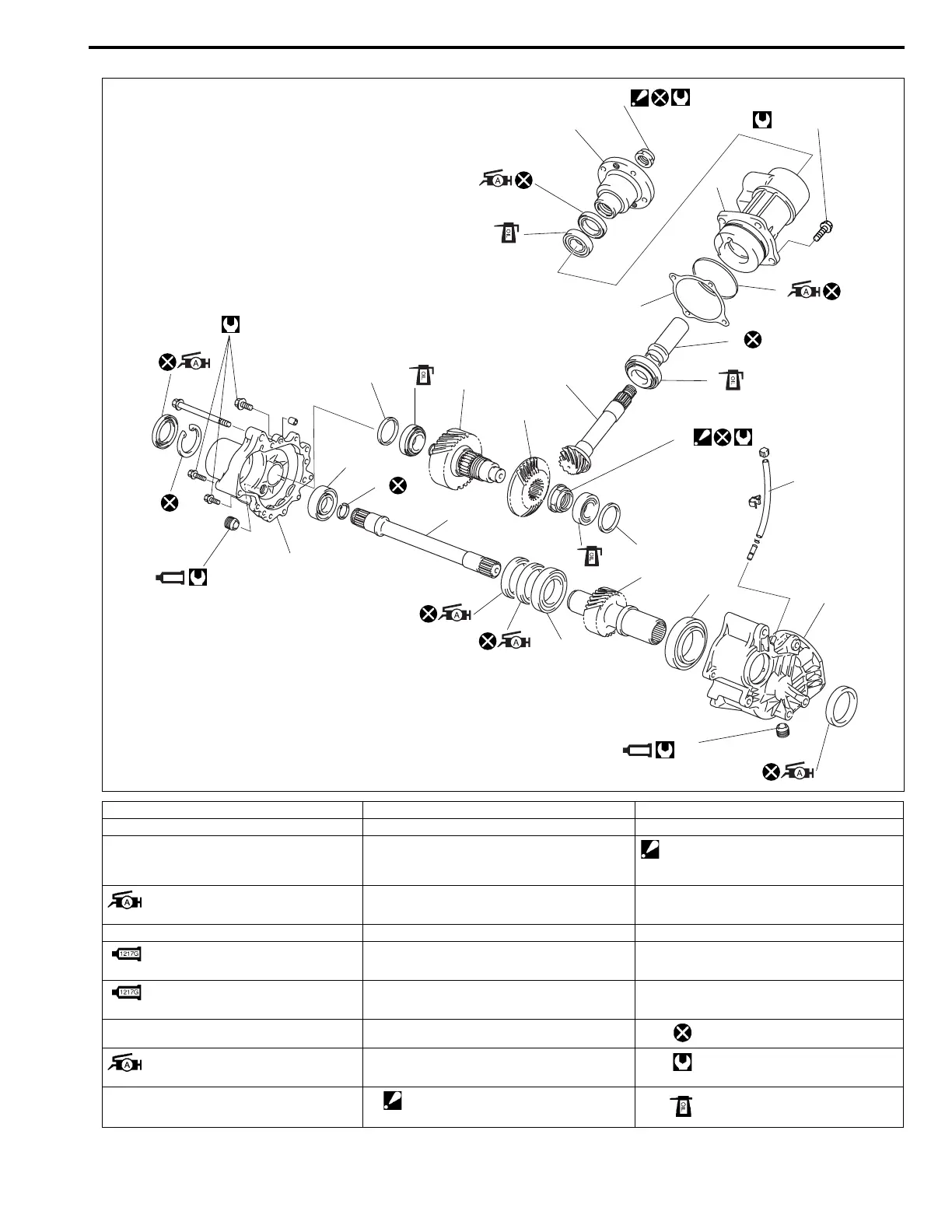

TRANSFER 7D-3
1. Transfer left case 11. Bevel gear shim 21. Driven gear bearing
2. Transfer right case 12. Bevel gear (Hypoid gear) 22. Reduction drive gear bearing
3. Transfer output retainer 13. Bevel pinion shaft (Hypoid gear) 23. Flange nut
: After tightening nut so as rotation torque
of bevel pinion shaft to be in specified
value, caulk nut securely.
4. O-ring
: Apply grease 99000-25010 to all
around surface.
14. Reduction driven gear 24. Intermediate right bearing
5. Bevel pinion shim 15. Flange 25. Transfer output retainer bolts
6. Transfer oil drain plug
: Apply sealant 99000-31260 to all
around thread part of drain plug.
16. Pinion shaft spacer 26. Transfer case bolt
7. Transfer oil level/Filler plug
: Apply sealant 99000-31260 to all
around thread part of level plug.
17. Reduction drive gear 27. Breather hose
8. Intermediate shaft 18. Snap ring Do not reuse.
9. Reduction drive gear oil seal
: Apply SUZUKI SUPER GREASE A
99000-25010 to oil seal lip.
19. Circlip Tightening torque
10. Pinion shaft bearing 20. Bevel gear nut
: After tightening nut to specified
torque, caulk nut securely.
Apply transfer oil.
25 50 N·m (5.0 kg-m)
23 100 - 300 N·m (10.0 - 30.0 kg-m)
20 150 N·m (15.0 kg-m)
16
10
21
21
10
13
12
3
5
4
9
15
11
1
22
17
9
18
9
9
19
22
8
24
2
26 23 N·m (2.3 kg-m)
9
11
14
7 21 N·m (2.1 kg-m)
1217G
6 21 N·m (2.1 kg-m)
1217G
27
